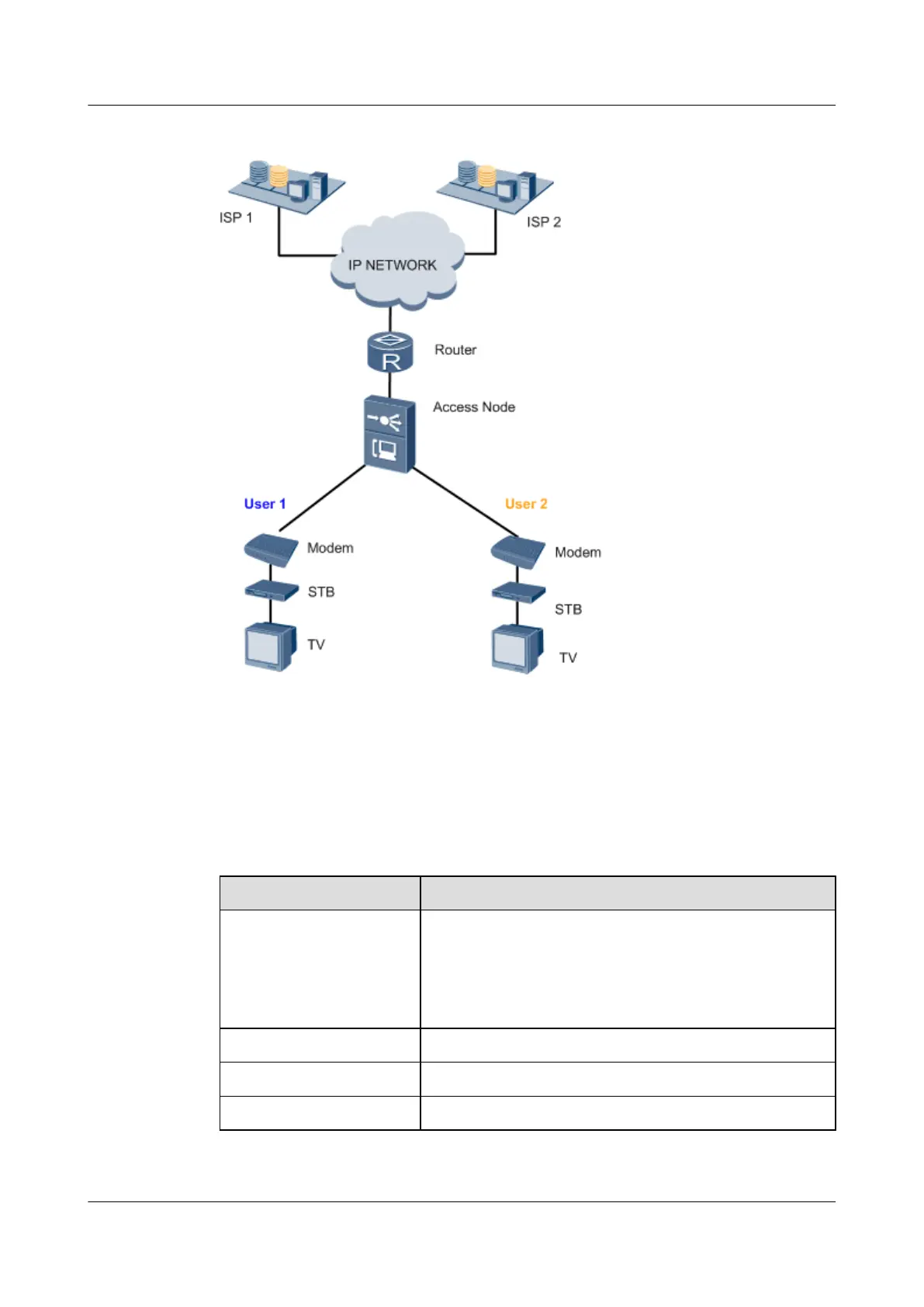

Figure 3-7 Example network of the multicast service

Data Plan

Table 3-1 lists the data plan for configuring the multicast video service with static program

configuration.

Table 3-1 Data plan for configuring the multicast video service with static program configuration

Item Data

Multicast VLAN Multicast domain of ISP 1: VLAN 10

Multicast domain of ISP 2: VLAN 20

NOTE

It is recommended that different multicast VLANs be planned for

different ISPs.

Multicast upstream port 0/19/0

Multicast mode IGMP proxy

Multicast protocol IGMPv3

SmartAX MA5600T/MA5603T/MA5608T Multi-service

Access Module

Commissioning and Configuration Guide 3 Configuring the DSLAM Services

Issue 01 (2014-04-30) Huawei Proprietary and Confidential

293
