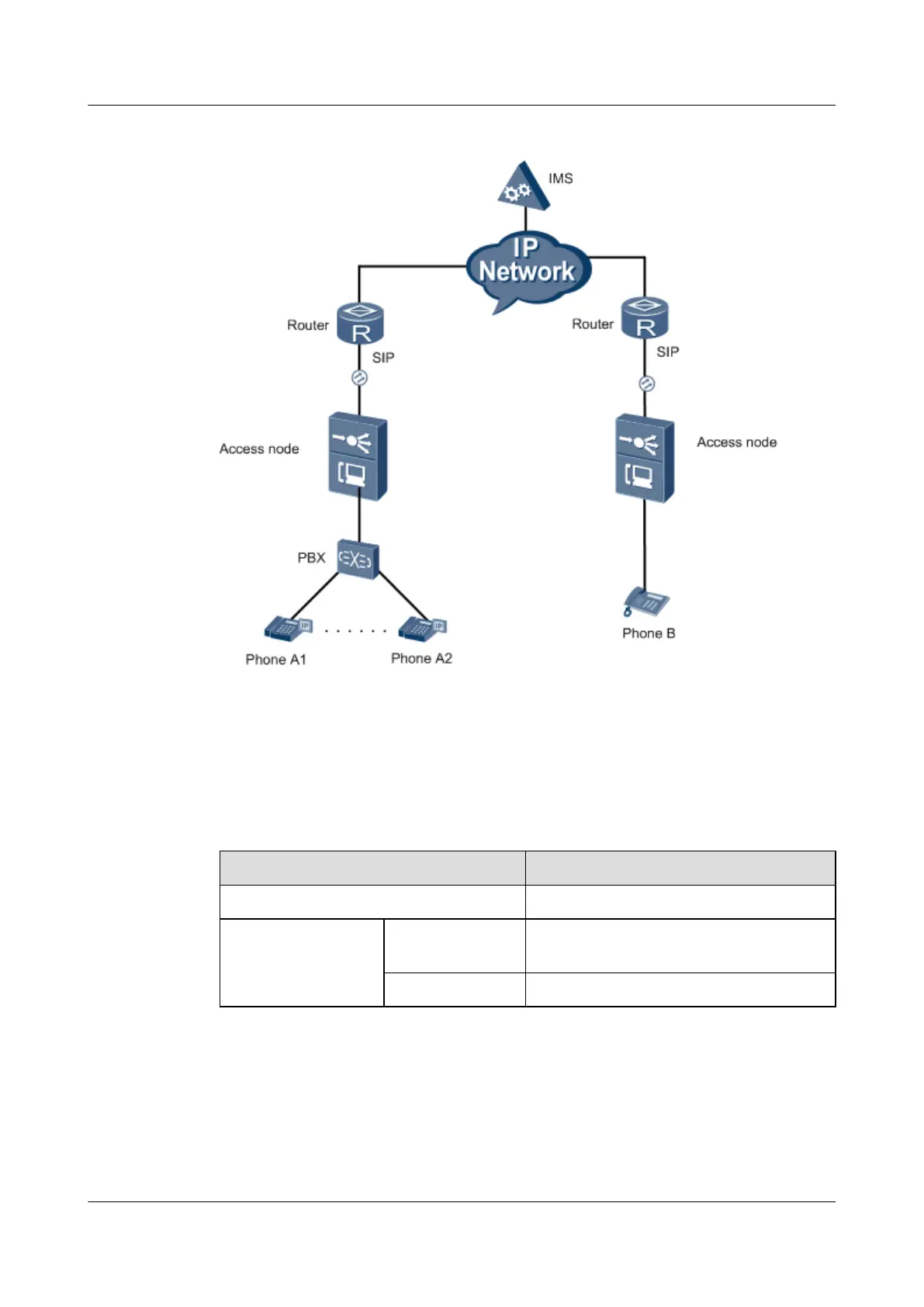

Figure 3-18 Example of the ISDN PRA service

Data Plan

Table 3-12 provides the data plan for configuring the ISDN PRA service.

Table 3-12 Data plan for configuring the ISDN PRA service

Item Data

MG interface ID 0

ISDN PRA port Subrack ID/Slot

ID/Port ID

0/2/0

Phone number 12345600

Procedure

Step 1 Configure the ISDN PRA user data.

huawei(config)#esl user

huawei(config-esl-user)#sipprauser add 0/2/0 0 telno 12345600

huawei(config-esl-user)#quit

SmartAX MA5600T/MA5603T/MA5608T Multi-service

Access Module

Commissioning and Configuration Guide

3 Configuring the DSLAM Services

Issue 01 (2014-04-30) Huawei Proprietary and Confidential

345
