– Remote port ID
Service Requirements
The service requirements are as follows:
l As shown in Figure 3-21, configure VAG1, and configure the users in slot 0/2 to belong
to VAG1; configure VAG2, and configure the users in slot 0/3 to belong to VAG2.
l The MG communicates with the MGC through the H.248 protocol.
l Configure the data plan of VAG1 as listed in Table 3-15.
l The data plan of VAG2 is the same as that of VAG1 except for the following differences:
– The media IP address and signaling IP address of VAG2 are 10.10.10.11.
– The MGC assigns phone numbers 85110000-85110031 to phones 0-31 of VAG2.
l MG0 indicates VAG1 in the figure, and MG1 indicates VAG2 in the figure.
Networking

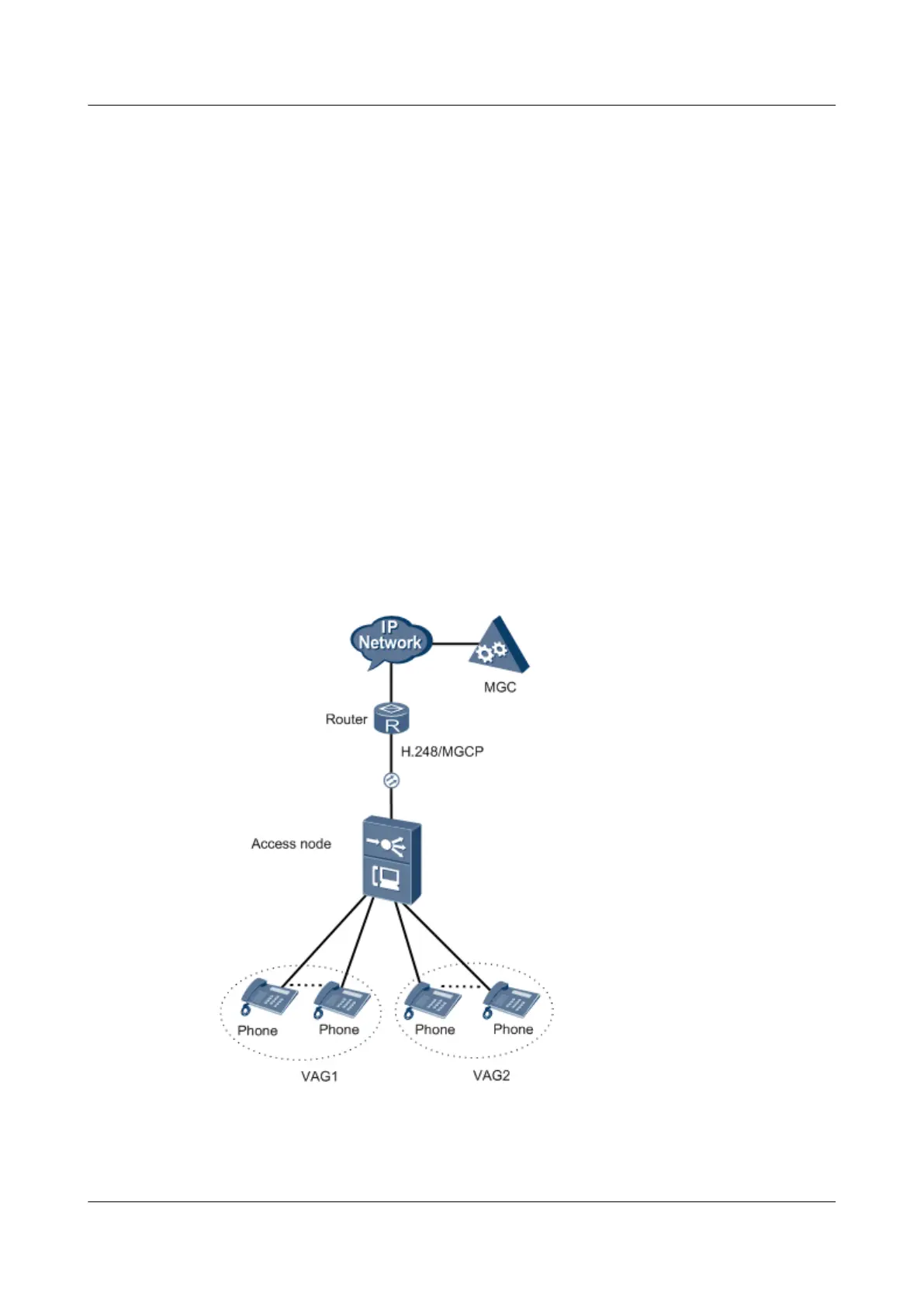

Figure 3-21 shows an example network of the VAG service.
Figure 3-21 Example network of the VAG service
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
3 Configuring the DSLAM Services
