l After receiving different traffic streams through the same PVC, the MA5600T/MA5603T/
MA5608T provides different QoS guarantees to the traffic streams according to the user-
side VLANs.
Networking
Figure 3-25 shows an example network of the triple play in the single PVC for multiple services
mode. The Internet service is accessed in the PPPoE mode. The VoIP service and the IPTV
service are provided in the DHCP mode, obtaining IP addresses from the DHCP server in the
standard DHCP mode.

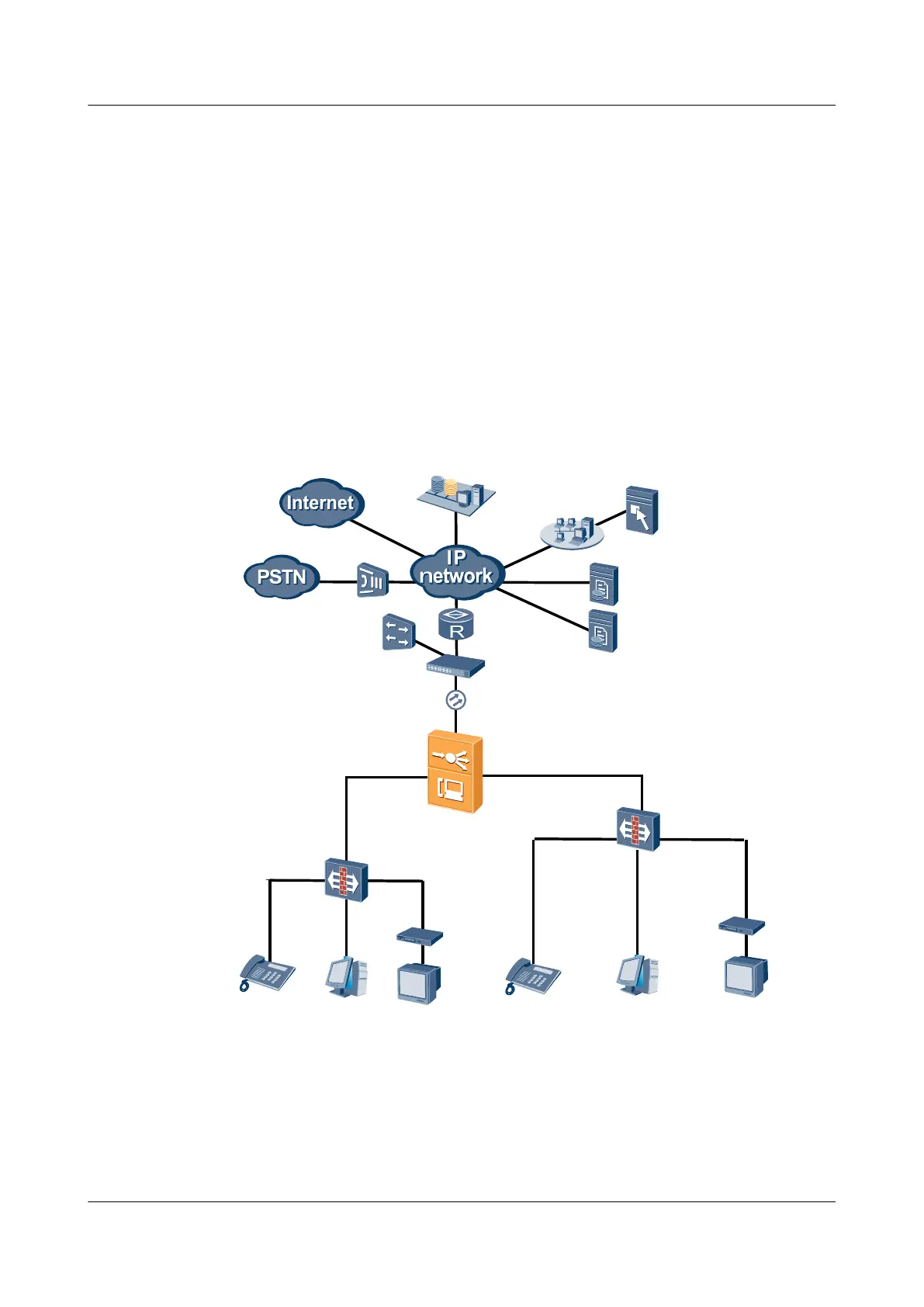

Figure 3-25 Example network of the triple play service in the single-PVC for multiple services
mode
Access node
TVPC
DHCPDHCP PPPoE
TVEphone PC
DHCPDHCP PPPoE
LSW
STB
STB
GW
IPTV DHCP
Server
BMS
OSS & RADIUS Server/RADIUS Proxy
BRAS
VoIP DHCP
Server
Ephone
Muticast source
Router
Home Gateway 2
Home Gateway 1
Program1:224.1.1.1
Program2:224.1.1.2
User 1
User 2
IP1:20.2.2.2
IP2:20.2.2.3
IP1:20.1.1.2
IP2:20.1.1.3
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
3 Configuring the DSLAM Services
