NOTE
l The parameters of the H.248-based voice interface must be consistent with the
corresponding configuration on the media gateway controller (MGC).
l If dual-homing is configured, Address of the Standby MGC must be configured.
l MID Format can be set to Domain Name, IP, or Device Name. If MID Format is set
to Domain Name or Device Name, the setting must be consistent with the corresponding
configuration on the MGC.
l MG Domain is ONT's domain name registered with the MGC. It is globally unique. MG
Domain in this example is ONT's password.
l If Media Port is empty, the parameter value is the same as Signaling Port. The media
streams are not isolated from signaling streams. If the upper-layer network requires
isolation of media streams from signaling streams, create different traffic streams for the
media streams and signaling streams on the OLT, create different WAN ports on the ONT,
and bind the created WAN ports to Media Port and Signaling Port. When the packet is
forwarded from two WAN ports, the configured VLAN is carried by default.
l When the ONT is interconnected with a third-party softswitch, check RTP TID Prefix,
Start Number of RTP TID, and Width of RTP TID Number.
c. Configure parameters for H.248-based voice users.
a. Choose Voice > VoIP Basic Configuration.

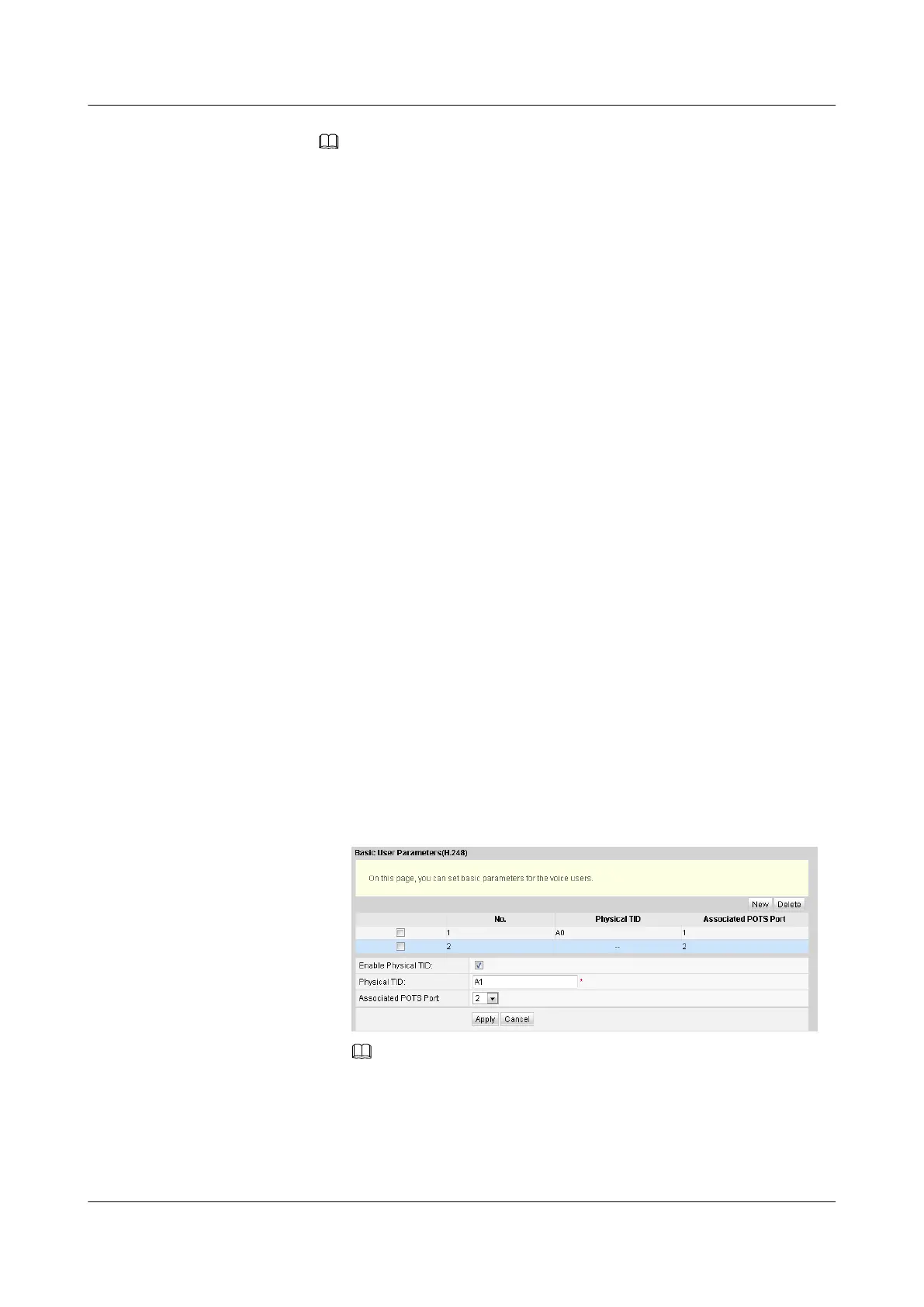

b. In the Basic User Parameters(H.248) window, set the parameters for user
1 as follows:
– Select Enable Physical TID.
– Set Physical TID to A0.
– Set Associated POTS Port to 1.
– Click Apply.
Click New to add voice user 2, and set the parameters for voice user 2 as
follows:
– Select Enable Physical TID.
– Set Physical TID to A1.
– Set Associated POTS Port to 2.
– Click Apply.
NOTE
l The terminal IDs A0 and A1 must be consistent with the corresponding configuration
on the MGC.
l If Associated POTS Port is 1, port TEL1 on the ONT is bound. If Associated POTS
Port is 2, port TEL2 on the ONT is bound.
d. Click Apply.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
9 FTTH Configuration
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
592
