b. On the General ONT VAS Profile tab page, right-click, and choose Add from
the shortcut menu.

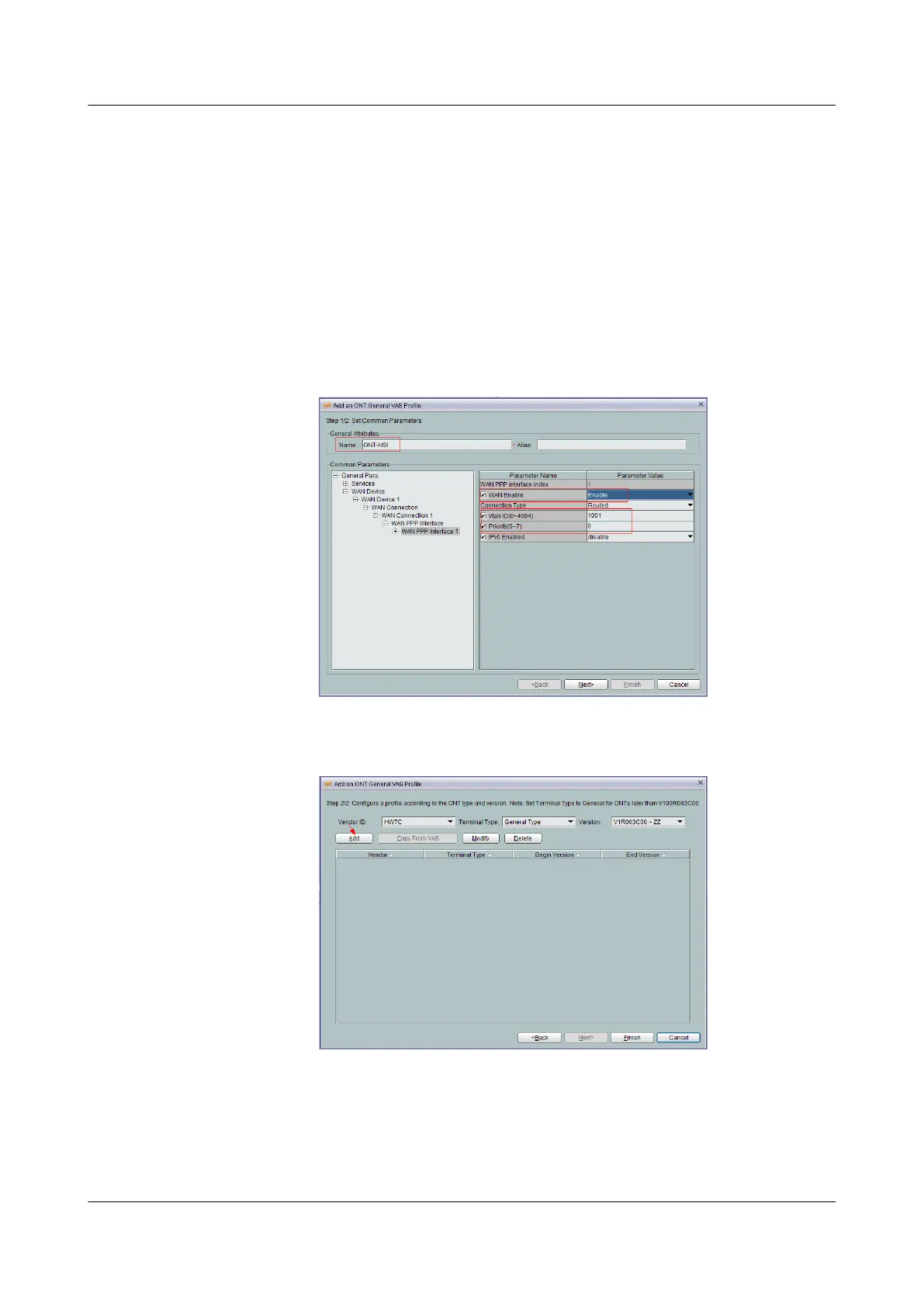

c. Choose General Para > WAN Device > WAN Device 1 > WAN Connection
from the navigation tree, right-click, and choose Add PPP Connection from the
shortcut menu. Choose the new WAN PPP Interface 1 and set parameters as
follows:
– WAN Enable: Enable
– Connection Type: Routed
– VLAN ID: 1001 (which should be the same as that configured on the OLT at
the user side)
– Priority: 0
d. Click Next.
e. In the dialog box that is displayed, set vendor ID to HWTC, Terminal Type to
General Type, and Version to V1R003C00-ZZ, click Add.
f. Configure a WAN port.
Choose General Type Config Info > WAN Device > WAN Device 1 > WAN
Connection > WAN Connection 1 > WAN PPP Interface > WAN PPP
Interface 1 and set parameters as follows:
– WAN Interface Name: ONT-HSI
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
9 FTTH Configuration
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
667
