maintenance Ethernet port but is not the IP address of the maintenance Ethernet port.
For example, configure the IP address to 10.11.104.6.
– After logging in to the MA5600T/MA5603T/MA5608T, run the ip address command
to change the IP address of the device to 10.50.1.10/24.
– Change the IP address of the PC to be on the same subnet as the IP address of the
maintenance Ethernet port but is not the IP address of the maintenance Ethernet port.
For example, change the IP address of the device to 10.50.1.11/24.
Networking
Figure 1-34 shows an example network for inband management through SSH in a LAN, and
Figure 1-35 shows an example network for inband management through SSH in a WAN.
NOTE
In this network, the SCUB control board (in slot 9 or 10) is used for upstream transmission, and the upstream
port is 0/9/0. Alternatively, the GIU upstream interface board (in slot 19 or 20) can be used for upstream
transmission. In this case, you need to run the electro-switch0 location-1 command to switch the electronic
switch to the GIU upstream interface board for upstream transmission. By default, the electronic switch is
in the location-0 state, which indicates the control board is used for upstream transmission.

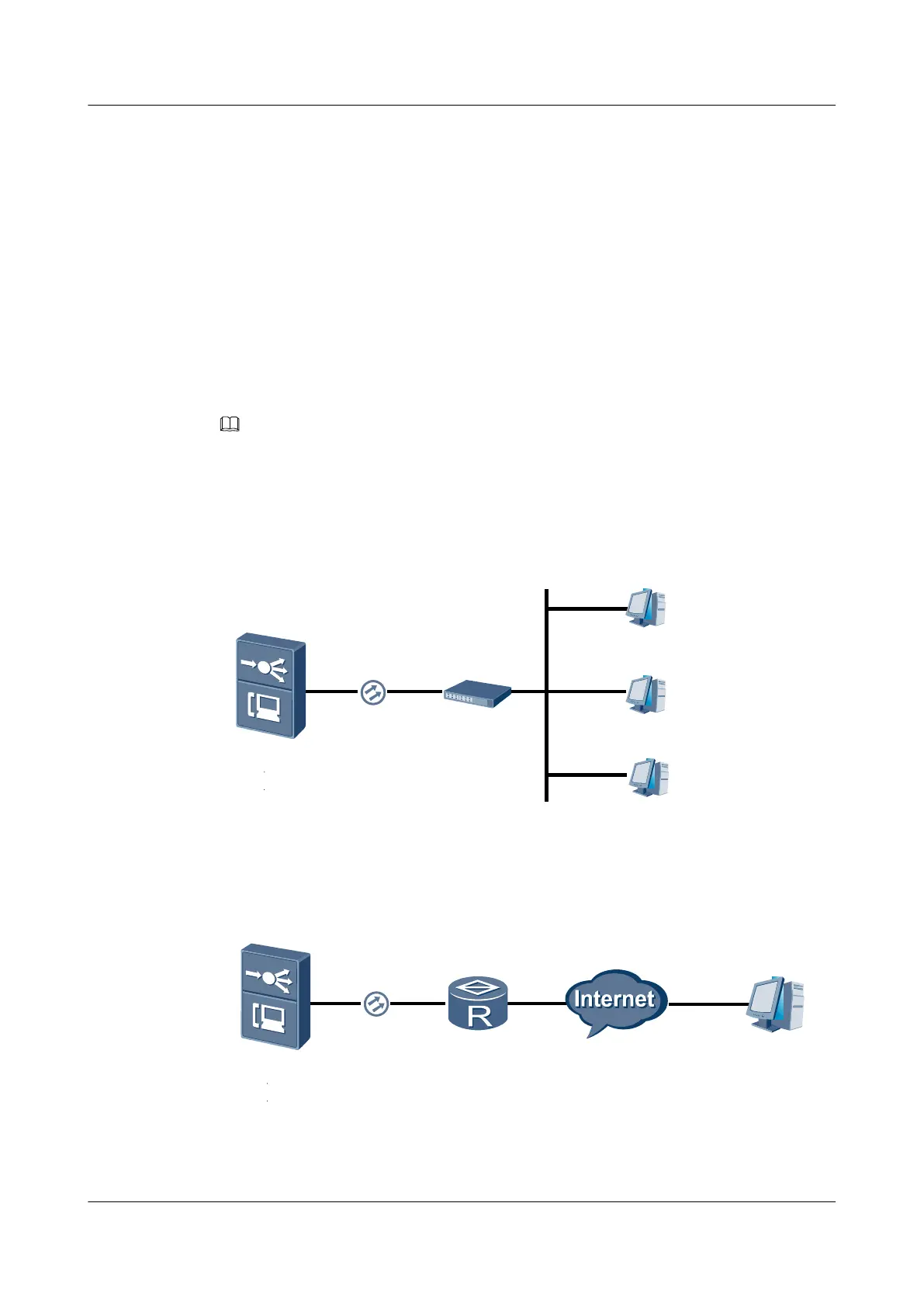

Figure 1-34 Example network for inband management through SSH in a LAN
Figure 1-35 Example network for inband management through SSH in a WAN
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
1 Commissioning
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
50
