78
Before the transport
To prepare the machine for transport, perform the following steps:
• Stop the machine by pressing the EMERGENCY STOP button
• Switch the key switch (if existing) to position "0" and remove the key from the key
switch
• Switch the main switch to position "0"
• Disconnect the connector from the switch-plug combination and set the cable aside
properly.
• Close the lid (if existing) and lock the closures (see chapter 10)
• (hydraulic or electric lid must be closed already before). Tipping device, if fitted, in
transport position!
• Disconnect the remote controls (if installed) from the machine and protect the plug
from moisture
Close the cover of the socket
Observe the load securing according to DIN 12195-1:2011 when transporting by road
vehicles!

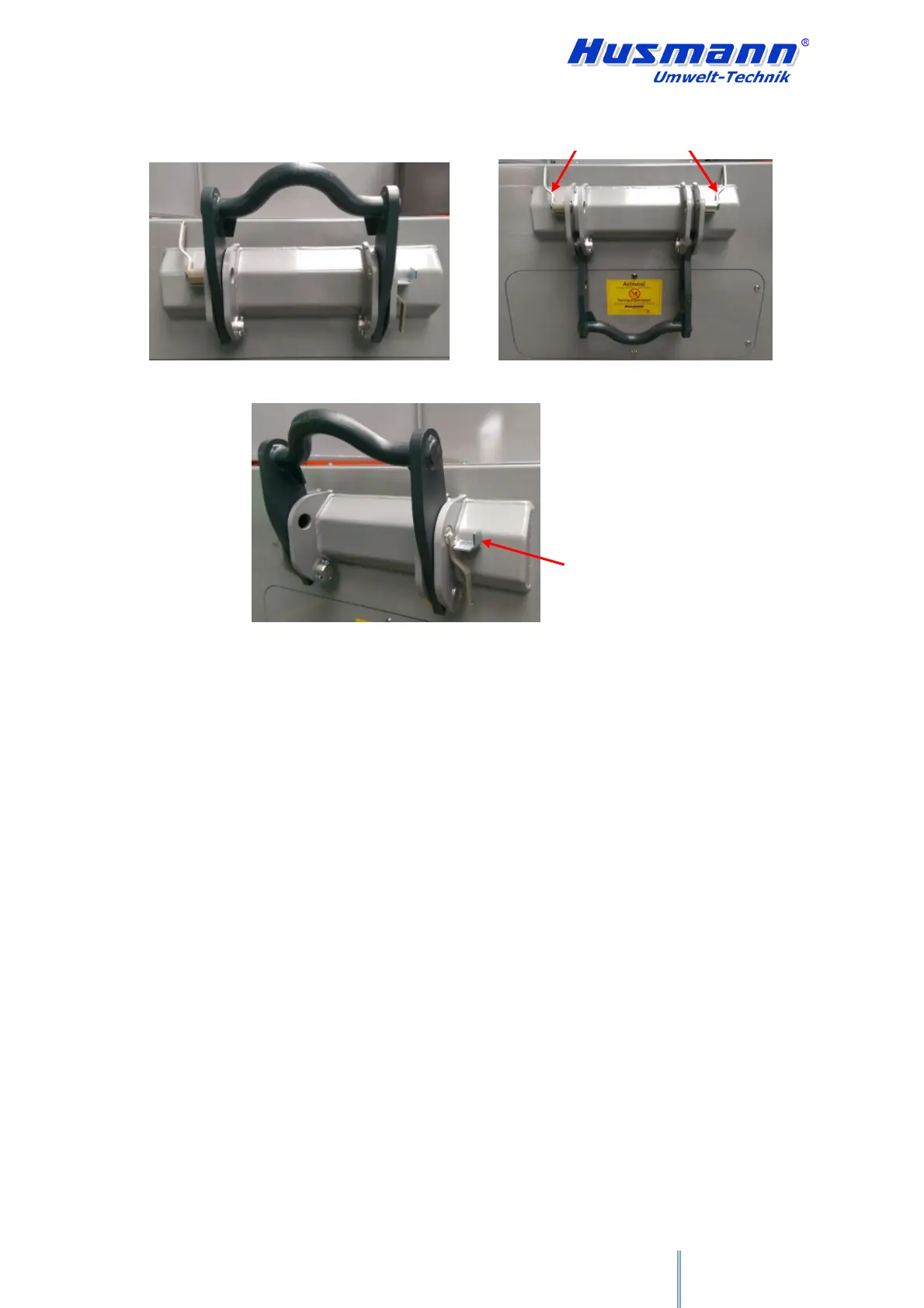

angle brackets
retaining pin pulled out to the stop
