Hypertherm Powermax 65 Service Manual

OperatiOn
4-6 powermax 65/85 Service Manual
Operating the Powermax65 or Powermax85
Follow the steps below to begin cutting or gouging with the Powermax65 or Powermax85.
Connect the electrical power, gas supply, and torch lead
For information on connecting the proper power cord with plug to the power supply, refer to Section 2, Power Supply
Setup.

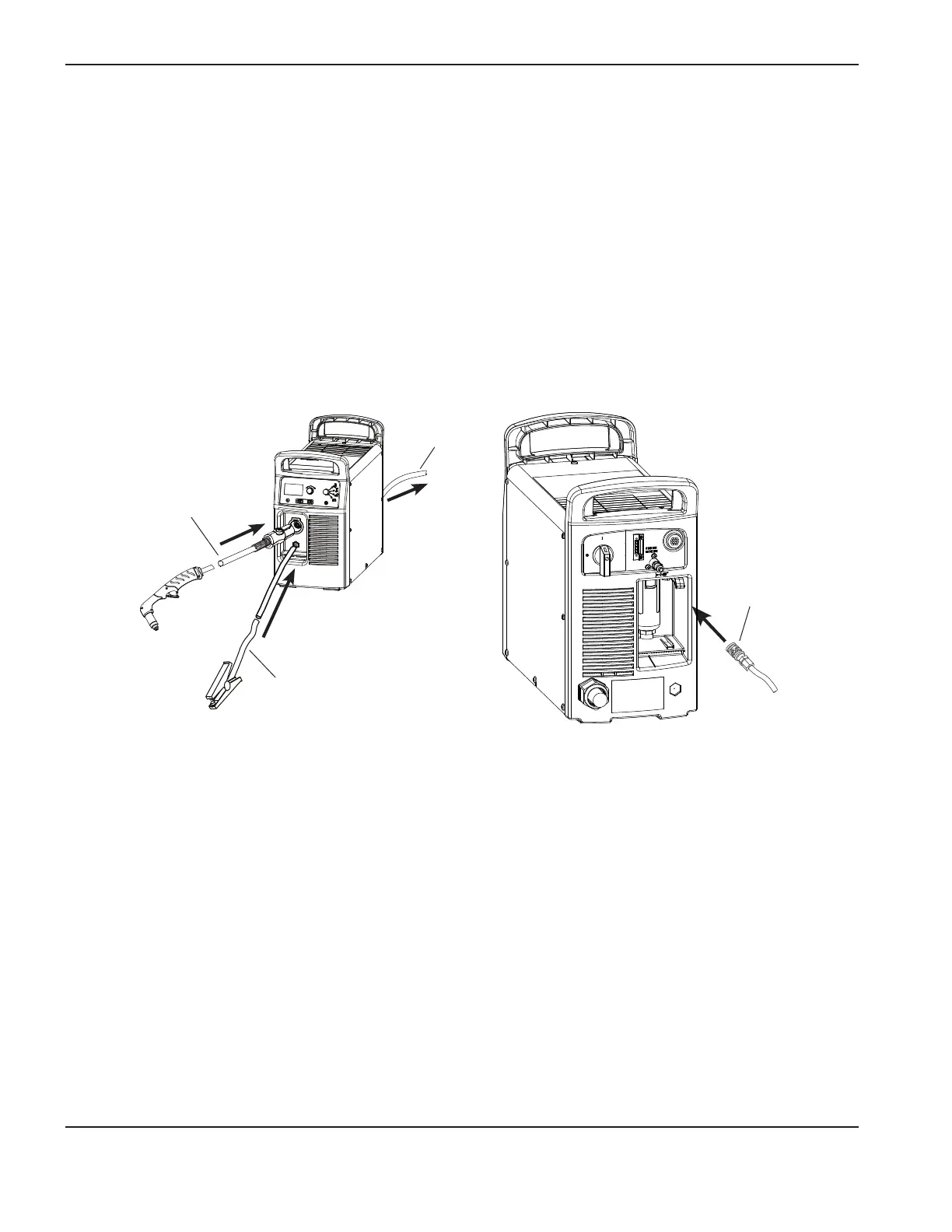

Plug in the power cord and connect the gas supply line. For more information about the electrical requirements and the
gas supply requirements of the Powermax65 and Powermax85, see Section 2, Power Supply Setup. To connect the
torch, push the FastConnect
TM
connector into the receptacle on the front of the power supply You will attach the work
lead in the next section.
Power cord with
appropriate plug
Work lead
Torch lead
Gas
supply line

Hypertherm Powermax 65 Specifications

General

Open Circuit Voltage (OCV)	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Maximum Cut Capacity (Mild Steel)	1" (25 mm)
Input Voltage	200-600 V, 1/3-PH, 50/60 Hz
Output Current	20 – 65 A
Duty Cycle	50% @ 65 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Torch Lead Length	25 ft (7.6 m)
Maximum Cut Capacity (Aluminum)	5/8" (16 mm)
Severance Cut Capacity (Mild Steel)	1-1/4" (32 mm)
Maximum Severance Thickness	1-1/4 in (32 mm)
Gas Type	Air/Nitrogen
Torch Options	Hand Torch, Mechanized Torch
