Component ReplaCement
6-4 powermax
65/85
Service Manual

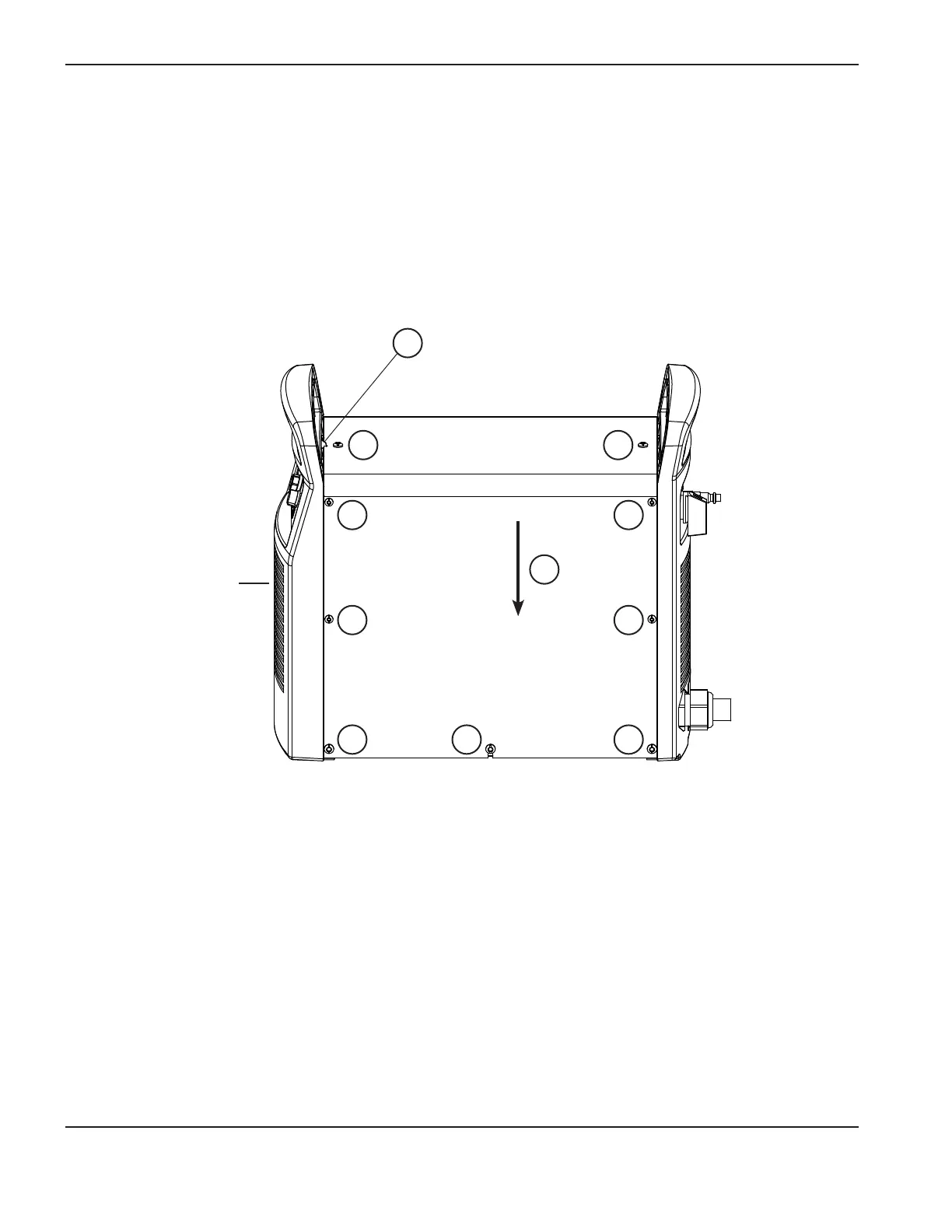

Replace the power supply cover
1. Place the cover (3) over the power supply with the slot in the cover (4) over the plastic tab in the front panel. The
slot and tab ensure that the vent in the side of the cover is over the fan. Be careful not to pinch any wires.
2. Using a T15 TORX or blade screwdriver, install the 8 small screws (2) into the power supply cover. Tighten the
screws to 15 in-lbs (17.3 kg cm).
3. Using a T20 TORX or blade screwdriver, install the 8 large screws (1) into the power supply cover. Tighten the
screws to 15 in-lbs (17.3 kg cm).
Front of
power supply
1
1 1
2
2
1
2
2
1
3
4

Table of Contents

Other manuals for Hypertherm Powermax 65

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Hypertherm Powermax 65 and is the answer not in the manual?

Hypertherm Powermax 65 Specifications

General IconGeneral
Open Circuit Voltage (OCV)300 VDC
Gas SupplyClean, dry, oil-free air or nitrogen
Maximum Cut Capacity (Mild Steel)1" (25 mm)
Input Voltage200-600 V, 1/3-PH, 50/60 Hz
Output Current20 – 65 A
Duty Cycle50% @ 65 A
Recommended Gas Inlet Flow Rate/Pressure6.7 scfm @ 85 psi
Torch Lead Length25 ft (7.6 m)
Maximum Cut Capacity (Aluminum)5/8" (16 mm)
Severance Cut Capacity (Mild Steel)1-1/4" (32 mm)
Maximum Severance Thickness1-1/4 in (32 mm)
Gas TypeAir/Nitrogen
Torch OptionsHand Torch, Mechanized Torch
