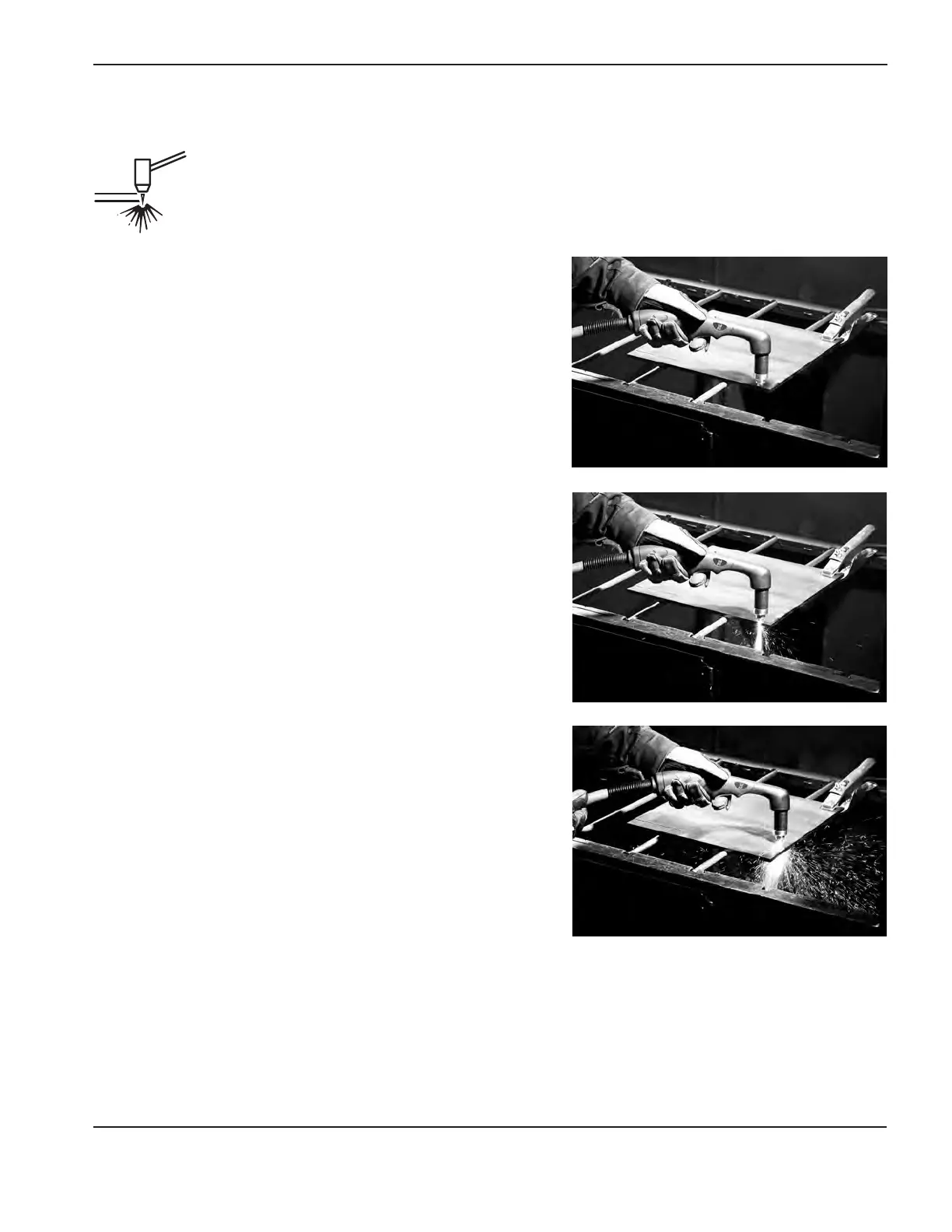

Start a cut from the edge of the workpiece
1. With the work clamp attached to the workpiece, hold the
torch nozzle perpendicular (90°) to the edge of the workpiece.
2. Press the torch’s trigger to start the arc. Pause at the edge
until the arc has cut completely through the workpiece.
3. Drag the torch tip lightly across the workpiece to proceed
with the cut. Maintain a steady, even pace.

Hypertherm Powermax 65 Specifications

General

Open Circuit Voltage (OCV)	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Maximum Cut Capacity (Mild Steel)	1" (25 mm)
Input Voltage	200-600 V, 1/3-PH, 50/60 Hz
Output Current	20 – 65 A
Duty Cycle	50% @ 65 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Torch Lead Length	25 ft (7.6 m)
Maximum Cut Capacity (Aluminum)	5/8" (16 mm)
Severance Cut Capacity (Mild Steel)	1-1/4" (32 mm)
Maximum Severance Thickness	1-1/4 in (32 mm)
Gas Type	Air/Nitrogen
Torch Options	Hand Torch, Mechanized Torch
