Hypertherm Powermax 65 Service Manual

TroubleshooTing and sysTem TesTs
powermax 65/85 Service Manual 5-3
Fault LED
(yellow)
Power ON LED
(green)
Status screen
Automatic/manual pressure
setting mode selector
Current/gas
selector
Operating
mode switchAdjustment knob

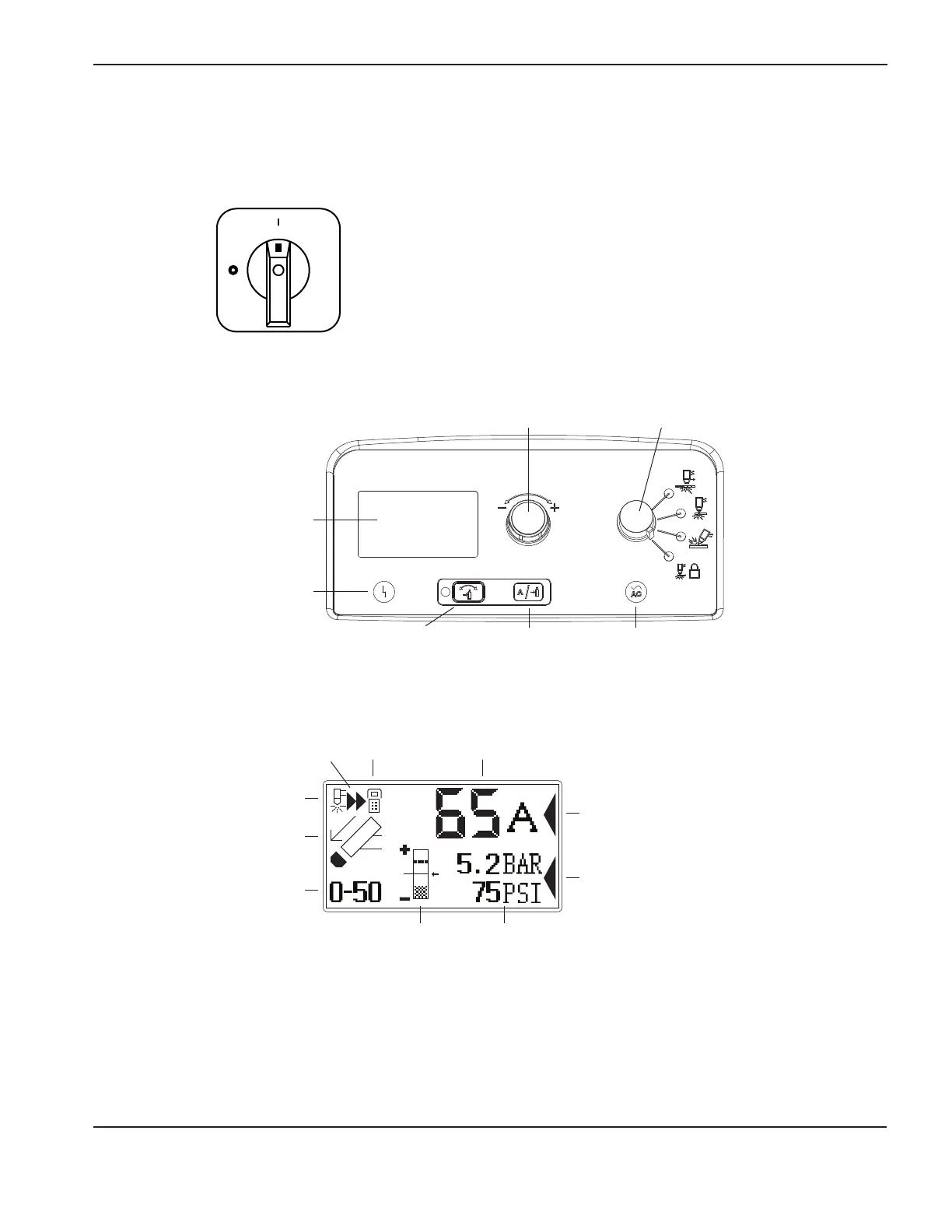

Controls and indicators
The Powermax65 and Powermax85 controls and indicators are described in Section 4, Operation. These figures are
included for reference.
ON (I)/OFF (O) power switch
Activates the power supply and its control circuits.
Torch started
Fault icon
Fault code
Arc is
transferred
Remote
connected
Current
setting
(amps)
Current selection cursor
Pressure selection cursor
Pressure
setting
Visual pressure
setting

Hypertherm Powermax 65 Specifications

General

Open Circuit Voltage (OCV)	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Maximum Cut Capacity (Mild Steel)	1" (25 mm)
Input Voltage	200-600 V, 1/3-PH, 50/60 Hz
Output Current	20 – 65 A
Duty Cycle	50% @ 65 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Torch Lead Length	25 ft (7.6 m)
Maximum Cut Capacity (Aluminum)	5/8" (16 mm)
Severance Cut Capacity (Mild Steel)	1-1/4" (32 mm)
Maximum Severance Thickness	1-1/4 in (32 mm)
Gas Type	Air/Nitrogen
Torch Options	Hand Torch, Mechanized Torch
