Hypertherm Powermax 65 Service Manual

Parts
powermax 65/85 Service Manual 7-5
WORK
LEAD
J13
J2
J1
J18J19
J27
J30
J23
J24
TP13
J29
TP11
TP12

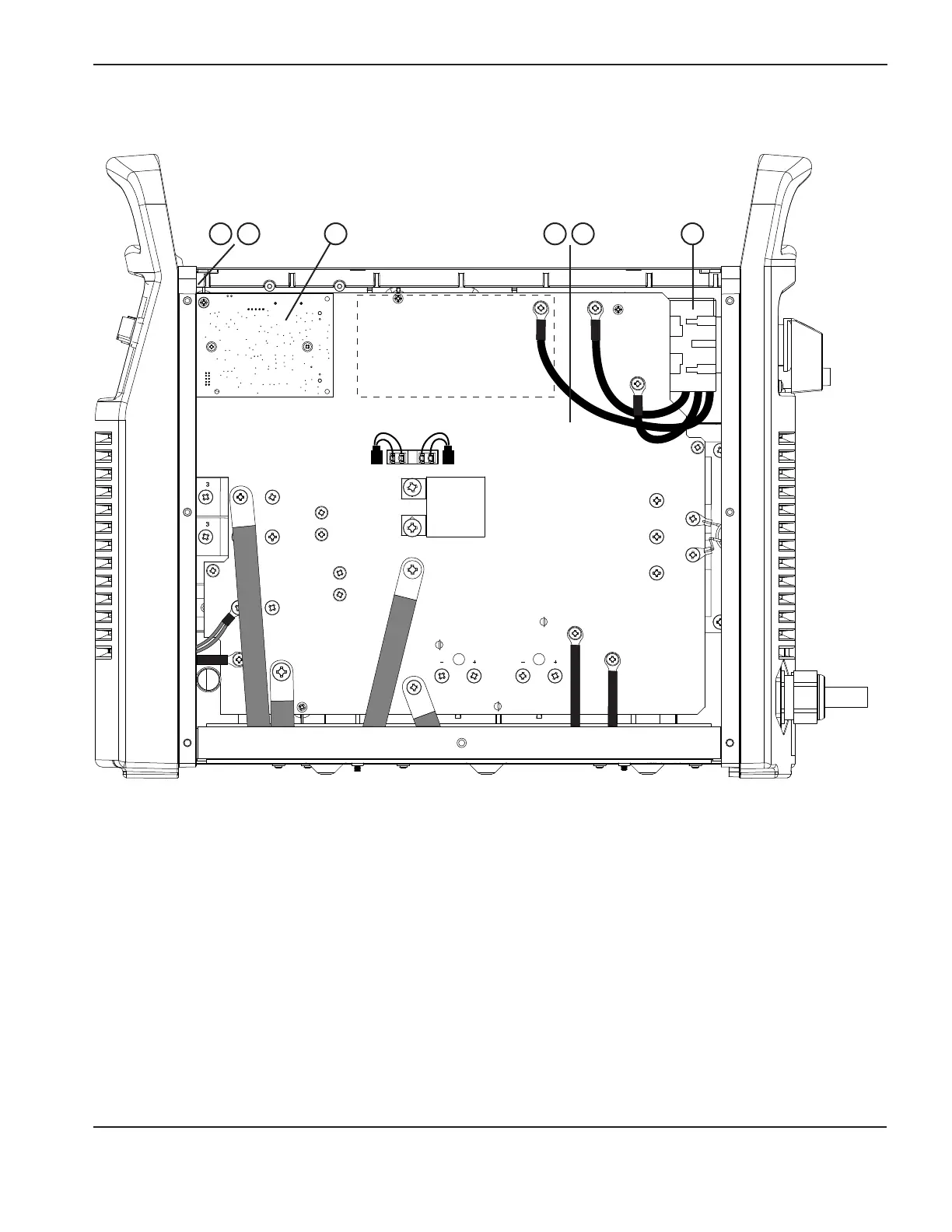

Interior, power board side (380/400V CE)
1
2
3
4
5
6
Item Part number Description
1 228657 Kit: Powermax65 control board
2 228658 Kit: Powermax85 control board
3 228656 Kit: Powermax65 and Powermax85 DSP board
4 228708 Kit: Powermax65 Power board CE
5 228672 Kit: Powermax85 Power board CE
6 228671 Kit: Powermax65 and Powermax85 CE Power Switch
228698 Kit: Powermax65 CE wire group
228677 Kit: Powermax85 CE wire group
228705 Kit: Powermax65 and Powermax85 Mylar barrier

Hypertherm Powermax 65 Specifications

General

Open Circuit Voltage (OCV)	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Maximum Cut Capacity (Mild Steel)	1" (25 mm)
Input Voltage	200-600 V, 1/3-PH, 50/60 Hz
Output Current	20 – 65 A
Duty Cycle	50% @ 65 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Torch Lead Length	25 ft (7.6 m)
Maximum Cut Capacity (Aluminum)	5/8" (16 mm)
Severance Cut Capacity (Mild Steel)	1-1/4" (32 mm)
Maximum Severance Thickness	1-1/4 in (32 mm)
Gas Type	Air/Nitrogen
Torch Options	Hand Torch, Mechanized Torch
