Test 6 – Torch stuck open (TSO)
Symptom: No fault occurs at power-up but an 0-30 fault displays on the operator screen when attempting to fire the
torch.
Confirm that all of the proper consumables are installed in the torch.
In an idle (no start signal) working system with the torch and consumables installed, there should be continuity between
the dual black wires connected to the center post of the pilot arc IGBT and the red wire connecting to J28. With gas
flowing through the torch (gas test mode 1) there should be very high resistance between those two points.
Note: To set the system to gas test mode, display the service screen (refer to page 5-21 Displaying the service
screen), move the cursor to “G” (gas), and use the adjustment knob to toggle to “1” (gas test mode).
WORK
LEAD
J26
J28
WORK
LEAD
J26
J28

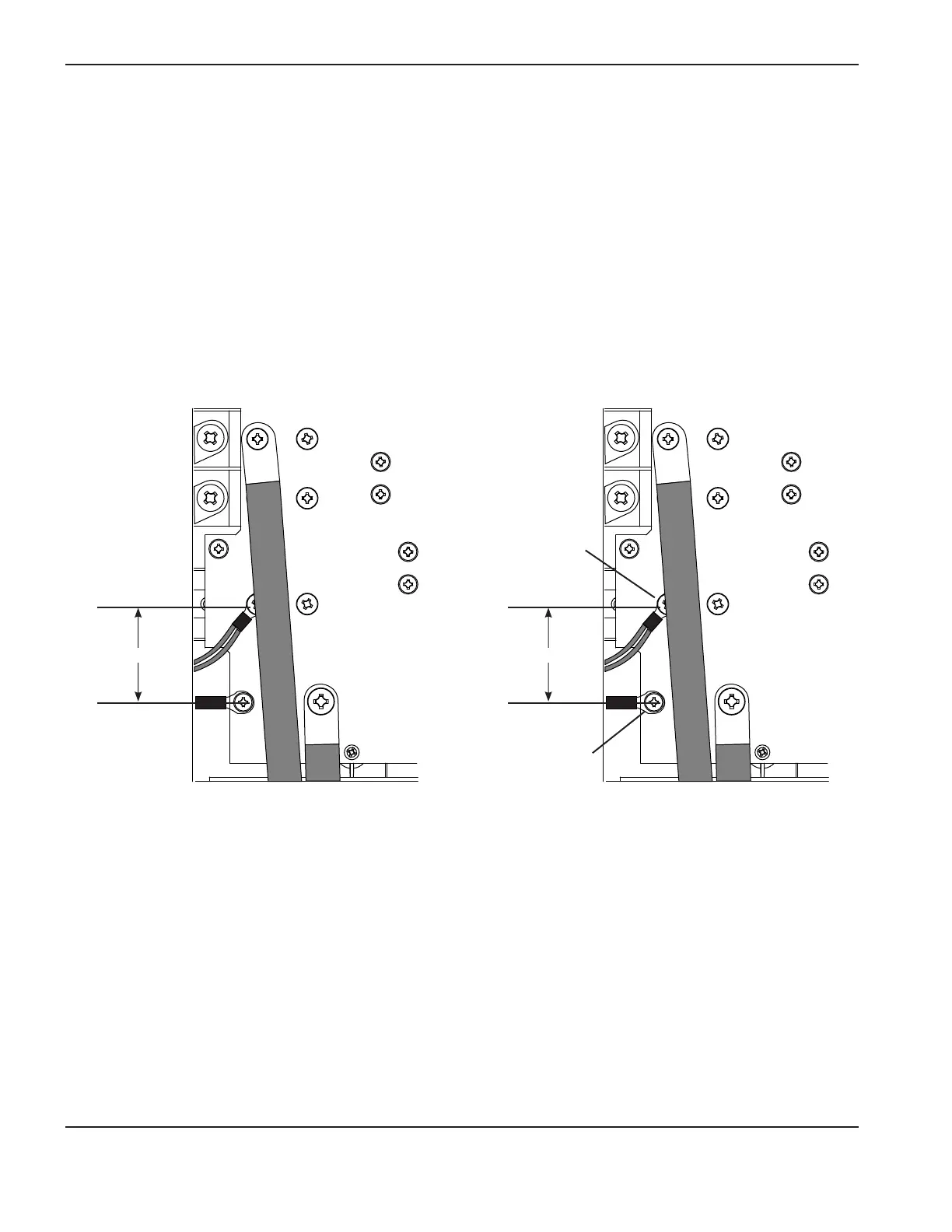

Gas test mode 0 Gas test mode 1
<5 Ω >10kΩ
Continuous with
the nozzle or torch
outer body
Continuous with
system negative

Hypertherm Powermax 65 Specifications

General

Open Circuit Voltage (OCV)	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Maximum Cut Capacity (Mild Steel)	1" (25 mm)
Input Voltage	200-600 V, 1/3-PH, 50/60 Hz
Output Current	20 – 65 A
Duty Cycle	50% @ 65 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Torch Lead Length	25 ft (7.6 m)
Maximum Cut Capacity (Aluminum)	5/8" (16 mm)
Severance Cut Capacity (Mild Steel)	1-1/4" (32 mm)
Maximum Severance Thickness	1-1/4 in (32 mm)
Gas Type	Air/Nitrogen
Torch Options	Hand Torch, Mechanized Torch
