Hypertherm Powermax 65 Service Manual

Parts
powermax 65/85 Service Manual 7-13

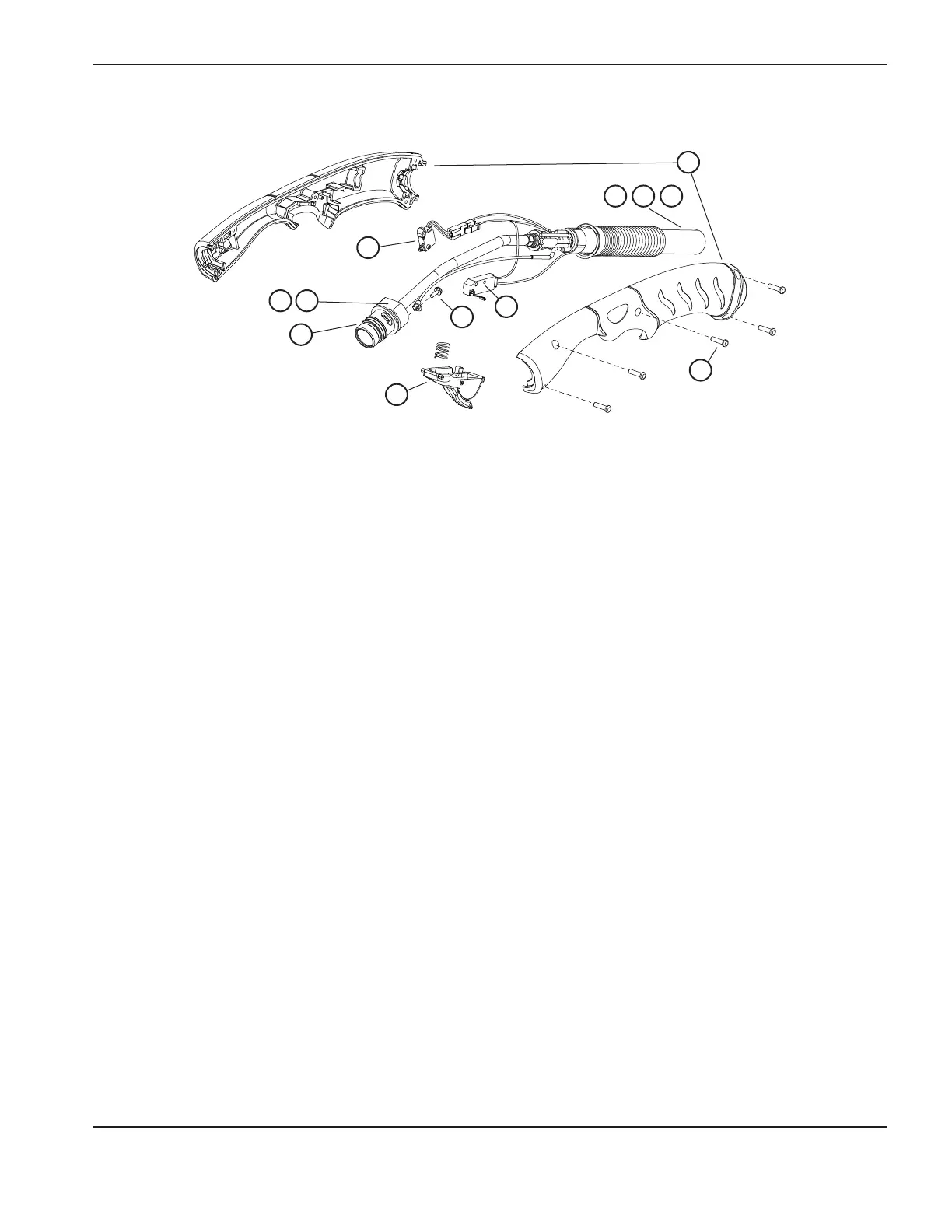

Duramax 15° hand torch replacement parts
1
2
3
4
5
6
7 8 9
11
The entire hand torch and lead assembly can be replaced, or individual component parts can be replaced. Part numbers
starting with 059 indicate complete torch and lead assemblies.
Item Part number Description
059470 Powermax65/85/105 15° hand torch assembly with 7.6m (25 ft) lead
059471 Powermax65/85/105 15° hand torch assembly with 15m (50 ft) lead
059472 Powermax65/85/105 15° hand torch assembly with 23m (75 ft) lead
1 228955 Kit: Duramax 15°/HRTs torch handle replacement
2 075714 Handle screws, #4 x 1/2 slotted TORX pan head, S/B
3 228721 Kit: Duramax 75°/15° hand torch safety trigger with spring replacement
4 058519 O-ring: VITON .673 X .063
5 075504 Pilot terminal screw: MSCR:4-40 X 5/16 SW CN SEM PH PAN S/Z
6 228109 Kit: Powermax30/45/65/85/105 15° hand torch/T30v/T45v/HRTs cap-sensor switch
replacement
7 228959 Kit: Duramax hand torch lead replacement, 7.6m (25 ft)
8 228960 Kit: Duramax hand torch lead replacement, 15m (50 ft)
9 228961 Kit: Duramax hand torch lead replacement, 23m (75 ft)
10 128642 Kit: Trigger start switch replacement
11 228715 Kit: Duramax 15° hand torch main body replacement (torches built before May 2012)
12 228957 Kit: Duramax 15° hand torch main body replacement (torches built after May 2012)
228314 Kit: Powermax45/65/85/105 torch quick disconnect repair (latch & spring)
10
12

Hypertherm Powermax 65 Specifications

General

Open Circuit Voltage (OCV)	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Maximum Cut Capacity (Mild Steel)	1" (25 mm)
Input Voltage	200-600 V, 1/3-PH, 50/60 Hz
Output Current	20 – 65 A
Duty Cycle	50% @ 65 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Torch Lead Length	25 ft (7.6 m)
Maximum Cut Capacity (Aluminum)	5/8" (16 mm)
Severance Cut Capacity (Mild Steel)	1-1/4" (32 mm)
Maximum Severance Thickness	1-1/4 in (32 mm)
Gas Type	Air/Nitrogen
Torch Options	Hand Torch, Mechanized Torch
