Hypertherm Powermax 65 Service Manual

Parts
7-8 powermax 65/85 Service Manual
Item Part number Description
1 228803 Kit: Powermax65 output diode bridge
2 228693 Kit: Powermax65 and Powermax85 5 Ω snubber resistor with thermal grease
3 228704 Kit: Powermax65 inverter IGBT with thermal grease
4 228742 Kit: Powermax65 CSA/CE, Powermax85 CE input diode bridge with thermal grease
5 228692 Kit: Powermax65 pilot arc IGBT with thermal grease
6 228706 Kit: Powermax65 and Powermax85 15 Ω snubber resistor with thermal grease
7 228693 Kit: Powermax65 and Powermax85 5 Ω snubber resistor with thermal grease
8 228707 Kit: Powermax65 PFC IGBT with thermal grease
9 228740 Kit: Powermax65 and Powermax85 damper resistor with thermal grease
127128 Thermal grease, T-grease 2500
TM
, 10cc
7

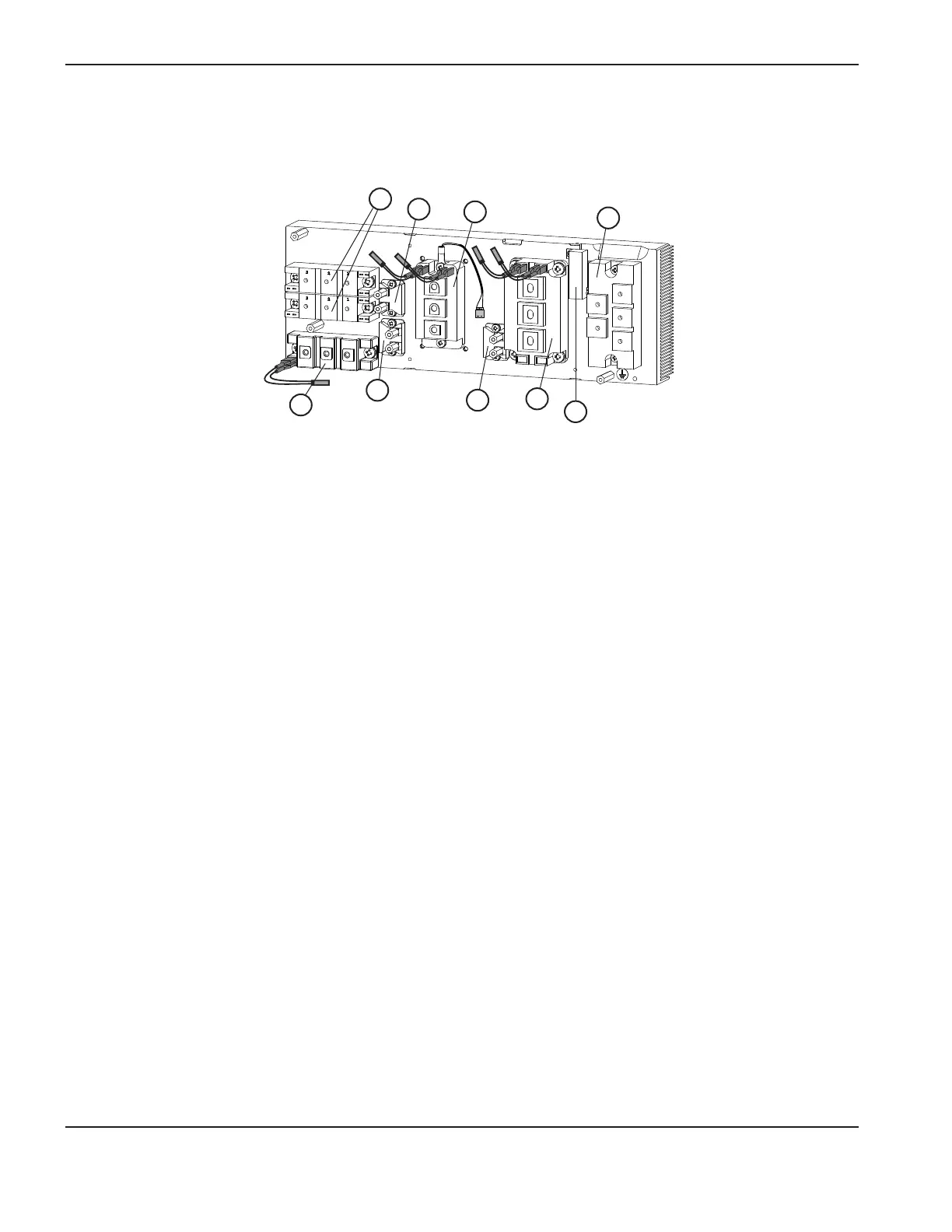

Heat sink assembly
65A CSA
1
2
3
4
5
6
8
9

Hypertherm Powermax 65 Specifications

General

Open Circuit Voltage (OCV)	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Maximum Cut Capacity (Mild Steel)	1" (25 mm)
Input Voltage	200-600 V, 1/3-PH, 50/60 Hz
Output Current	20 – 65 A
Duty Cycle	50% @ 65 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Torch Lead Length	25 ft (7.6 m)
Maximum Cut Capacity (Aluminum)	5/8" (16 mm)
Severance Cut Capacity (Mild Steel)	1-1/4" (32 mm)
Maximum Severance Thickness	1-1/4 in (32 mm)
Gas Type	Air/Nitrogen
Torch Options	Hand Torch, Mechanized Torch
