Hypertherm Powermax 65 Service Manual

Torch SeTup
3-12 powermax 65/85 Service Manual
6
5
A
4
5
A
6
5
A
4
5
A
Choose the machine torch consumables
Powermax systems with the Duramax 180° full-length machine torch or Duramax 180° mini machine torch are shipped
with a box of consumables. In addition, an ohmic-sensing retaining cap is available for use with shielded consumables.
With shielded consumables, the torch tip may touch the metal when cutting. With unshielded consumables, you must
keep the torch a small distance, about 2–3 mm (.08–.12 inch), away from the metal. Unshielded consumables
generally have a shorter life than shielded consumables. Depending upon which system you order, you may receive a
starter consumable kit with a standard retaining cap or ohmic retaining cap.
Both styles of machine torches use the same consumables.

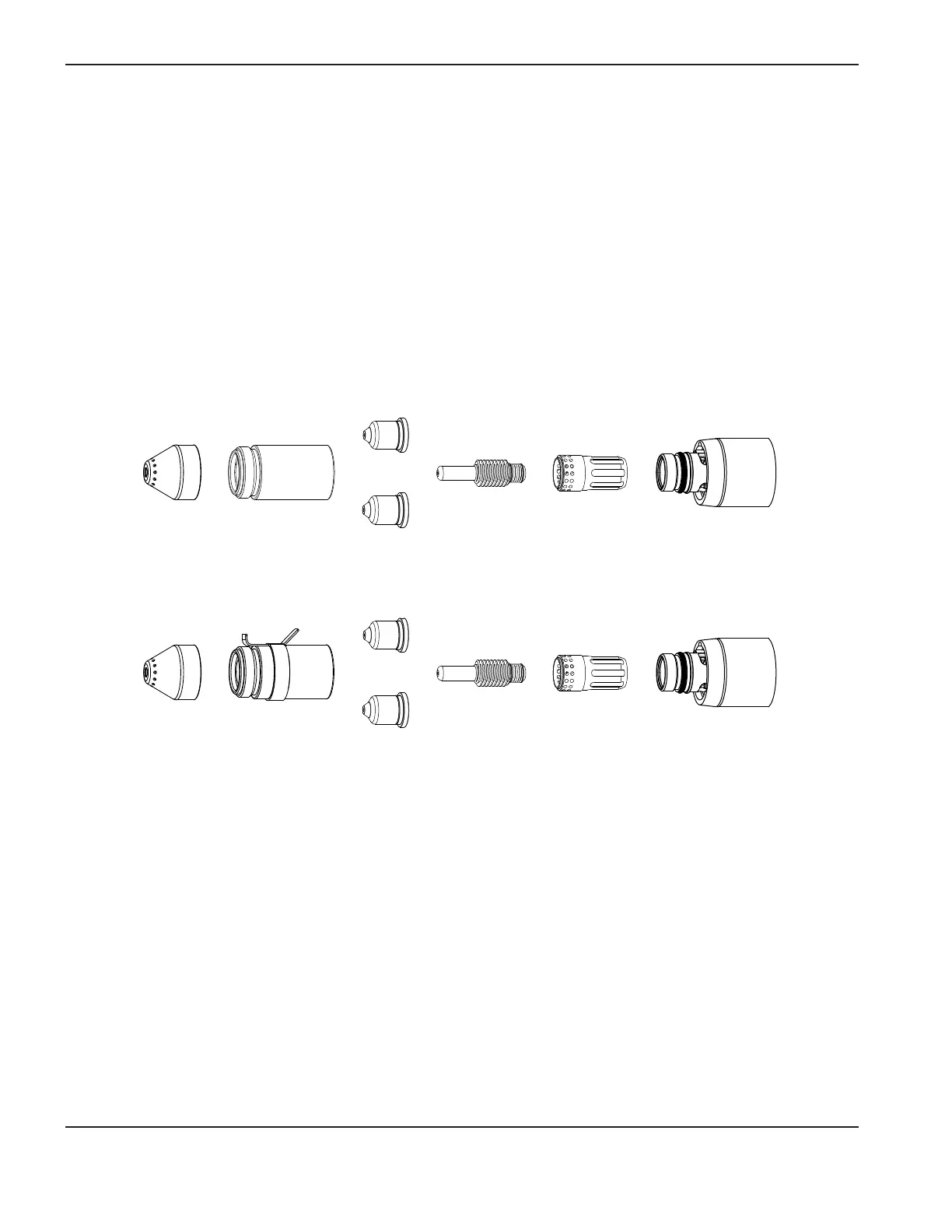

Machine torch consumables
Mechanized shielded consumables: Powermax65
220941
Nozzle
220941
Nozzle
Mechanized shielded with ohmic consumables: Powermax65
220817
Shield
220817
Shield
220854
Retaining cap
220819
Nozzle
220819
Nozzle
220857
Swirl ring
220857
Swirl ring
220842
Electrode
220842
Electrode
220953
Ohmic-sensing
retaining cap

Hypertherm Powermax 65 Specifications

General

Open Circuit Voltage (OCV)	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Maximum Cut Capacity (Mild Steel)	1" (25 mm)
Input Voltage	200-600 V, 1/3-PH, 50/60 Hz
Output Current	20 – 65 A
Duty Cycle	50% @ 65 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Torch Lead Length	25 ft (7.6 m)
Maximum Cut Capacity (Aluminum)	5/8" (16 mm)
Severance Cut Capacity (Mild Steel)	1-1/4" (32 mm)
Maximum Severance Thickness	1-1/4 in (32 mm)
Gas Type	Air/Nitrogen
Torch Options	Hand Torch, Mechanized Torch
