Hypertherm Powermax 65 Service Manual

TroubleshooTing and sysTem TesTs
5-46 powermax 65/85 Service Manual
Test 5 – Flyback circuit (DC minor voltages)
Symptom: Minor voltages are not present.
Note: Wear proper personal protective equipment (PPE) before testing powered equipment.
The flyback circuit is the source of the minor DC voltages in the power supply. It provides +3.3 VDC, +5 VDC, +24
VDC, and +48 VDC.
Check the voltages as described in the table. If a value is not within ±15%, perform the appropriate test later in this
section.
Volts DC Test points (use chassis for negative)
CSA units CE units
+48 J3 – Pin 1 J5 – Pin 1
+24 J1 – Pin 1 J3 – Pin 3
+5.0 J5 – Pin 3 J7 – Pin 3
+3.3 J11 – Pin 4 J14 – Pin 4

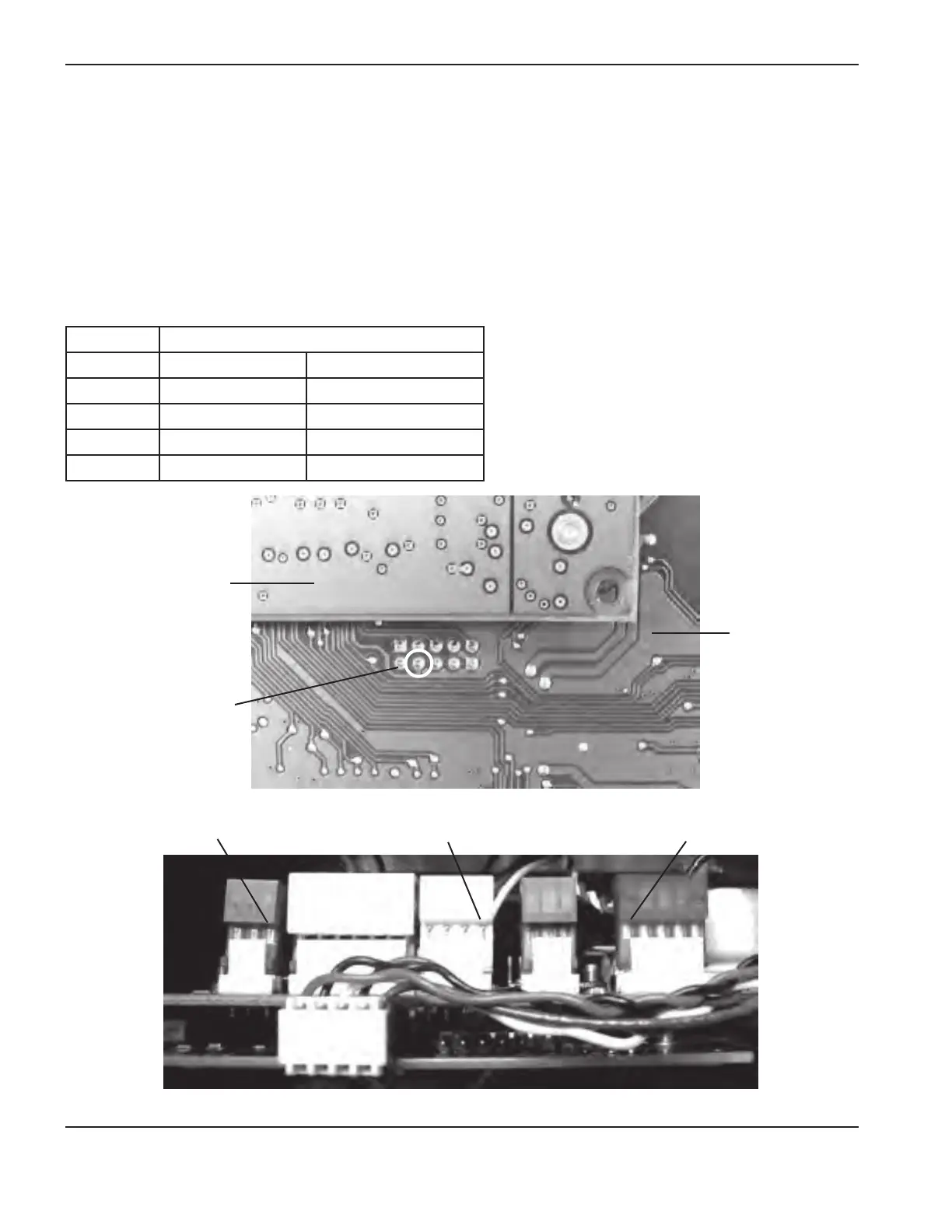

DSP board
J11 (CSA), J14 (CE)
Pin 4
J5 (CSA), J7 (CE)
Pin 3
Fan: J3 (CSA), J5 (CE)
Pin 4
Fan: J1 (CSA), J3 (CE)
Pin 1
Power board
Remove the connector covers to access the pins on the top-rear of the power board.

Hypertherm Powermax 65 Specifications

General

Open Circuit Voltage (OCV)	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Maximum Cut Capacity (Mild Steel)	1" (25 mm)
Input Voltage	200-600 V, 1/3-PH, 50/60 Hz
Output Current	20 – 65 A
Duty Cycle	50% @ 65 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Torch Lead Length	25 ft (7.6 m)
Maximum Cut Capacity (Aluminum)	5/8" (16 mm)
Severance Cut Capacity (Mild Steel)	1-1/4" (32 mm)
Maximum Severance Thickness	1-1/4 in (32 mm)
Gas Type	Air/Nitrogen
Torch Options	Hand Torch, Mechanized Torch
