Hypertherm Powermax 65 Service Manual

Parts
7-4 powermax 65/85 Service Manual

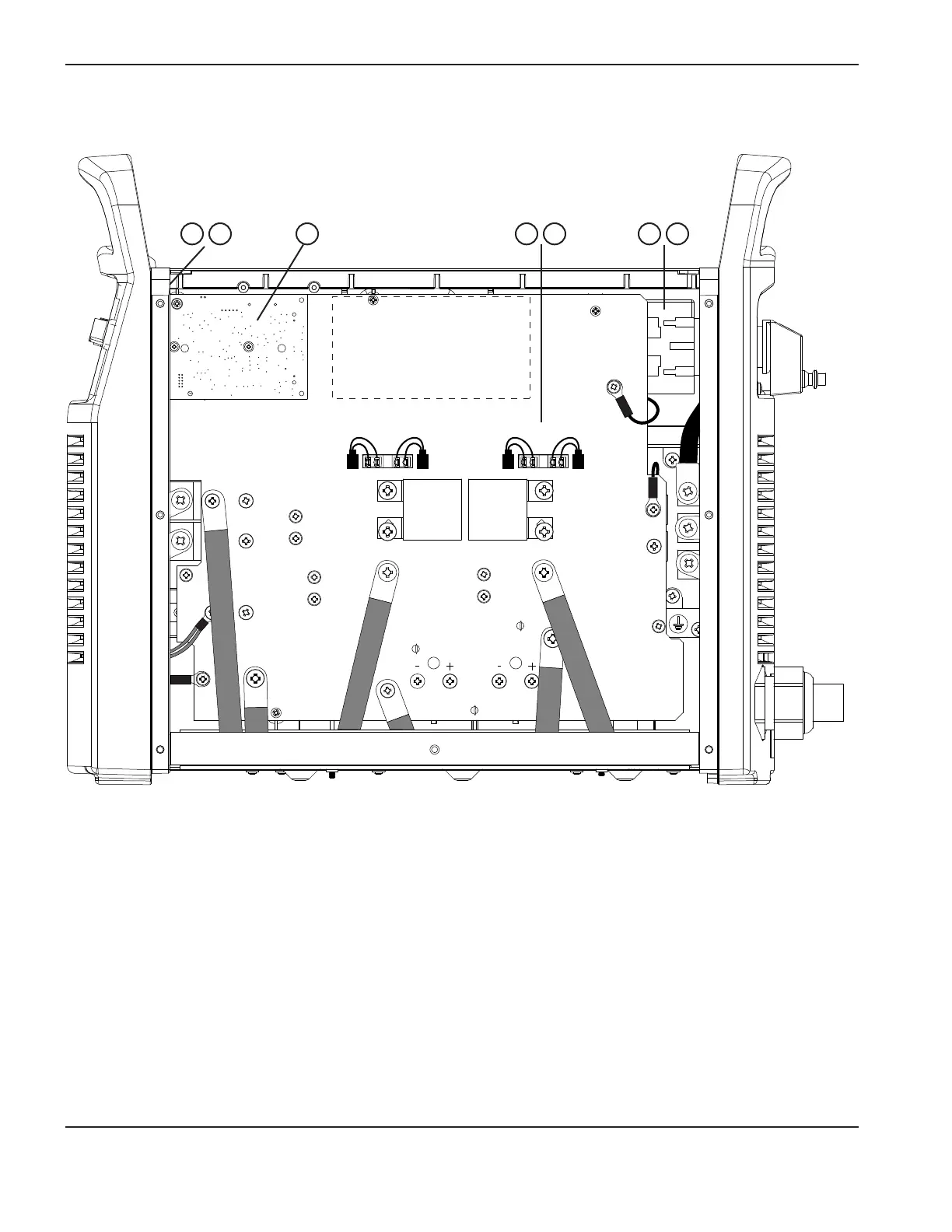

Interior, power board side (200 – 600V CSA)
WORK
LEAD
BLK
BLK
J13
J16J17J18J19
J26
J29
TP12
J28
TP10
TP11
1
2
3
4
5
6
7
Item Part number Description
1 228657 Kit: Powermax65 control board
2 228658 Kit: Powermax85 control board
3 228656 Kit: Powermax65 and Powermax85 DSP board
4 228659 Kit: Powermax65 Power board CSA
5 228662 Kit: Powermax85 Power board CSA
6 228644 Kit: Powermax65 CSA Power Switch
7 228655 Kit: Powermax85 CSA Power Switch
228690 Kit: Powermax65 CSA wire group
228700 Kit: Powermax85 CSA wire group
228705 Kit: Powermax65 and Powermax85 Mylar barrier

Hypertherm Powermax 65 Specifications

General

Open Circuit Voltage (OCV)	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Maximum Cut Capacity (Mild Steel)	1" (25 mm)
Input Voltage	200-600 V, 1/3-PH, 50/60 Hz
Output Current	20 – 65 A
Duty Cycle	50% @ 65 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Torch Lead Length	25 ft (7.6 m)
Maximum Cut Capacity (Aluminum)	5/8" (16 mm)
Severance Cut Capacity (Mild Steel)	1-1/4" (32 mm)
Maximum Severance Thickness	1-1/4 in (32 mm)
Gas Type	Air/Nitrogen
Torch Options	Hand Torch, Mechanized Torch
