Hypertherm Powermax 65 Service Manual

Parts
powermax 65/85 Service Manual 7-3

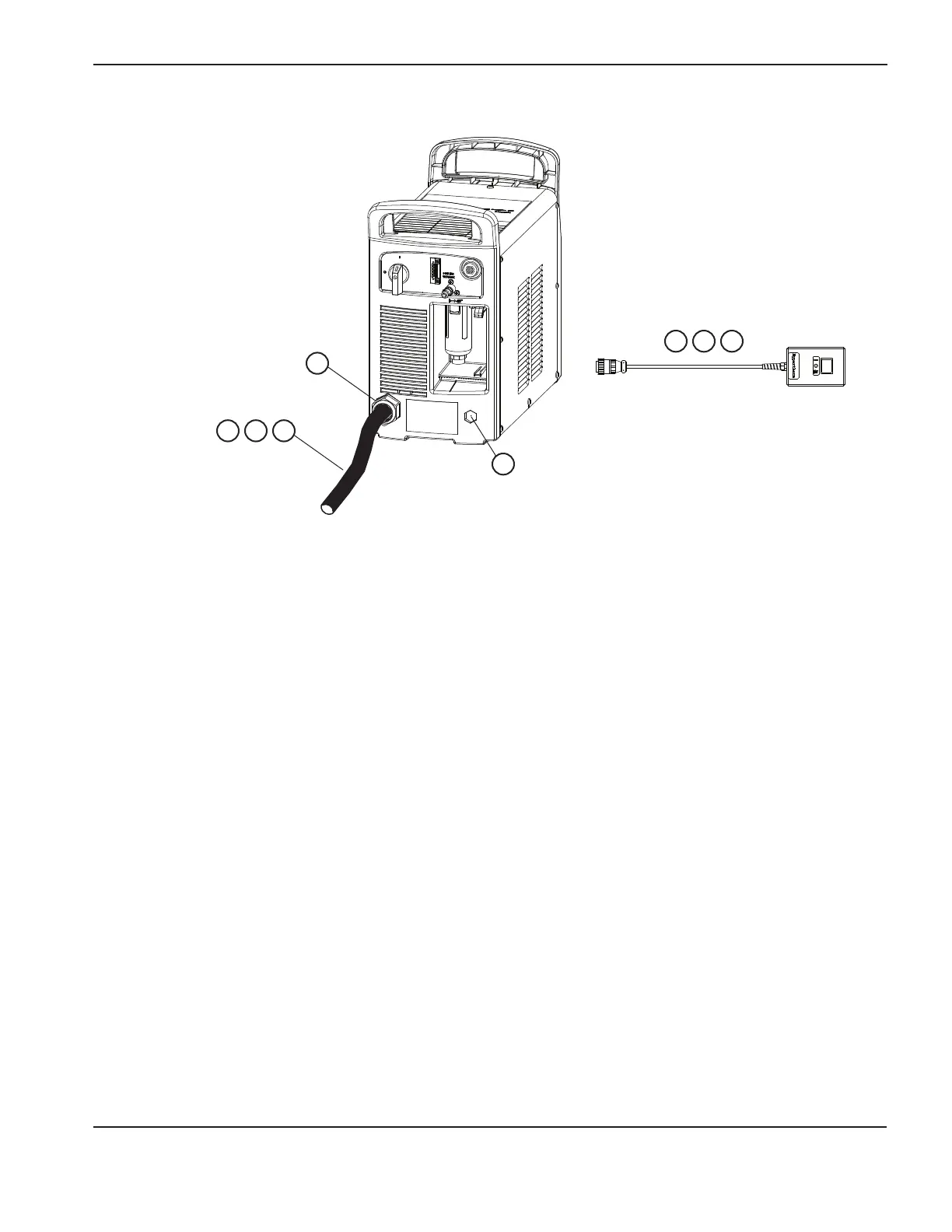

Exterior rear
Item Part number Description
1 228691 Kit: Powermax65 and Powermax85 CSA power cord
2 228679 Kit: Powermax65 CE power cord
3 228678 Kit: Powermax85 CE power cord
4 228680 Kit: Powermax65 and Powermax85 power cord strain relief
5 128650 Remote start pendant for machine torch, 7.6m (25 ft)
6 128651 Remote start pendant for machine torch, 15m (50 ft)
7 128652 Remote start pendant for machine torch, 23m (75 ft)
8 228711 Kit: Powermax65 and Powermax85 Mach interface strain relief kit, raw arc voltage
023206 Machine interface cable (start, stop, arc transfer signals), 7.6m (25 ft), spade connectors
023279 Machine interface cable (start, stop, arc transfer signals), 15m (50 ft), spade connectors
228350 Machine interface cable (start, stop, arc transfer signals) for divided arc voltage,
7.6m(25ft), spade connectors
228351 Machine interface cable (start, stop, arc transfer signals) for divided arc voltage,
50ft(15m), spade connectors
223048 Machine interface cable (start, stop, arc transfer signals) for divided arc voltage,
7.6m(25ft), D-sub connector with screws
123896 Machine interface cable (start, stop, arc transfer signals) for divided arc voltage,
15m(50ft), D-sub connector with screws
127204 Powermax45, Powermax65, and Powermax85 Machine interface (CPC) receptacle cover
228697 Kit: Powermax65 and Powermax85 Machine Interface Cable, internal cable with voltage
divider board (CPC port upgrade)
228539 Kit: RS485 board with internal cables (65/85)
1
2
3
4
5
6
7
8

Hypertherm Powermax 65 Specifications

General

Open Circuit Voltage (OCV)	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Maximum Cut Capacity (Mild Steel)	1" (25 mm)
Input Voltage	200-600 V, 1/3-PH, 50/60 Hz
Output Current	20 – 65 A
Duty Cycle	50% @ 65 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Torch Lead Length	25 ft (7.6 m)
Maximum Cut Capacity (Aluminum)	5/8" (16 mm)
Severance Cut Capacity (Mild Steel)	1-1/4" (32 mm)
Maximum Severance Thickness	1-1/4 in (32 mm)
Gas Type	Air/Nitrogen
Torch Options	Hand Torch, Mechanized Torch
