Hypertherm Powermax 65 Service Manual

Torch SeTup
3-16 powermax 65/85 Service Manual
Connecting an optional remote-start pendant
Powermax65 and Powermax85 configurations with a Duramax machine torch can include an optional remote-start
pendant.
• Part number 128650: 25 foot (7.6 m)
• Part number 128651: 50 foot (15 m)
• Part number 128652: 75 foot (23 m)
Remove the receptacle cover and plug the Hypertherm remote-start pendant into the receptacle on the rear of the
power supply.
Note: The remote-start pendant is for use only with a machine torch. It will not operate if a handheld torch is
installed.

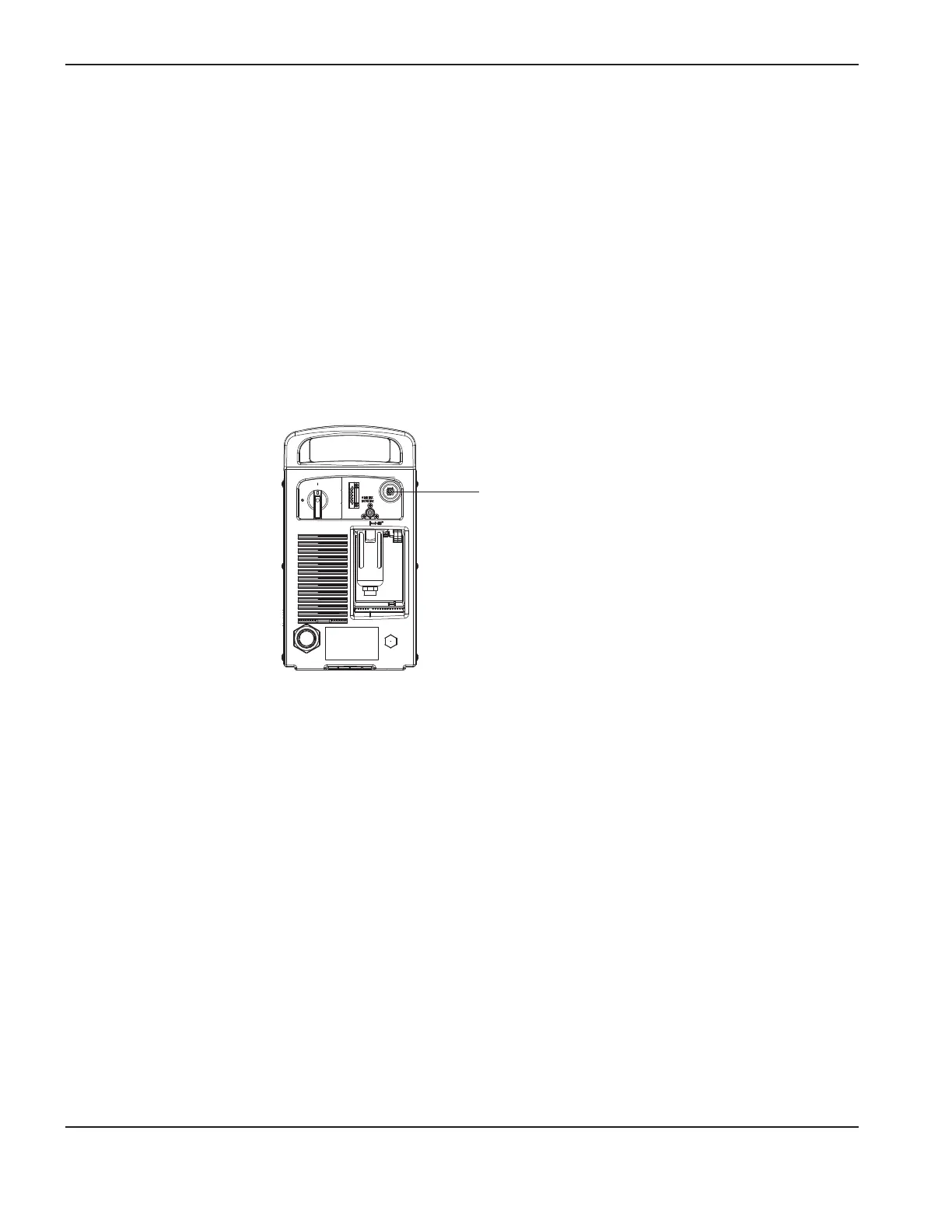

Receptacle for the
remote-start pendant or a
machine interface cable.

Hypertherm Powermax 65 Specifications

General

Open Circuit Voltage (OCV)	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Maximum Cut Capacity (Mild Steel)	1" (25 mm)
Input Voltage	200-600 V, 1/3-PH, 50/60 Hz
Output Current	20 – 65 A
Duty Cycle	50% @ 65 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Torch Lead Length	25 ft (7.6 m)
Maximum Cut Capacity (Aluminum)	5/8" (16 mm)
Severance Cut Capacity (Mild Steel)	1-1/4" (32 mm)
Maximum Severance Thickness	1-1/4 in (32 mm)
Gas Type	Air/Nitrogen
Torch Options	Hand Torch, Mechanized Torch
