SpecificationS
powermax 65/85 Service Manual 1-15
IEC symbols

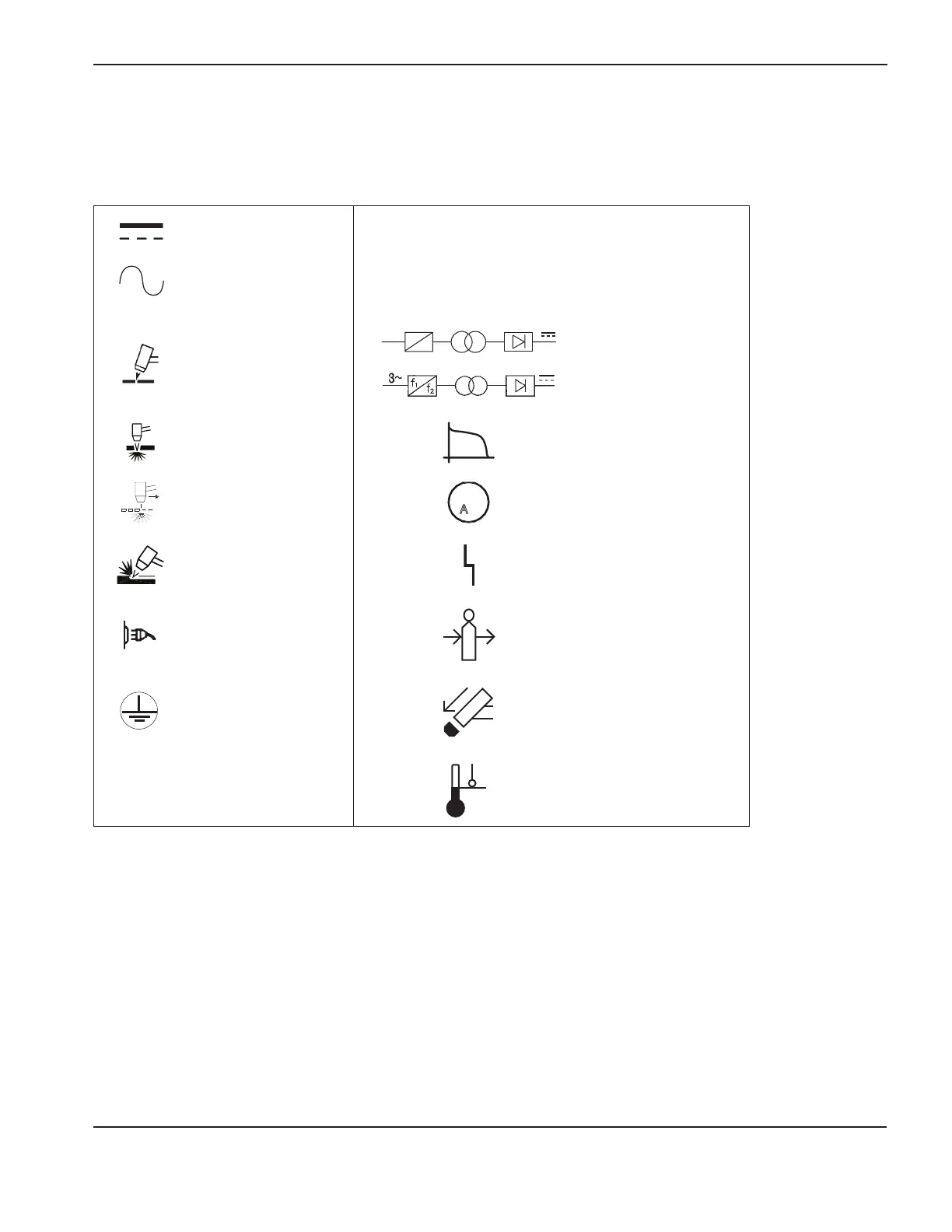

The following symbols may appear on the power supply data plate, control labels, switches, LEDs, and LCD screen.
Direct current (DC) l Power is ON
Alternating current
(AC)
O
Power is OFF
Plasma torch cutting
f
1
f
2
1~
An inverter-based power
source, either 1-phase or
3-phase
Plate metal cutting
Volt/amp curve,
“drooping” characteristic
Expanded metal
cutting
AC
Power is ON (LED)
Gouging System fault (LED)
AC input power
connection
Inlet gas pressure fault
(LCD)
The terminal for the
external protective
(earth) conductor
Missing or loose
consumables (LCD)
Power supply is out of
temperature range (LCD)

Hypertherm Powermax 65 Specifications

General

Open Circuit Voltage (OCV)	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Maximum Cut Capacity (Mild Steel)	1" (25 mm)
Input Voltage	200-600 V, 1/3-PH, 50/60 Hz
Output Current	20 – 65 A
Duty Cycle	50% @ 65 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Torch Lead Length	25 ft (7.6 m)
Maximum Cut Capacity (Aluminum)	5/8" (16 mm)
Severance Cut Capacity (Mild Steel)	1-1/4" (32 mm)
Maximum Severance Thickness	1-1/4 in (32 mm)
Gas Type	Air/Nitrogen
Torch Options	Hand Torch, Mechanized Torch
