Hypertherm Powermax 65 Service Manual

Parts

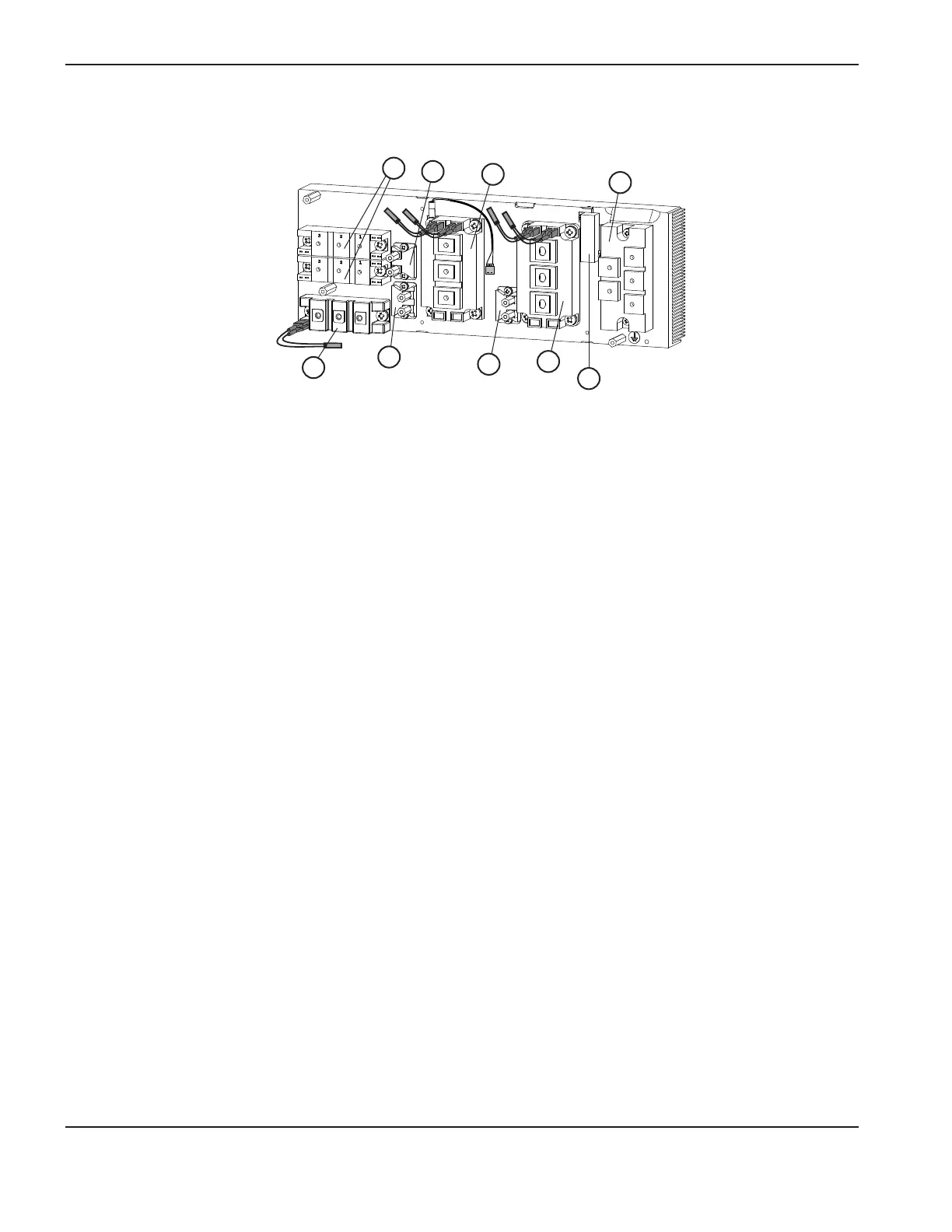

7-10 powermax 65/85 Service Manual
85A CSA
7
1
2
3
4
5
6
8
9
Item Part number Description
1 228804 Kit: Powermax85 output diode bridge
2 228693 Kit: Powermax65 and Powermax85 5 Ω snubber resistor
3 228703 Kit: Powermax85 CSA, Powermax65 CE inverter IGBT
4 228741 Kit: Powermax85 CSA input diode bridge
5 228701 Kit: Powermax85 pilot arc IGBT
6 228706 Kit: Powermax65 and Powermax85 15 Ω snubber resistor
7 228693 Kit: Powermax65 and Powermax85 5 Ω snubber resistor
8 228699 Kit: Powermax85 PFC IGBT
9 228740 Kit: Powermax65 and Powermax85 damper resistor
127128 Thermal grease, T-grease 2500, 10cc

Hypertherm Powermax 65 Specifications

General

Open Circuit Voltage (OCV)	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Maximum Cut Capacity (Mild Steel)	1" (25 mm)
Input Voltage	200-600 V, 1/3-PH, 50/60 Hz
Output Current	20 – 65 A
Duty Cycle	50% @ 65 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Torch Lead Length	25 ft (7.6 m)
Maximum Cut Capacity (Aluminum)	5/8" (16 mm)
Severance Cut Capacity (Mild Steel)	1-1/4" (32 mm)
Maximum Severance Thickness	1-1/4 in (32 mm)
Gas Type	Air/Nitrogen
Torch Options	Hand Torch, Mechanized Torch
