Hypertherm Powermax 65 Service Manual

Parts

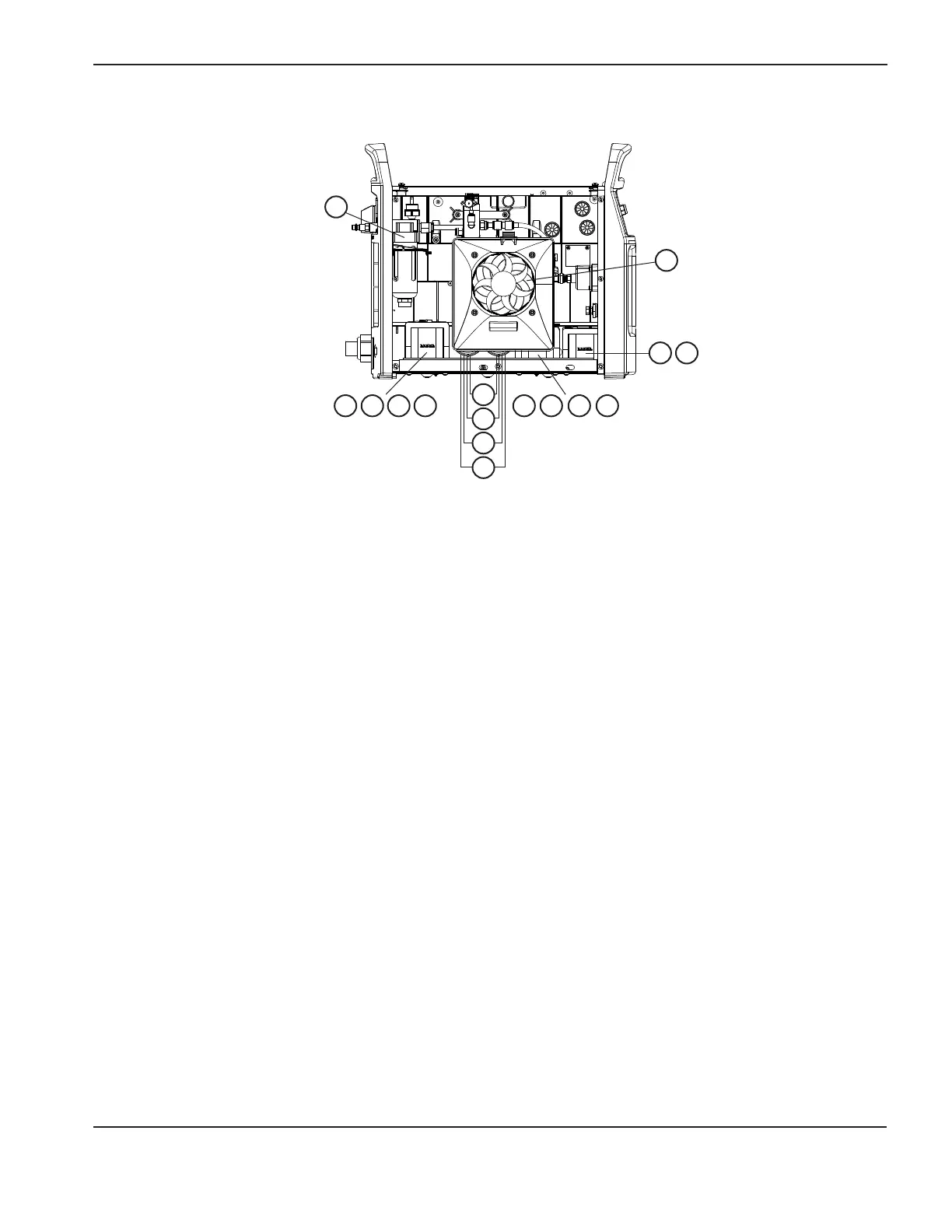

powermax 65/85 Service Manual 7-23
CSA, CE
1
2
3
4
5
6
7
8
9
10
11
12 13 14
15 16
Item Part number Description
1 228686 Kit: Powermax65 and Powermax85 fan subassembly
2 228685 Kit: Powermax65 and Powermax85 air filter
3 228663 Kit: Powermax65 transformer CSA
4 228669 Kit: Powermax65 transformer CE
5 228667 Kit: Powermax85 transformer CSA
6 228654 Kit: Powermax85 transformer CE
7 228683 Kit: Powermax65 CSA bulk capacitor (2 in kit)
8 228684 Kit: Powermax65 CE bulk capacitor (2 in kit)
9 228681 Kit: Powermax85 CSA bulk capacitor (2 in kit)
10 228682 Kit: Powermax85 CE bulk capacitor (2 in kit)
11 228661 Kit: Powermax65 PFC inductor CSA
12 228670 Kit: Powermax65 PFC inductor CE
13 228668 Kit: Powermax85 PFC inductor CSA
14 228664 Kit: Powermax85 PFC inductor CE
15 228648 Kit: Powermax65 output inductor
16 228665 Kit: Powermax85 output inductor

Hypertherm Powermax 65 Specifications

General

Open Circuit Voltage (OCV)	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Maximum Cut Capacity (Mild Steel)	1" (25 mm)
Input Voltage	200-600 V, 1/3-PH, 50/60 Hz
Output Current	20 – 65 A
Duty Cycle	50% @ 65 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Torch Lead Length	25 ft (7.6 m)
Maximum Cut Capacity (Aluminum)	5/8" (16 mm)
Severance Cut Capacity (Mild Steel)	1-1/4" (32 mm)
Maximum Severance Thickness	1-1/4 in (32 mm)
Gas Type	Air/Nitrogen
Torch Options	Hand Torch, Mechanized Torch
