Powermax30 XP Service Manual 808150 Revision 0 121
6 – Power Supply Component Replacement

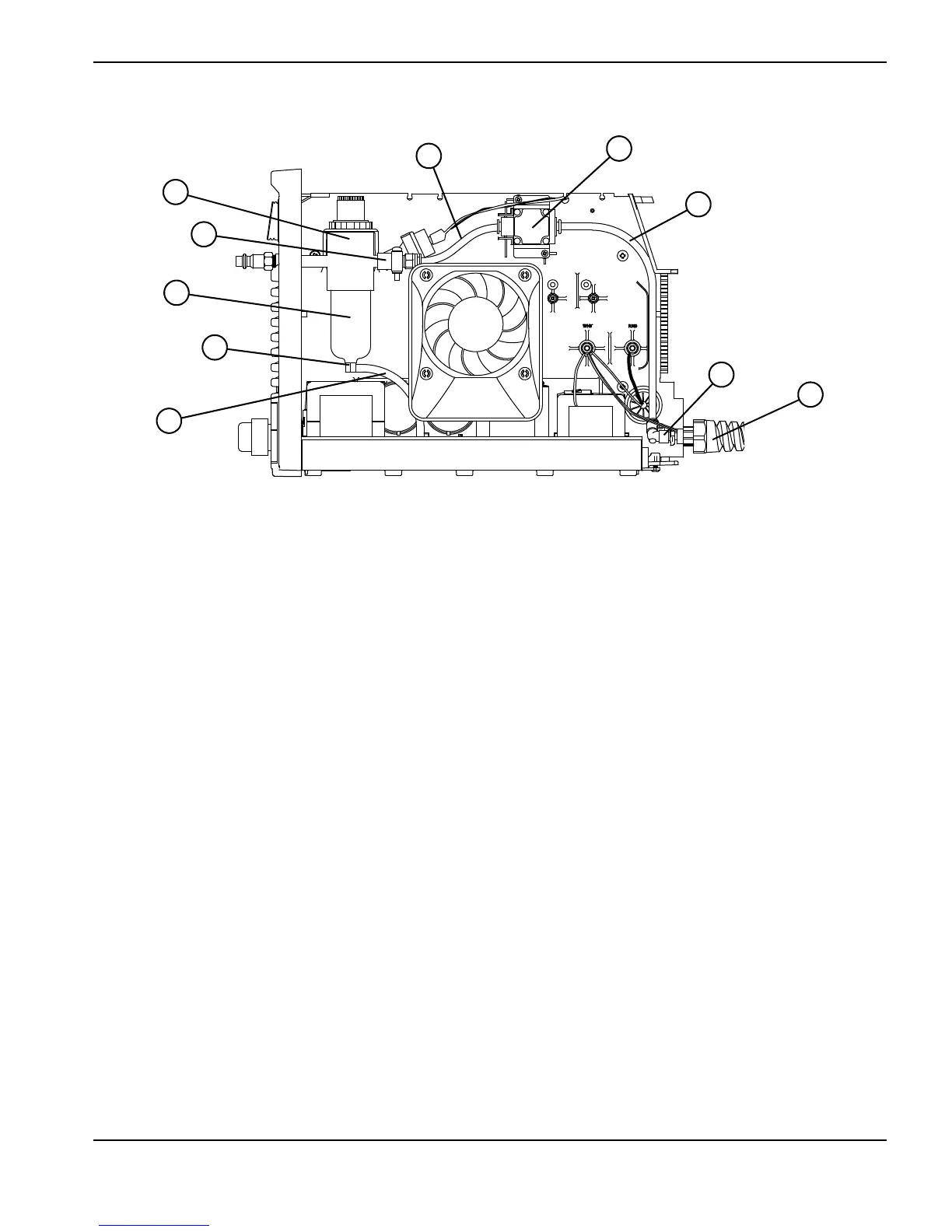

Figure 57
1
2
6
3
4
5
7
8
9
10
1
Air filter/regulator
2
Brass “T” fitting
3
Air filter bowl
4
Fitting
5
Drain hose
6
Torch lead
7
Plastic 90° fitting for torch lead
8
Gas supply hose from solenoid valve to torch lead
9
Solenoid valve
10
Gas supply hose from air filter/regulator to solenoid
valve
