6 – Power Supply Component Replacement
Replacing the wire group
The wire group kit for the Powermax30 XP includes the following 4 wires:

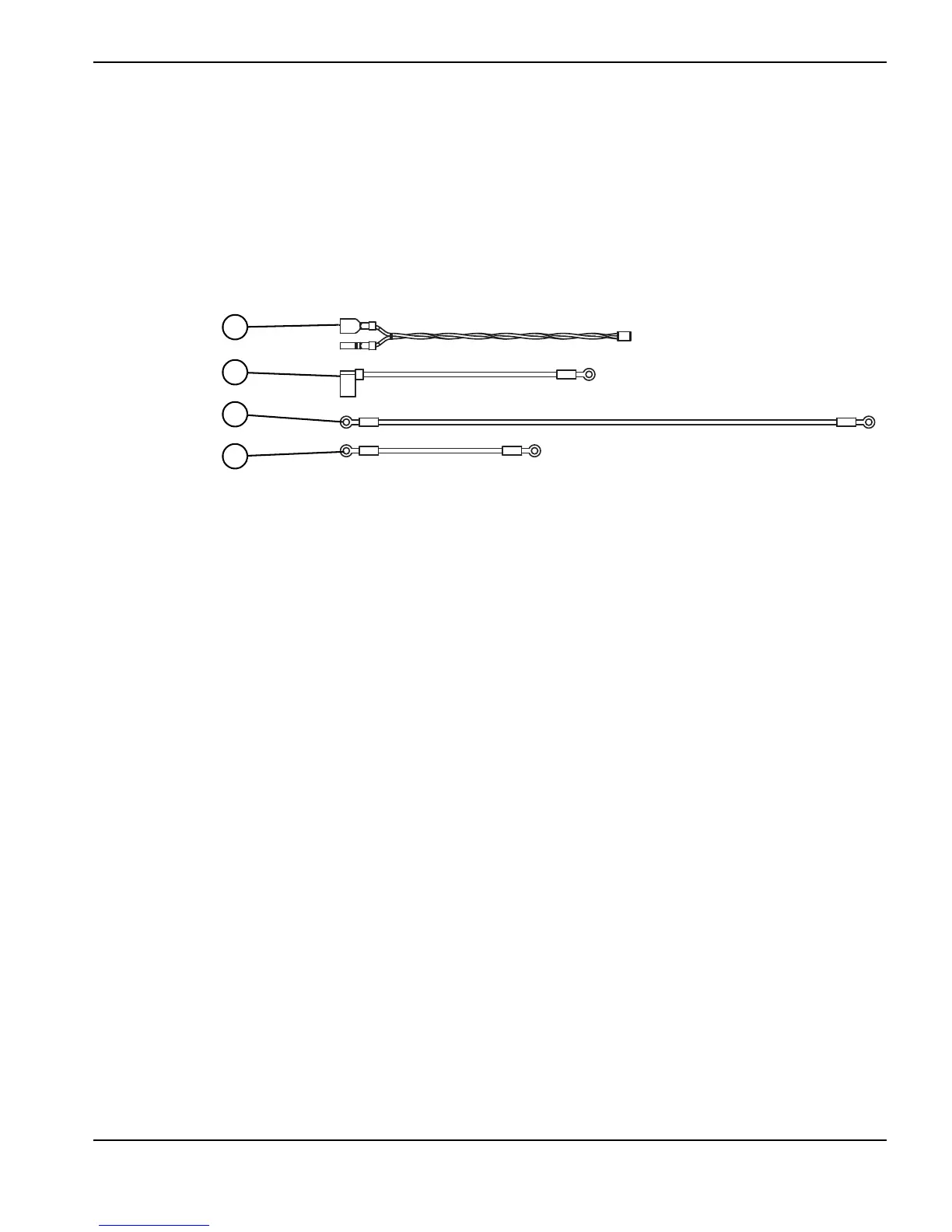

Figure 58
Kit number Description
228103 Kit: Wire group: pressure switch wire pair, 3 ground wires
1
2
3
4
1
Pressure switch to J4 wire pair (red/black)
2
Ground clip wire from heatsink to rear panel (green)
3
Ground wire from heatsink to magnetics assembly
(green)
4
Ground wire from heatsink to air filter/regulator
ground clip (green)
