20 Powermax30 XP Service Manual 808150 Revision 0
1 – Specifications

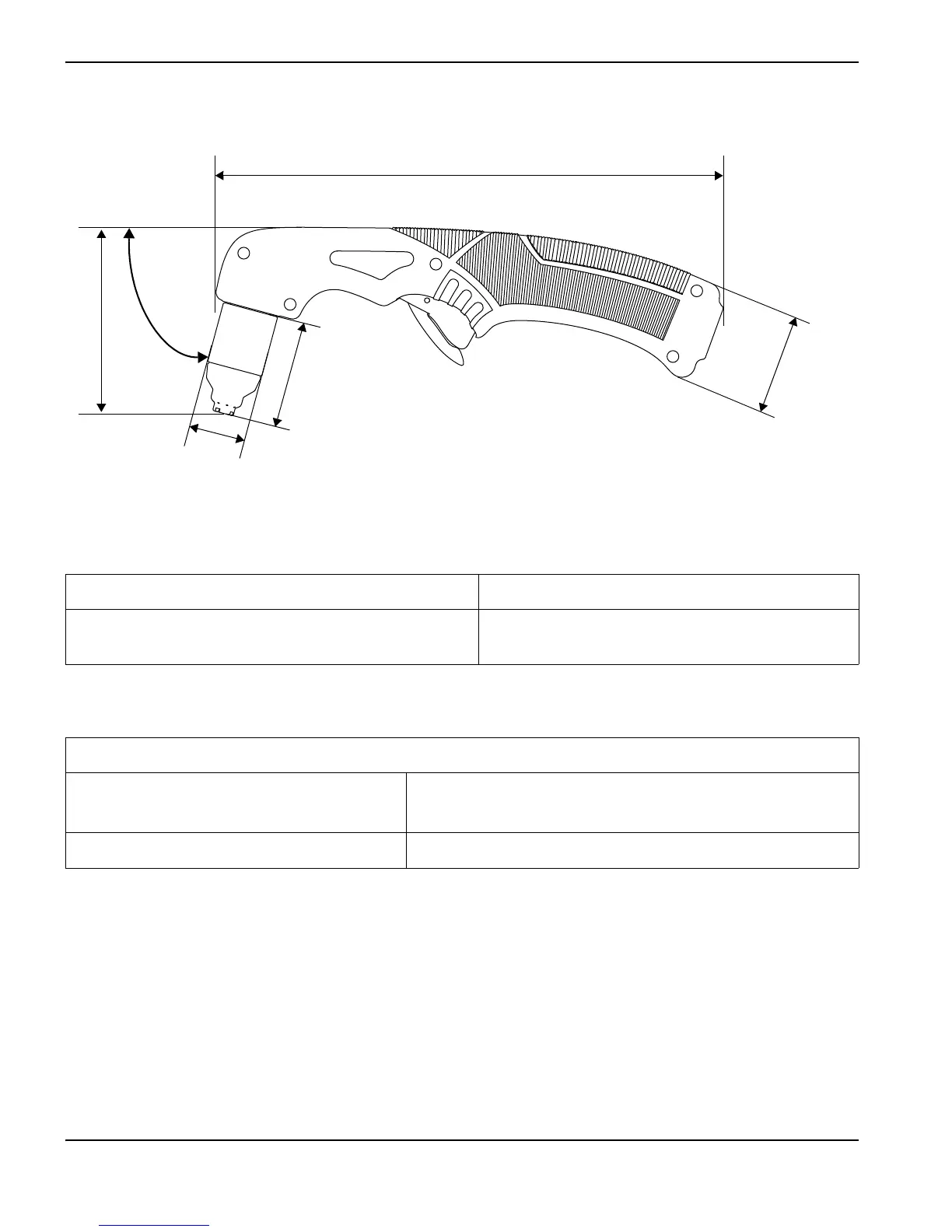

Torch dimensions
Torch weight
Cutting specifications
Duramax LT torch with general-purpose consumables only 0.3 kg (0.75 pounds)
Duramax LT torch with general-purpose consumables and
4.6 m (15 foot) lead (with strain relief)
1.1 kg (2.35 pounds)
240 V (with general-purpose consumables)
Recommended cut capacity 9 mm (3/8 inch) at 500 mm/minute (20 inches/minute)
12 mm (1/2 inch) at 250 mm/minute (10 inches/minute)
Severance cut capacity 15 mm (5/8 inch) at 125 mm/minute (5 inches/minute)
120 V: Use the FineCut nozzle and deflector for cutting on 120 V input circuits. When you operate the system at the
maximum recommended output of 25 A, the cut capacities are:
6 mm (1/4 inch) at 480 mm/minute (19 inches/minute)
9 mm (3/8 inch) at 200 mm/minute (8 inches/minute)
12 mm (1/2 inch) at 75 mm/minute (3 inches/minute)
To understand the differences between the general-purpose and FineCut consumables,
and for guidelines on selecting the right set for your cutting applications, see Choose
the consumables on page 32.
25 mm
(1.0 inch)
48 mm (1.9 inches)
230 mm (9.0 inches)
45 mm
(1.8 inches)
83 mm
(3.3 inches)
75°
