Hypertherm Powermax30 XP Service Manual

180 Powermax30 XP Service Manual 808150 Revision 0
7 – Torch Component Replacement
Replacing the start switch
1. Complete the following procedures:
a. Set the power switch to OFF (O), disconnect the power cord from the power source, and disconnect the gas
supply.
b. Remove all components from the torch. See Remove the handle on page 173.

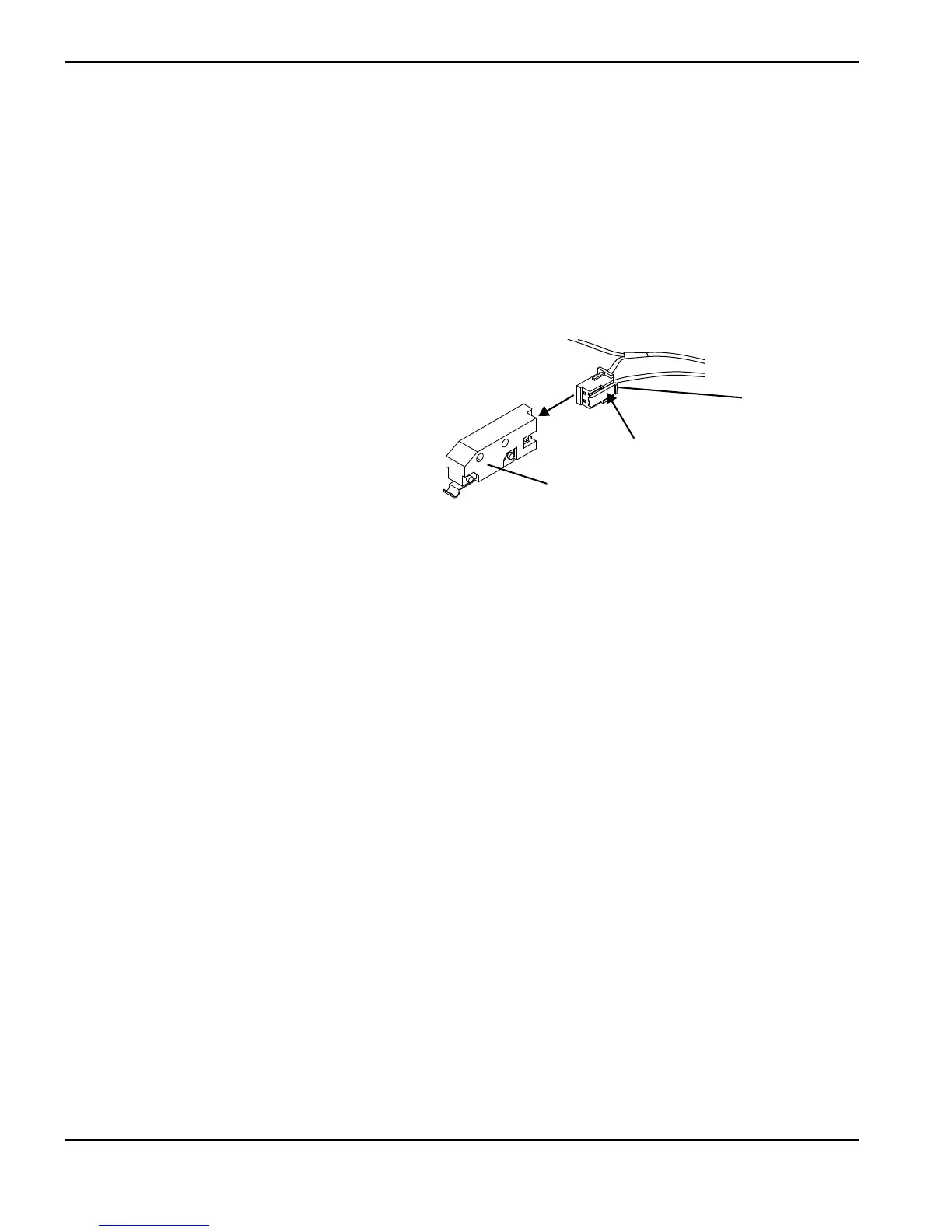

2. Disconnect the old start switch by pushing on the
tab and pulling the start switch away from the
connector.
3. Connect the new start switch by pushing the
mating plug into the socket.
4. Complete the following procedures:
a. Install all of the torch components that you
removed. See Install the handle on
page 176.
b. Reconnect the gas supply and power cord, and set the power switch to ON (I).
Kit Description
428162 Kit: Torch start switch
Tab
Start switch
