Hypertherm Powermax30 XP Service Manual

172 Powermax30 XP Service Manual 808150 Revision 0
7 – Torch Component Replacement
Disconnect the power, gas supply, and torch
1. Turn the plasma power supply switch to OFF (O).
2. Disconnect the power cord from the power source.
3. Disconnect the gas supply hose from the plasma power supply.

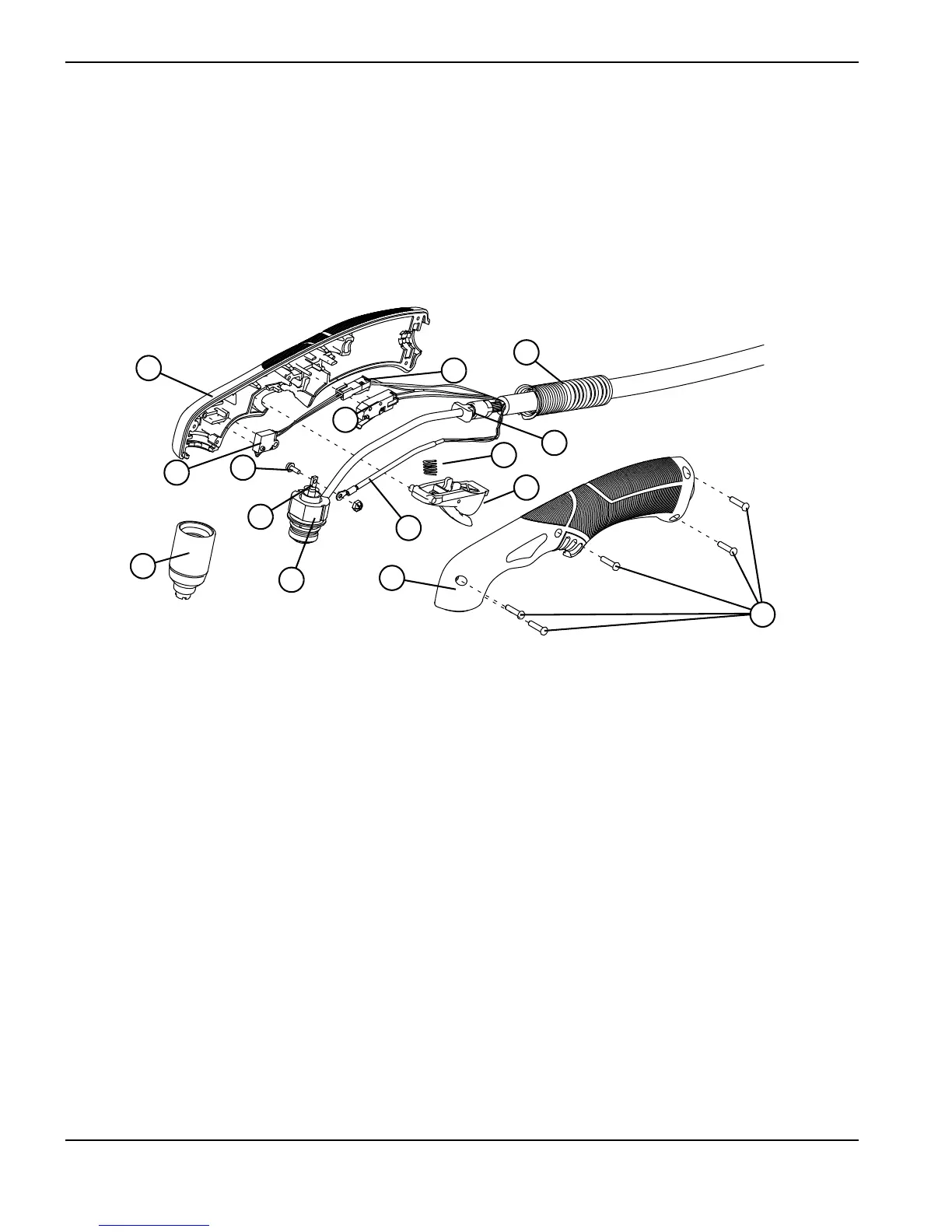

Figure 101
1
5
3
7
4
10
11
12
13
14
2
6
9
8
15
1
Right side of the handle
2
Cap-sensor switch
3
Start switch
4
Plunger screw
5
Plunger
6
Consumables
7
Torch body
8
Torch power wire
9
Left side of the handle
10
Screws (5)
11
Trigger assembly
12
Trigger spring
13
Gas hose fitting’s flange
14
Strain relief
15
Cap-sensor wire connector
