Hypertherm Powermax30 XP Service Manual

Powermax30 XP Service Manual 808150 Revision 0 187
8 – Parts

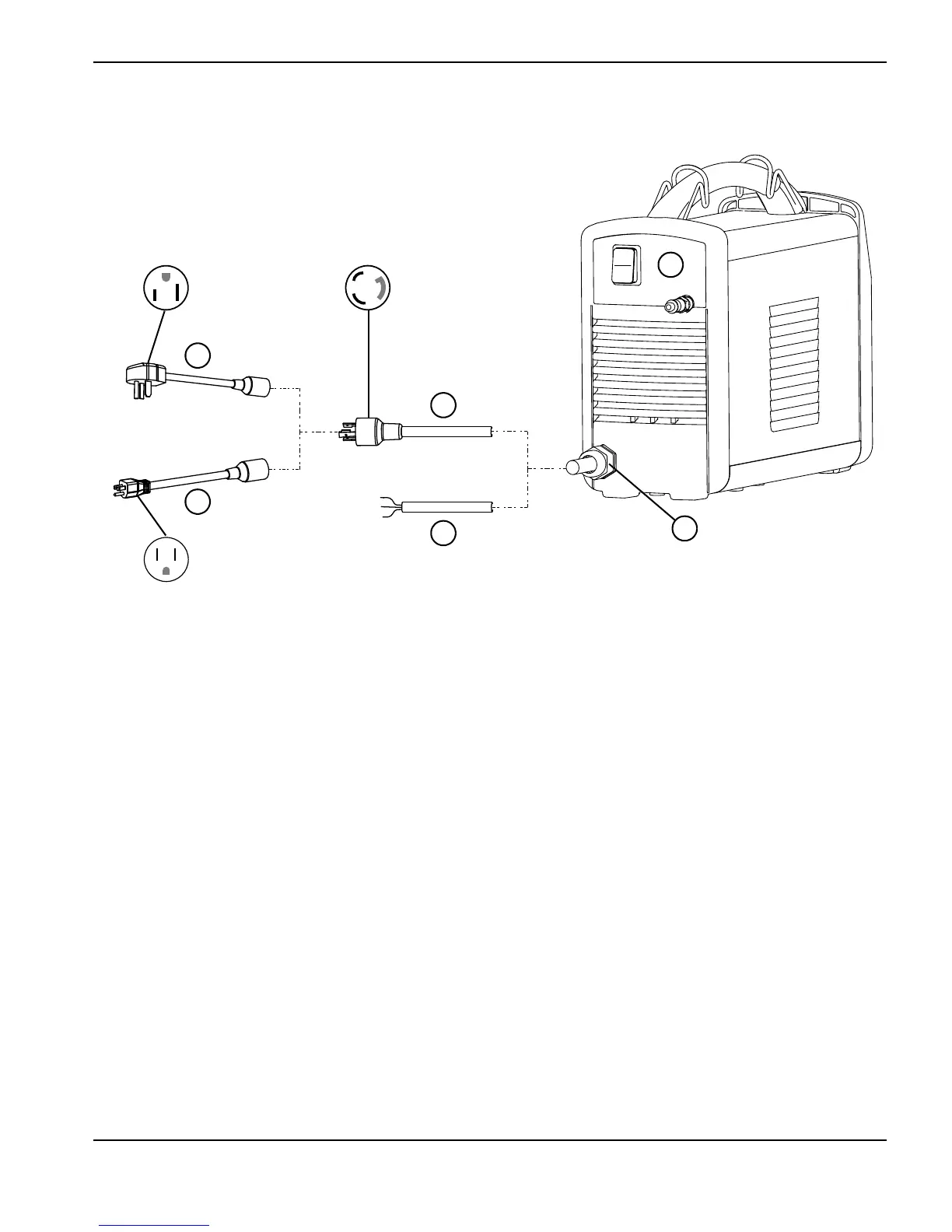

Exterior, rear
Item Kit number Description
1 428220 Kit: Rear panel
2 228210 Kit: CSA power cord with NEMA twist lock-style 240 V / 20 A plug, 1-phase,
3.0m (10feet)
3 229132 CSA power cord extension: 120 V / 15 A plug adapter
4 229133 CSA power cord extension: 240 V / 20 A plug adapter
5 228140 Kit: CE power cord, 1-phase, 3.0 m (10 feet) (plug not included)
5 428231 Kit: CCC power cord, 1-phase, 3.0 m (10 feet) (plug not included)
6 228143 Kit: Power cord strain relief
I
O
1
2
3
4
5
6
NEMA 6-50P
NEMA 5-15P
NEMA L6-20P
