3 – Torch Setup
General-purpose consumables
Use the general-purpose consumables to cut thicker metals that do not require cuts that are as finely detailed. (See
Voltage configurations on page 25 and System operation guidelines on page 47.) This set includes an electrode, swirl
ring, general-purpose nozzle, retaining cap, and shield. The general-purpose nozzle must be installed only with the shield,
not the deflector.
Cutting at 120 V with the general-purpose consumables is not recommended.

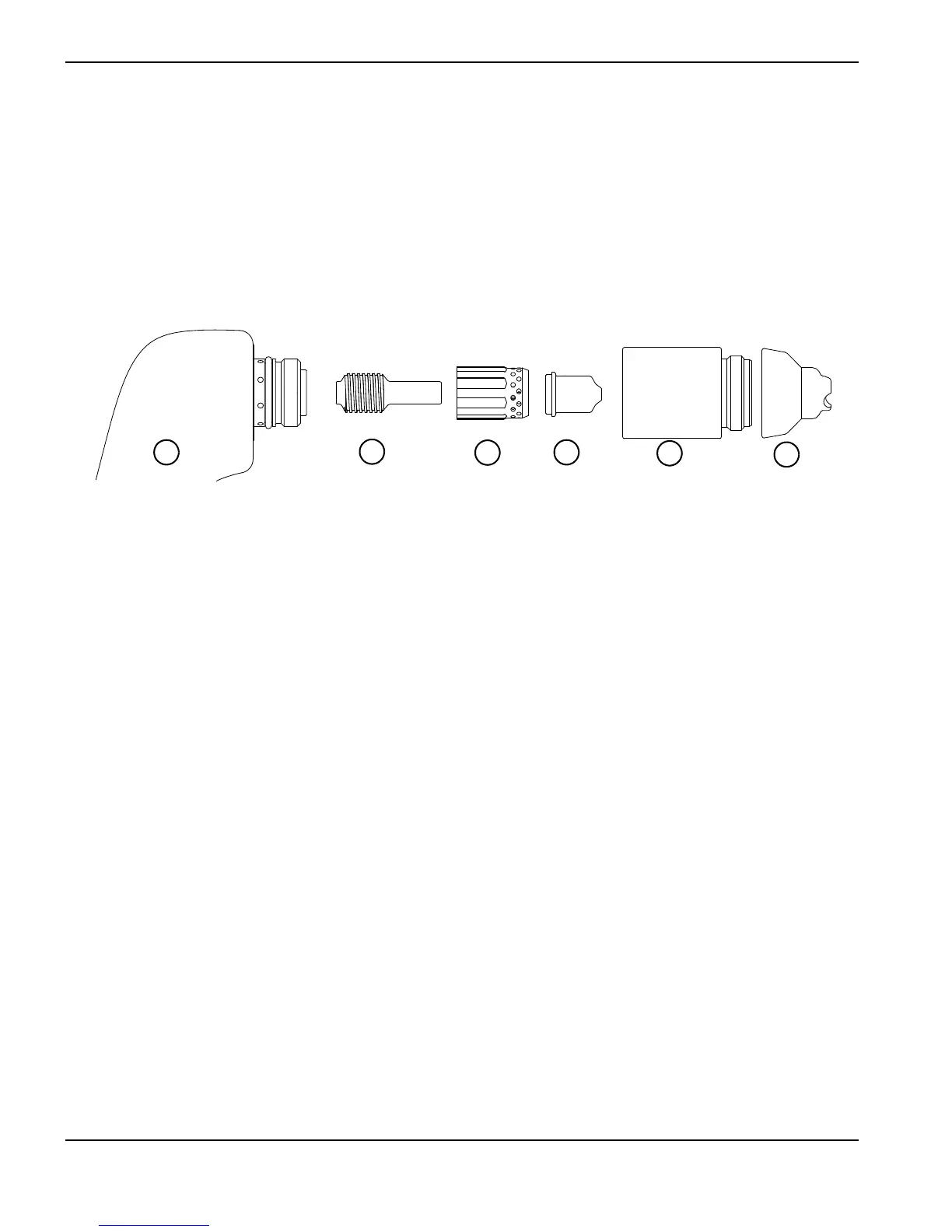

Figure 3 – General-purpose consumable set
5
4
3
2
1
6
1
Torch
2
Electrode (420120)
3
Swirl ring (420211)
4
Nozzle (420118)
5
Retaining cap (420114)
6
Shield (420116)
