196 Powermax30 XP Service Manual 808150 Revision 0
8 – Parts

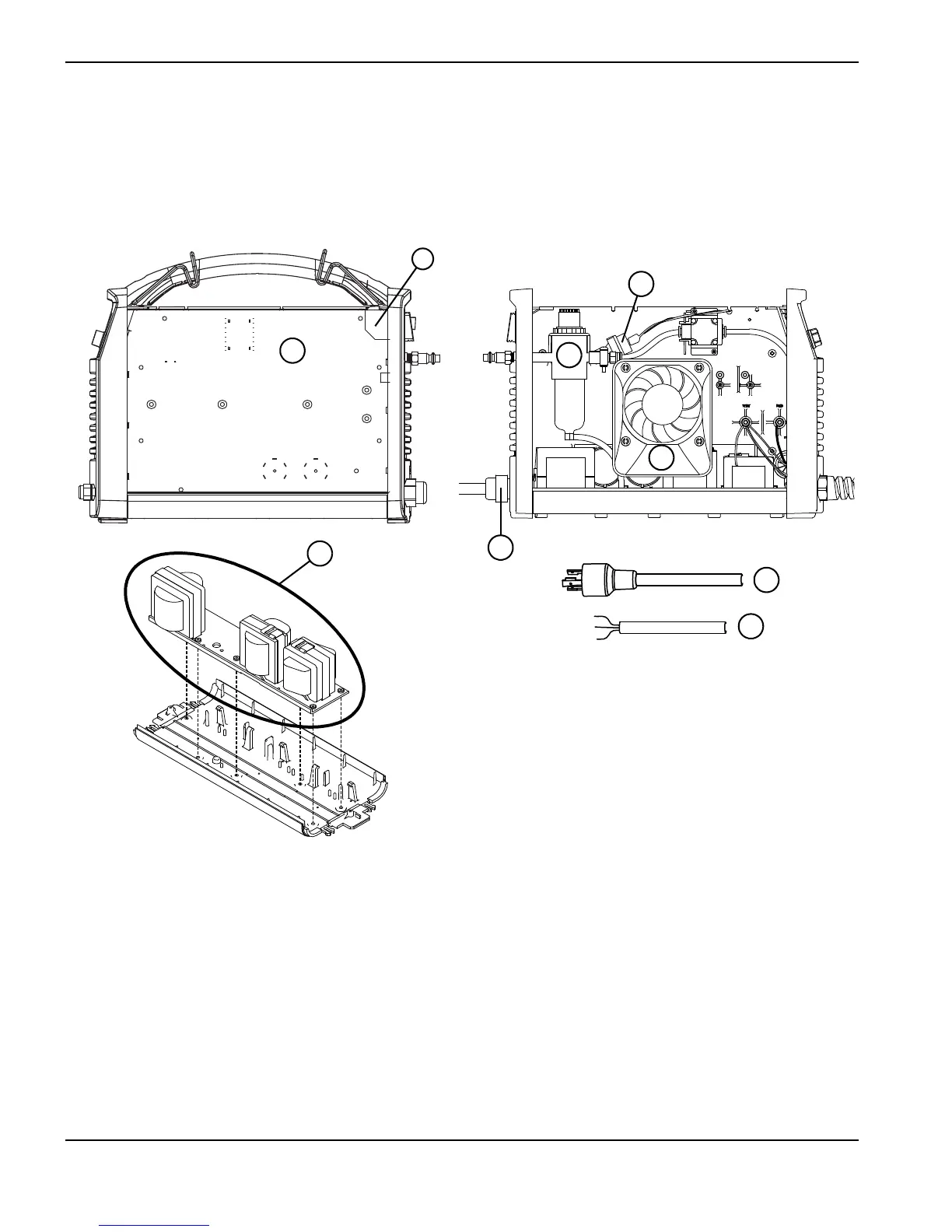

Safety-critical parts
Genuine Hypertherm parts are factory-recommended parts for your Hypertherm system. Any damage caused by the use
of parts that are not from Hypertherm may not be covered by the Hypertherm warranty. In addition, the following parts are
safety-critical parts that must be replaced only with genuine Hypertherm parts to maintain the warranty and system
certifications, including CE, CSA, and CCC certification.
Item Kit number Description
1 428233 Kit: Power board (CSA) and subcomponents
1 428234 Kit: Power board (CE and CCC) and subcomponents
2 428230 Kit: Magnetics assembly
3 228688 Kit: Pressure switch
4 228106 Kit: Air filter/regulator with pressure switch
5 428236 Kit: Fan assembly (includes plenum)
6 428235 Kit: Power switch
1
2
3
4
5
6
7
8
9
