Hypertherm Powermax30 XP Service Manual

Powermax30 XP Service Manual 808150 Revision 0 181
7 – Torch Component Replacement
Replacing the cap-sensor switch
1. Complete the following procedures:
a. Set the power switch to OFF (O), disconnect the power cord from the power source, and disconnect the gas
supply.
b. Remove all components from the torch. See Remove the handle on page 173.

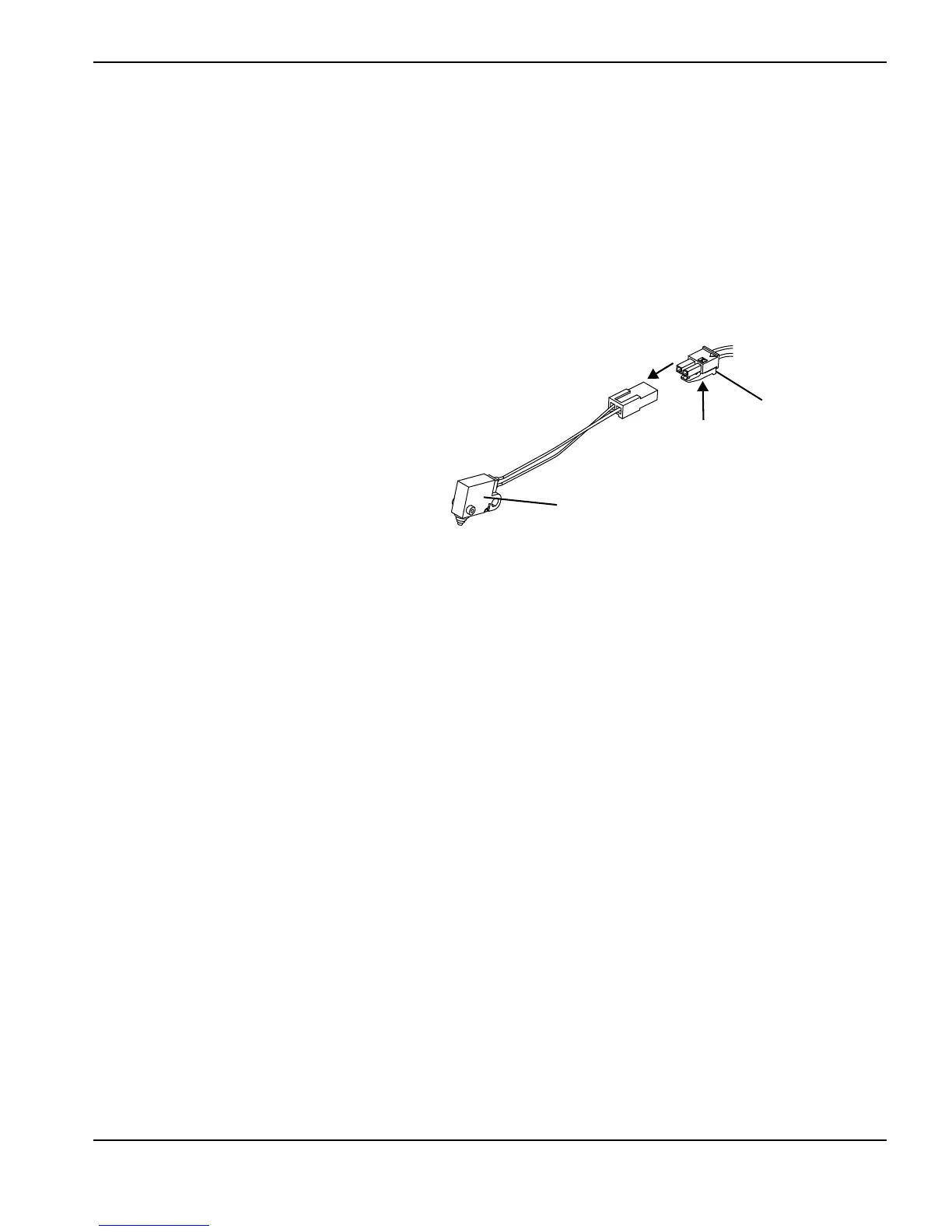

2. Disconnect the old cap-sensor switch by
pressing the tab on the connector and pulling
the connector apart.
3. Connect the new cap-sensor switch to the
torch lead by pushing the mating plug on the
torch lead wires into the socket.
4. Complete the following procedures:
a. Install all of the torch components that you
removed. See Install the handle on
page 176.
b. Reconnect the gas supply and power cord, and set the power switch to ON (I).
Kit Description
228109 Kit: Torch cap-sensor switch
Cap-sensor switch
Tab
