Powermax30 XP Service Manual 808150 Revision 0 193
8 – Parts

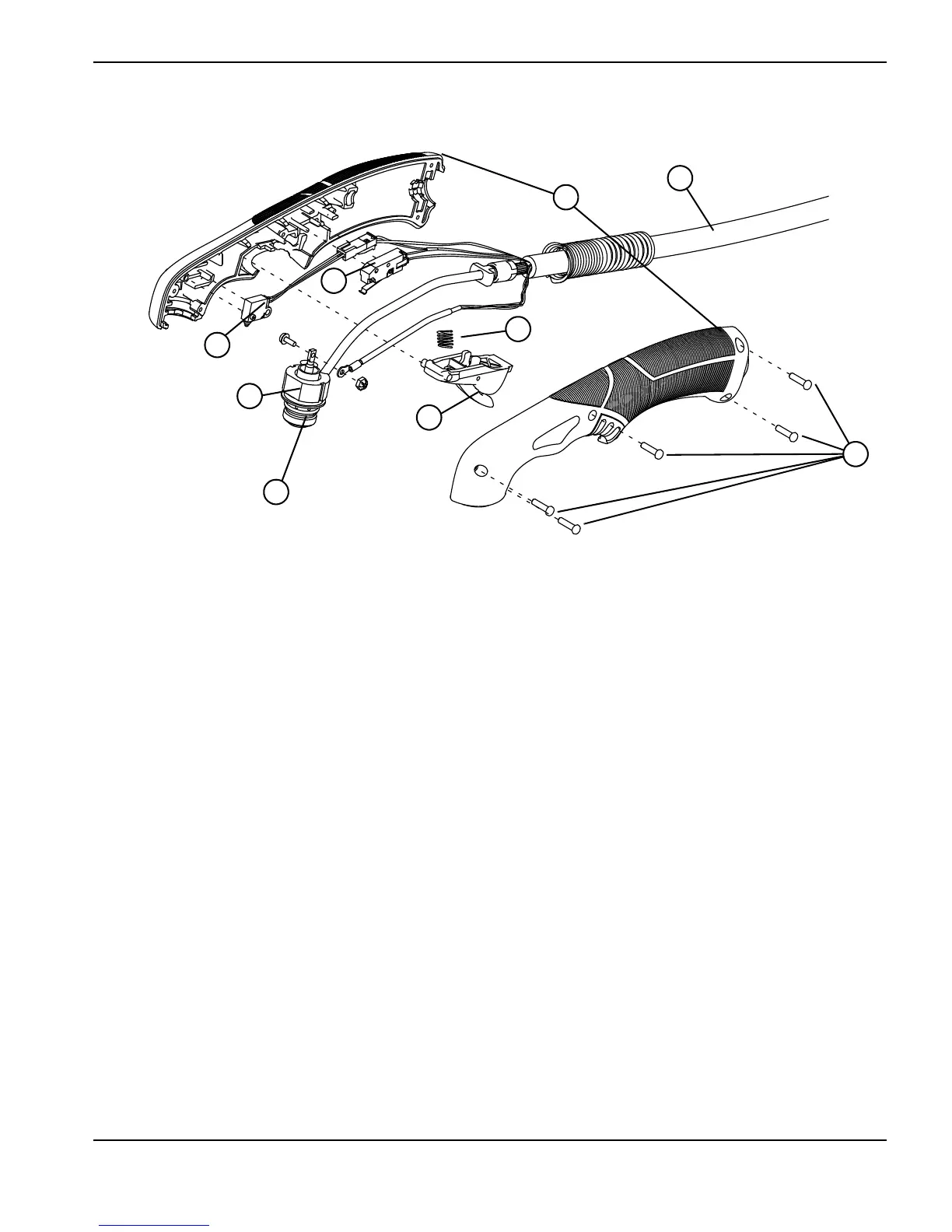

Duramax LT hand torch parts
You can replace the entire hand torch and lead assembly, or you can replace individual torch components.
Item Kit number Description
428174* Kit: Duramax LT hand torch assembly with 4.6 m (15 foot) lead
1 228109 Kit: Torch cap-sensor switch
2 428162 Kit: Torch start switch
3 428178 Kit: Duramax LT torch body (includes o-ring)
4 428179 Kit: Replacement o-rings for torch body
5 428156 Kit: Torch trigger and spring
6 428182 Kit: Replacement springs for torch trigger
7 428177 Kit: Duramax LT torch handle (includes handle screws)
8 428181 Kit: Duramax LT torch replacement handle screws
9 428176 Kit: Duramax LT torch lead, 4.6 m (15 feet), with strain relief
* The torch assembly includes one set of general-purpose consumables:
 Electrode (420120)
 Swirl ring (420211)
 Retaining cap (420114)
 Nozzle (420118)
 Shield (420116)
1
3
5
7
9
4
8
2
6
