Hypertherm Powermax30 XP Service Manual

36 Powermax30 XP Service Manual 808150 Revision 0
3 – Torch Setup
FineCut consumables
Use the FineCut consumables for detailed cutting on thin gauge metal. The FineCut consumable set uses a FineCut
nozzle and a deflector with the same electrode, swirl ring, and retaining cap used in the general-purpose consumable set.
The FineCut nozzle must be installed only with the deflector, not the shield. Using the shield results in poor cut quality and
increased power demand because the torch-to-work distance is too great.
For guidelines on cutting with 120 V input, see Recommendations for cutting at 120 V on page 49.

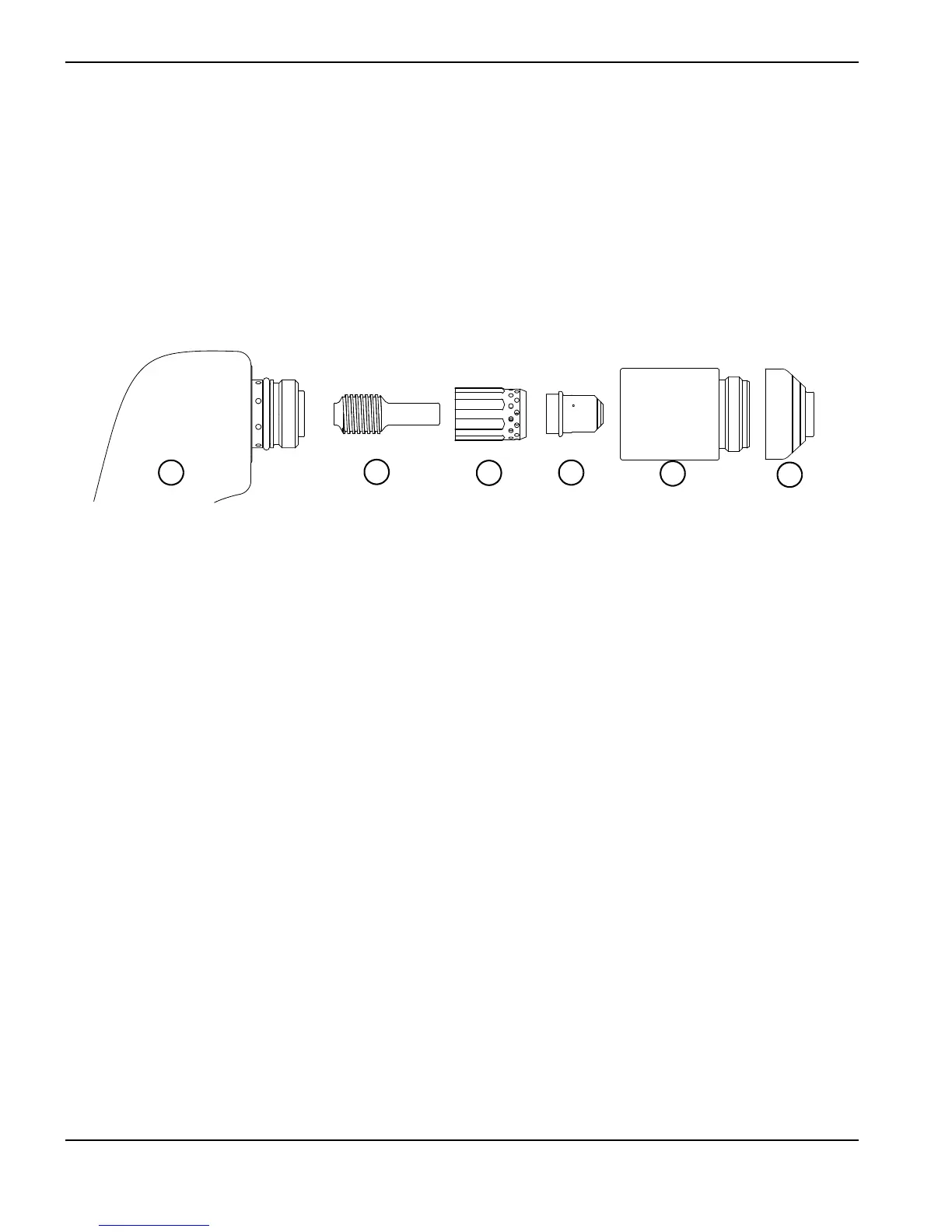

Figure 4 – FineCut consumable set
5
4
3
2
1
6
1
Torch
2
Electrode (420120)
3
Swirl ring (420211)
4
Nozzle (420117)
5
Retaining cap (420114)
6
Deflector (420115)
