Hypertherm Powermax30 XP Service Manual

156 Powermax30 XP Service Manual 808150 Revision 0
6 – Power Supply Component Replacement
Replacing the rear panel
Remove the rear panel
Use the following procedure to completely remove the rear panel in order to replace it. If you just need to move the rear
panel out of the way to provide better access to the interior of the power supply, see Detach the rear panel on page 95
and Reattach the rear panel on page 97.
1. Complete the following procedures:
a. Set the power switch to OFF (O), disconnect the power cord from the power source, and disconnect the gas
supply.
b. See Remove the power supply cover on page 88.
c. See Remove the component barrier on page 90.
2. Lay the power supply on its side.

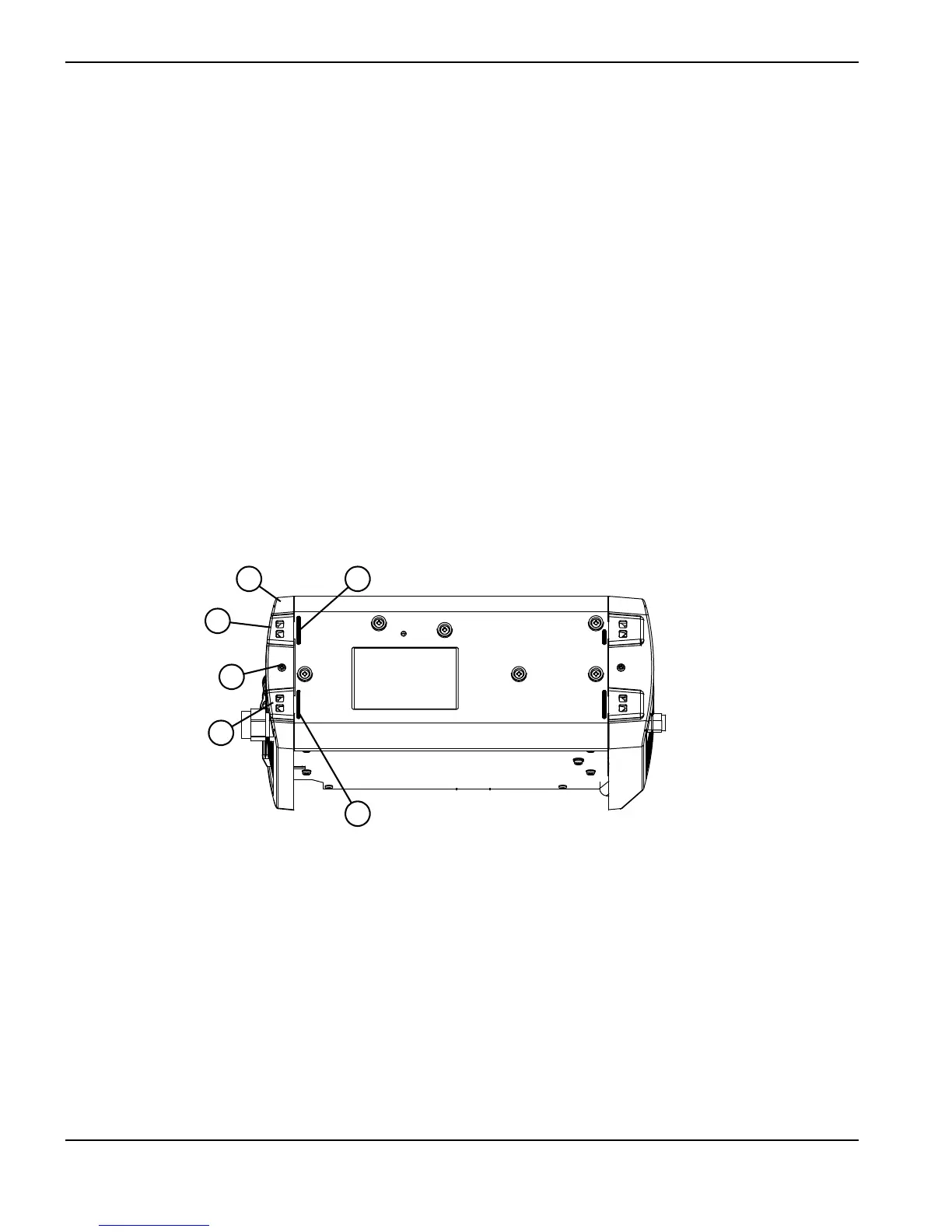

Figure 87
Kit number Description
428220 Kit: Rear panel
1
2
3
4
2
4
1
Rear panel
2
Snap
3
Retaining screw
4
Rib
