132 Powermax30 XP Service Manual 808150 Revision 0
6 – Power Supply Component Replacement
7. Line up the holes in the valve’s bracket with the holes in the center panel and attach it to the center panel using the
2 screws with a torque setting of 11.5 kg-cm (10 inch-pounds).
8. Push-to-connect the gas supply hose you removed in step 3 on page 131 into the fitting on the rear-panel side of the
solenoid valve. (See Figure 56 on page 119.)
Be careful not to kink the hoses as you reconnect them.
9. Push-to-connect the gas supply hose you removed in step 4 on page 131 into the fitting on the front-panel side of
the solenoid valve.
10. Connect the valve’s pink-and-gray wire pair to the power board at J6. (See Figure 63 on page 130.) Route the wires
through the notch in the center panel that is nearest the solenoid valve.

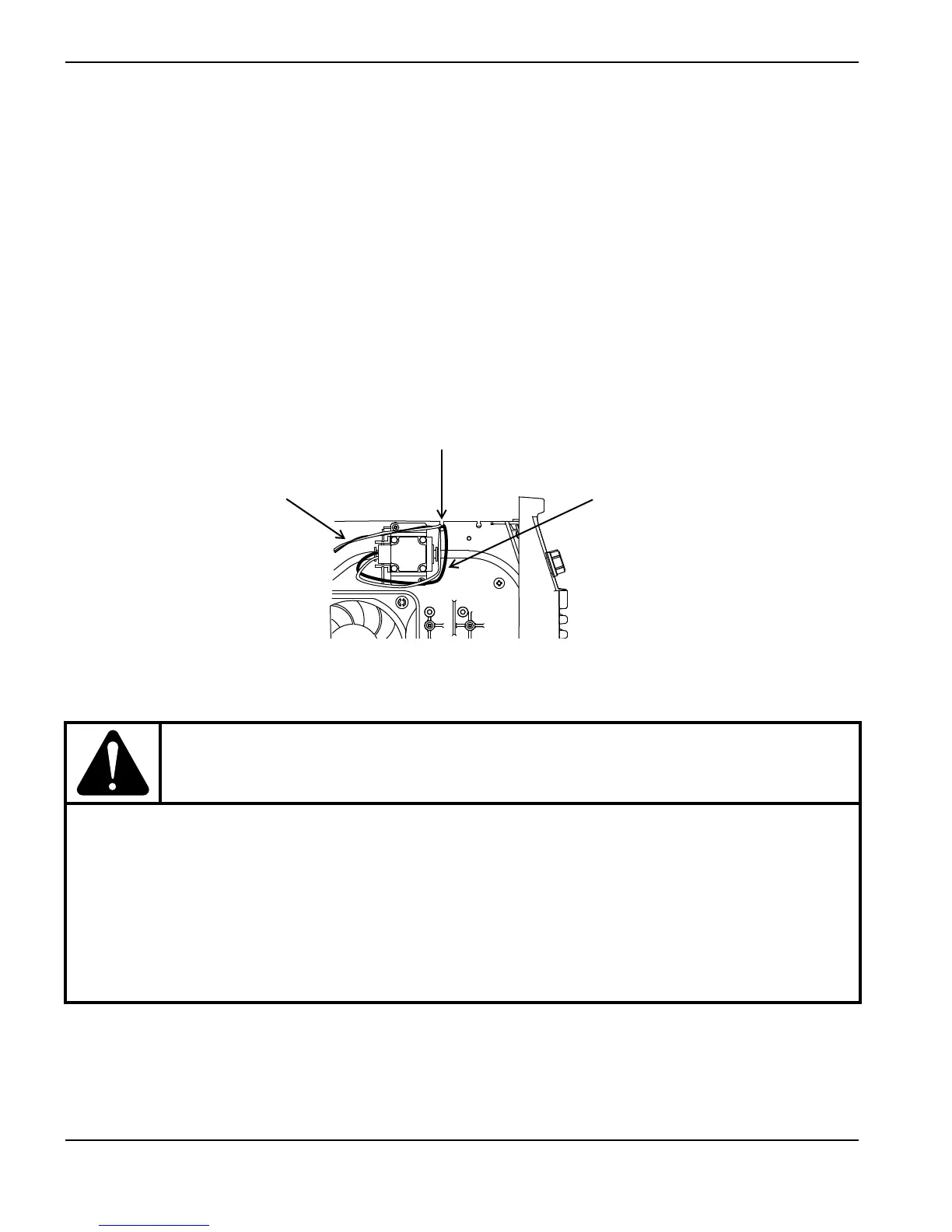

Figure 66
11. Reconnect the gas supply, and check for leaks at each fitting and hose connection point on the air filter/regulator
assembly.
12. Complete the following procedures:
a. See Install the power supply cover on page 89.
b. Reconnect the gas supply and power cord, and set the power switch to ON (I).
CAUTION!
Gas supply pressures not within the specifications in the Specifications section can cause poor cut
quality, poor consumable life, and operational problems.
If the purity level of the gas is too low, or if there are leaks in the supply hoses or connections:
Cut speeds can decrease.
Cut quality can deteriorate.
Cutting thickness capability can decrease.
Consumables life can be shortened.
Route the valve’s pink-and-gray wires through this notch in the center panel
Pressure switch wire pair Solenoid valve wire pair
