Hypertherm Powermax30 XP Service Manual

94 Powermax30 XP Service Manual 808150 Revision 0
6 – Power Supply Component Replacement

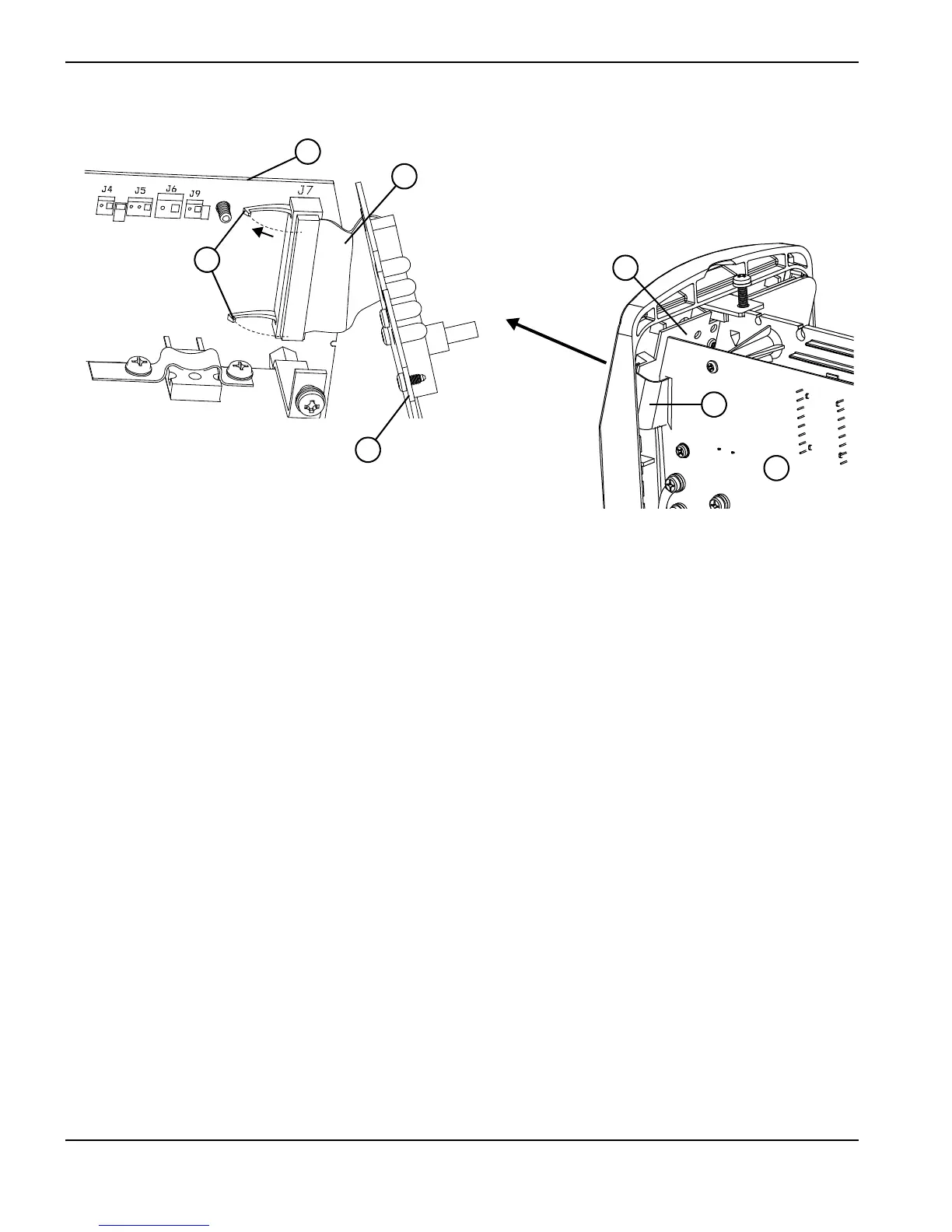

Figure 31
Reattach the front panel
1. Push the front panel into the base of the power supply to re-engage the snaps.
2. Tighten the retaining screw with a torque setting of 8.1 kg-cm (7 inch-pounds). (See Figure 28 on page 92.)
3. Reconnect the control board’s ribbon cable to the power board.
4. Tighten the strain relief nut on the torch lead and work lead.
5. Reconnect the gas supply and power cord, and set the power switch to ON (I).
1
2
3
4
2
3
4
1
Latches
2
Control board
3
Ribbon cable
4
Power board
