6. Machine Room Harness
6.1 MCPU Connection
6.1.1 Board Composition
Main board can be divided to CPU part, Memory part, Analog part, Digital part, Communication part, and
Display part. Refer to the main board structure in the below [Figure 6.1] for the names or each part, and
refer to 6.1.2 Connector Name for the names or the connectors. Before supplying the power to the main
board, make sure to check the connector connections.

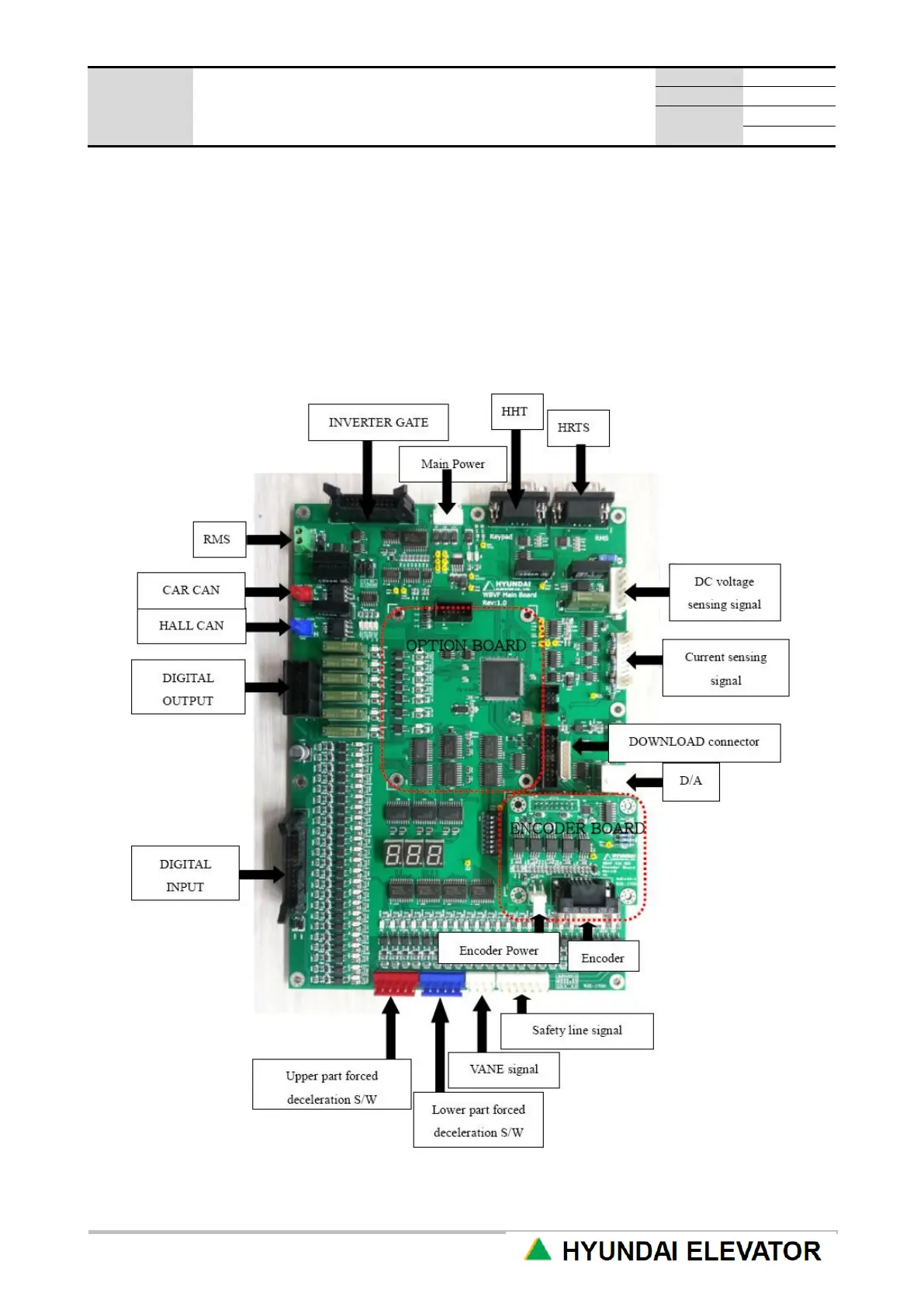

[Figure 6.1 Main Board]
