Hyundai Elevator WBVF - Low Speed Test Drive; Introductions of Machine Room Connection

WBVF
A ． INSTALLATION MANUAL
FOR ELECTRICAL PARTS
Doc. No
Ver.
11.0
Date
2019-04-02
Page
20 / 98
3. Low Speed Test Drive
3.1 Introductions of Machine Room Connection
All wirings should use pipes, and especially have thorough end part finishing works for the pipes.

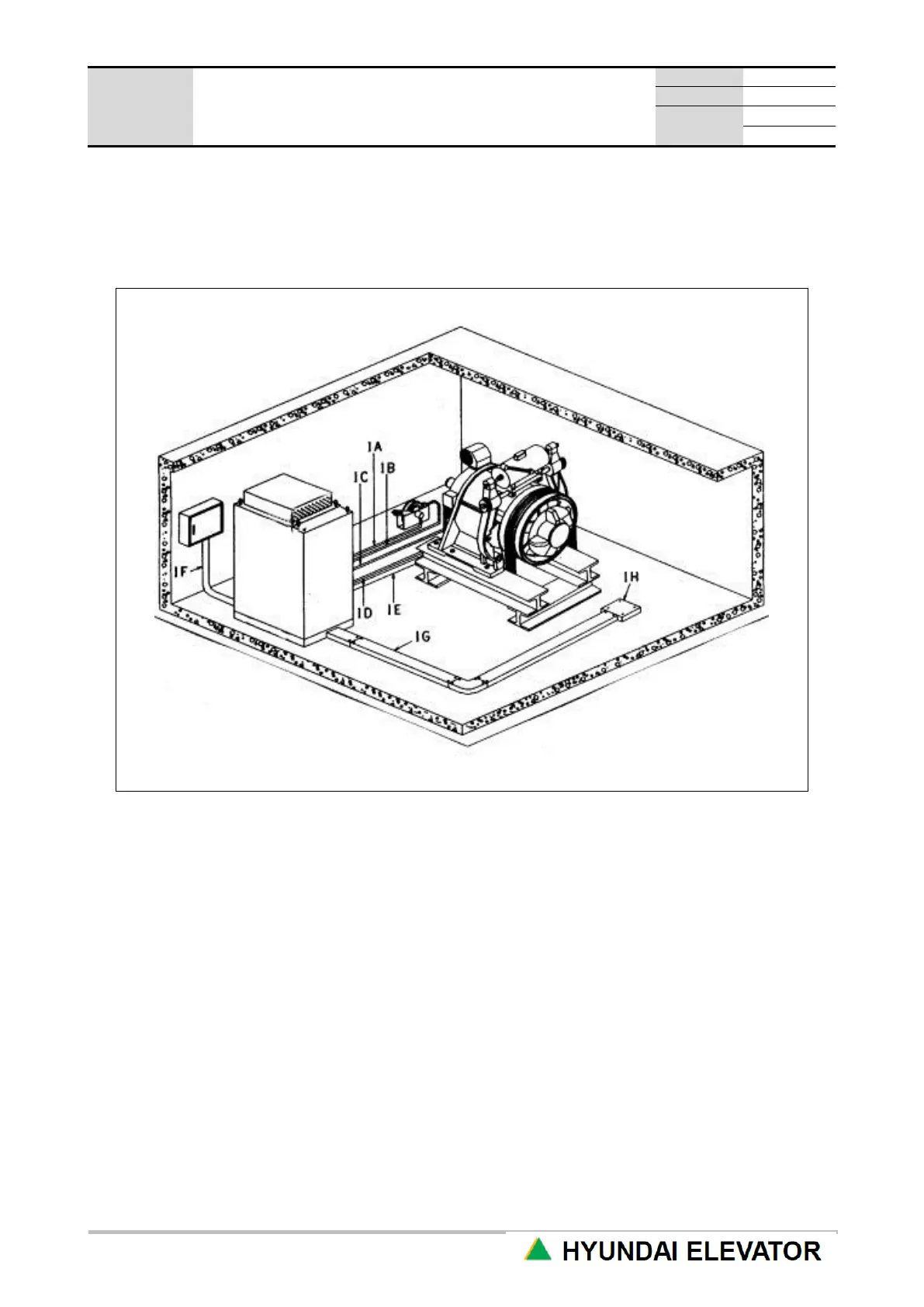

[Figure 3.1 Machine Room Connections and Pipes (Independent Machine Room)]
#1A ; Conduit and flex conduit for governor encoder.
(When governor encoder connection flexible and pipe, governor encoder are applied)
#1B ; Conduit and flex conduit for governor switch.
(Governor switch connection flexible and pipe)
#1C ; Conduit and flex conduit for machine encoder.
(Motor encoder connection flexible and pipe)
#1D ; Conduit and flex conduit for machine brake & blower motor.
(Traction Machine brake and motor FAN connection flexible and pipe)
#1E ; Conduit and flex conduit for machine motor.
(Motor power line connection flexible and pipe)
#1F ; Conduit for disconnect switch box.
(Main power supply pipe)
#1G ; Machine room duct. (Machine room cable duct)
#1H ; Machine room duct stay box. (Machine room cable STAY box)
