2. COP Panel Board
2.1 COP-30D Board

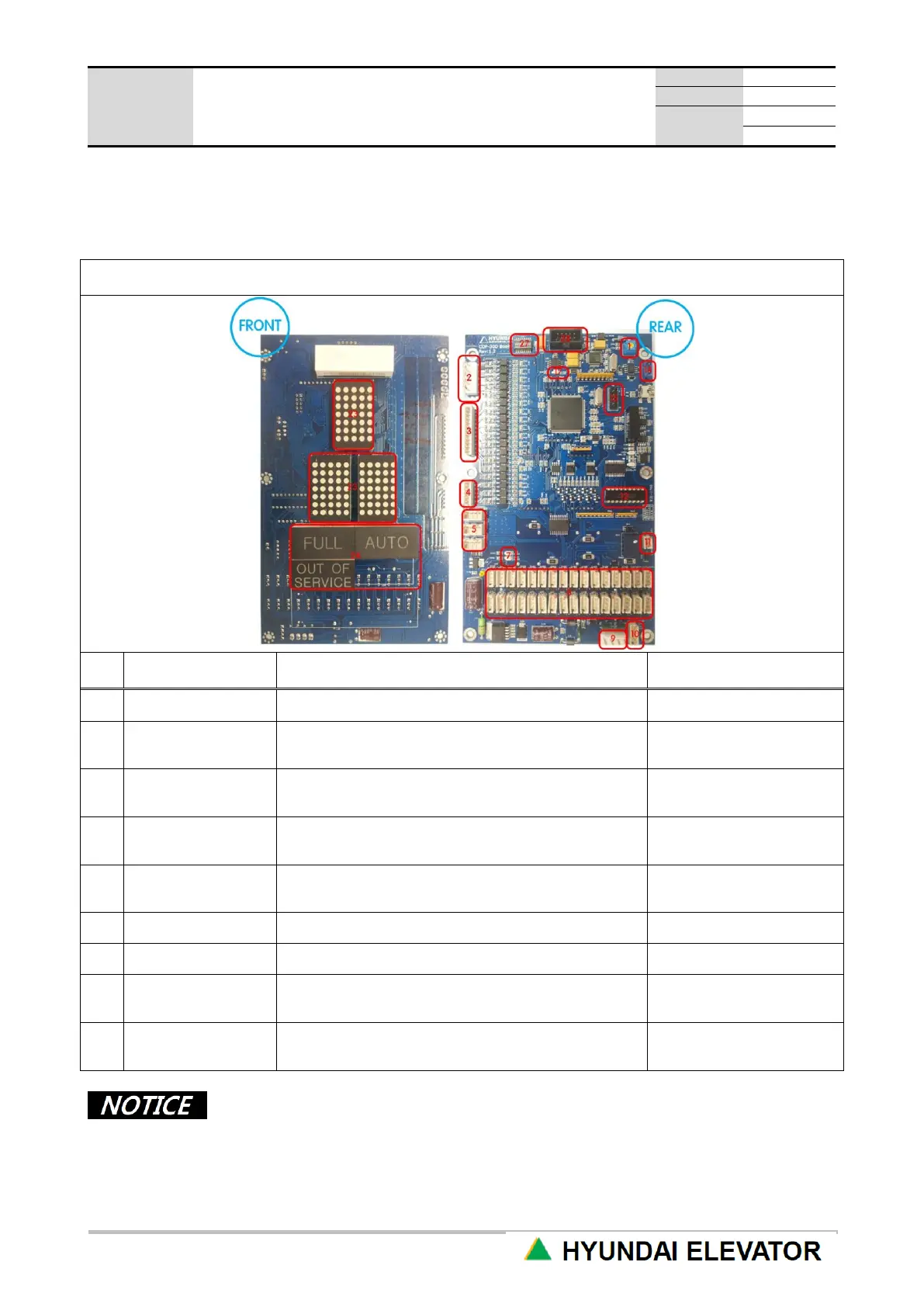

COP Board
No.
Name
Description
Remark
1
Sound adjuster
It adjusts the size of the sound.
VR1
16
FUSE
It is destroyed when power cable is incorrectly
connected.
FC1
5
COP button
expansion
When it is connected to WCOP, button is
expanded to 62nd floor.
CN_C6~8
14
Speaker
connecting part
It is connected to the speaker for voice output.
CN_C5
23
DOT MATRIX
It displays floor and arrow.
It can be attached
and detached.
12
Button drive
It drives button input and lamp output.
U10
15
Program input
It is used for program upgrade.
Need JTAG tool
11
Emergency battery
connecting part
If COP power is not applied, 12VDC battery
will be used.
CN_C11
30
LS Board
connection
When it is connected to the LS Board
CN_C12
• Connect WCOP62 board to No.5 CN_C8 when COP hall button is expanded
(when 62nd floor is
• Connect COP CLOSE / OPEN button to CU63 (DCB) and CU64 (DOB).
