INSTALLATION MANUAL
FOR ELECTRICAL PARTS
7.6 How to operate Pit inspection
7.6.1 Enter into the pit
Before enter into the pit, open the door of the pit reset device with key and turn the switch to INSP.
Position then open the door of the pit.

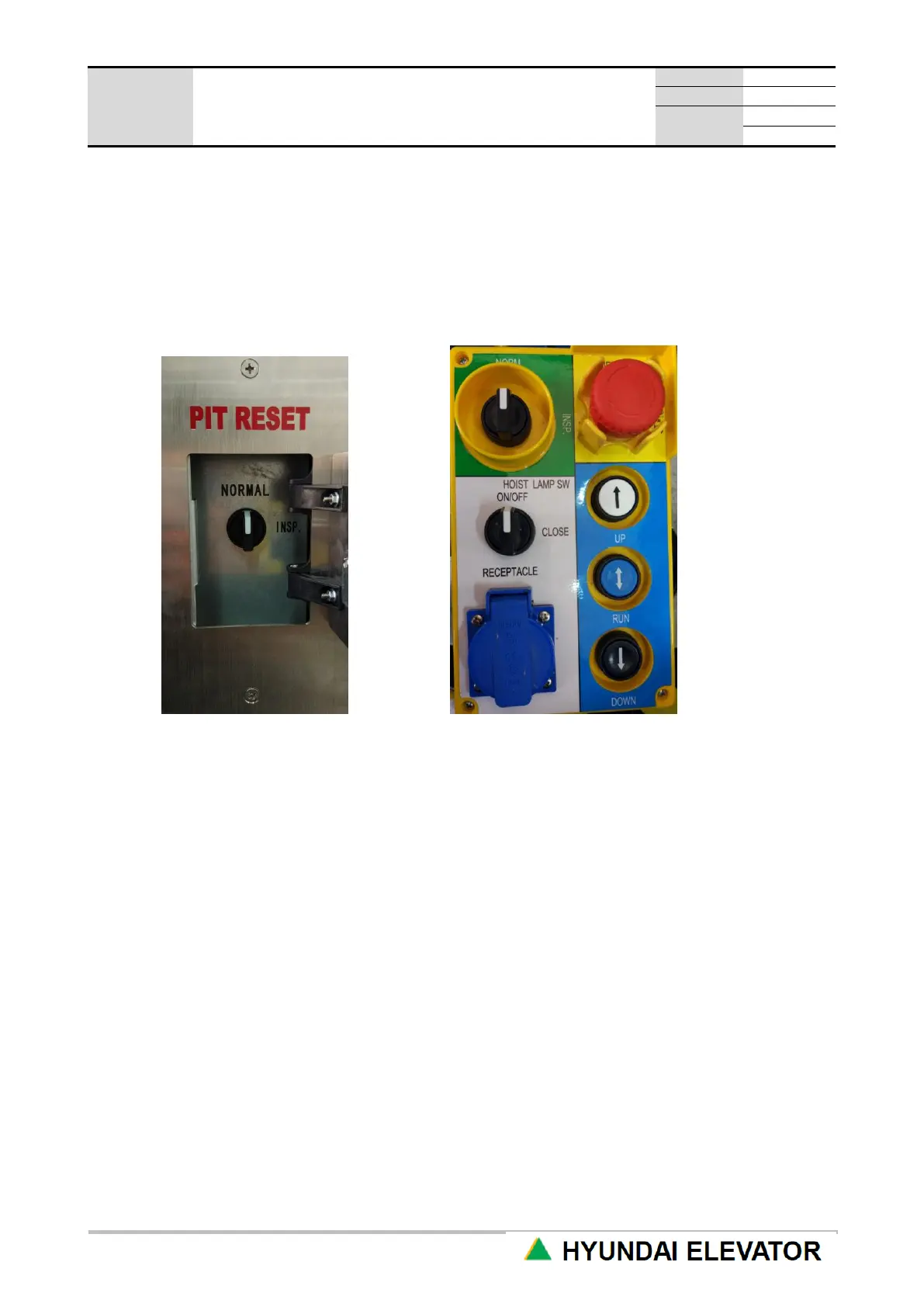

[Figure 7.3 PIT RESET DEVICE] [Figure 7.4 PIT INSPECTION BOX]
After getting into the pit turn on the hoist lamps, then turn the inspection switch to INSP. Position. If any
movement of the car is needed press RUN button first then press UP/SOWN button. After operation
release UP/DOWN button first then release RUN button till traction machine is stopped.
7.6.2 Getting out from the pit
After finish the job in the pit, turn the inspection switch to NORMAL position ,then turn off the hoist lamps.
Getting out from the pit turn the pit reset switch to NORMAL position and lock the door of pit reset
device.
7.7 How to operate Door Bypass Function
In case of car door or landing door connectors malfunction, Door bypass function is needed. Change the
jumper connectors “NORMAL” with “CAR DOOR BYPASS” or ”LANDING DOOR BYPASS” to bypass
car door connectors or landing door connectors. When operate emergency electric operation in control
panel an audible signal and a flashing light under the car will be activated during the movement.
