Appendix C. Description WBVF System Board
1. Control Panel PC Board
• Make sure to turn off Main Power when you replace PCB Board
• The board‟s settings are all set from the factory. Do not reset except for trouble
shooting or replacement.
1.1 Main Board

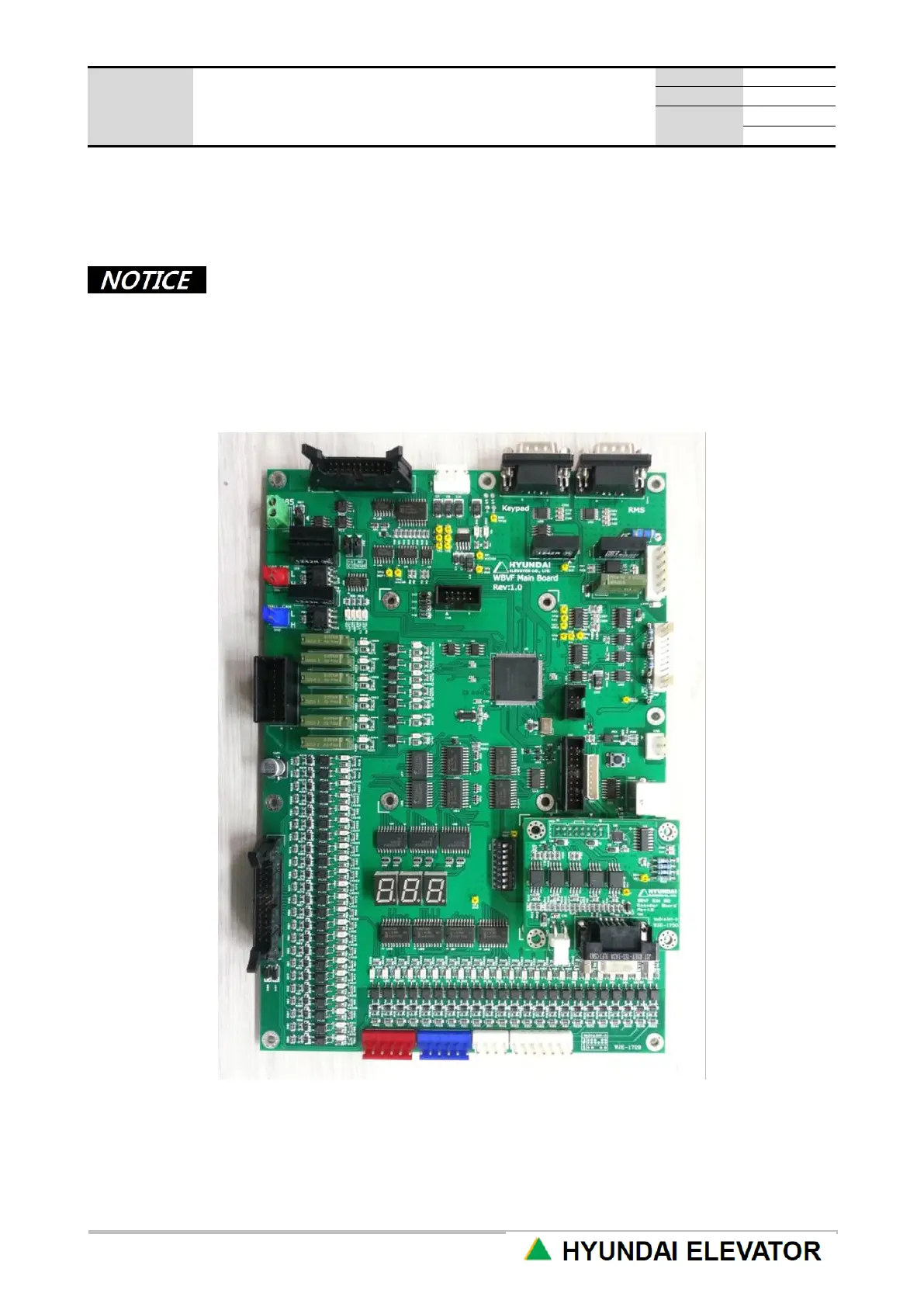

[Figure C.1 Main Board]
