Hyundai Elevator WBVF - High Speed Test Drive; Check List before High Speed Drive; Balance Work; Door Operator Work

WBVF
A ． INSTALLATION MANUAL
FOR ELECTRICAL PARTS
Doc. No
Ver.
11.0
Date
2019-04-02
Page
53 / 98
7. High Speed Test Drive
7.1 Check List before High Speed Drive
When all connections and connecting works are completed, inspection work for high speed operation
should be carried out.
7.1.1 Balance Work
Adjust the counter weight to be exactly at 50% balanced state. When it is 50% balance load in car,
inverter load current become similar during UP/DOWN operation the inverter load current becomes
uniform. The inverter load current is MONITOR → BASIC → INV CURRENT of HHT menu.
7.1.2 Door Operator work
Refer to the Door Controller Manual to adjust the door.
7.1.3 Landing Control Operation Verification
Use the main board landing sensor operation indicator 7-segment or HHT display to check the status of
the landing signal inputs.

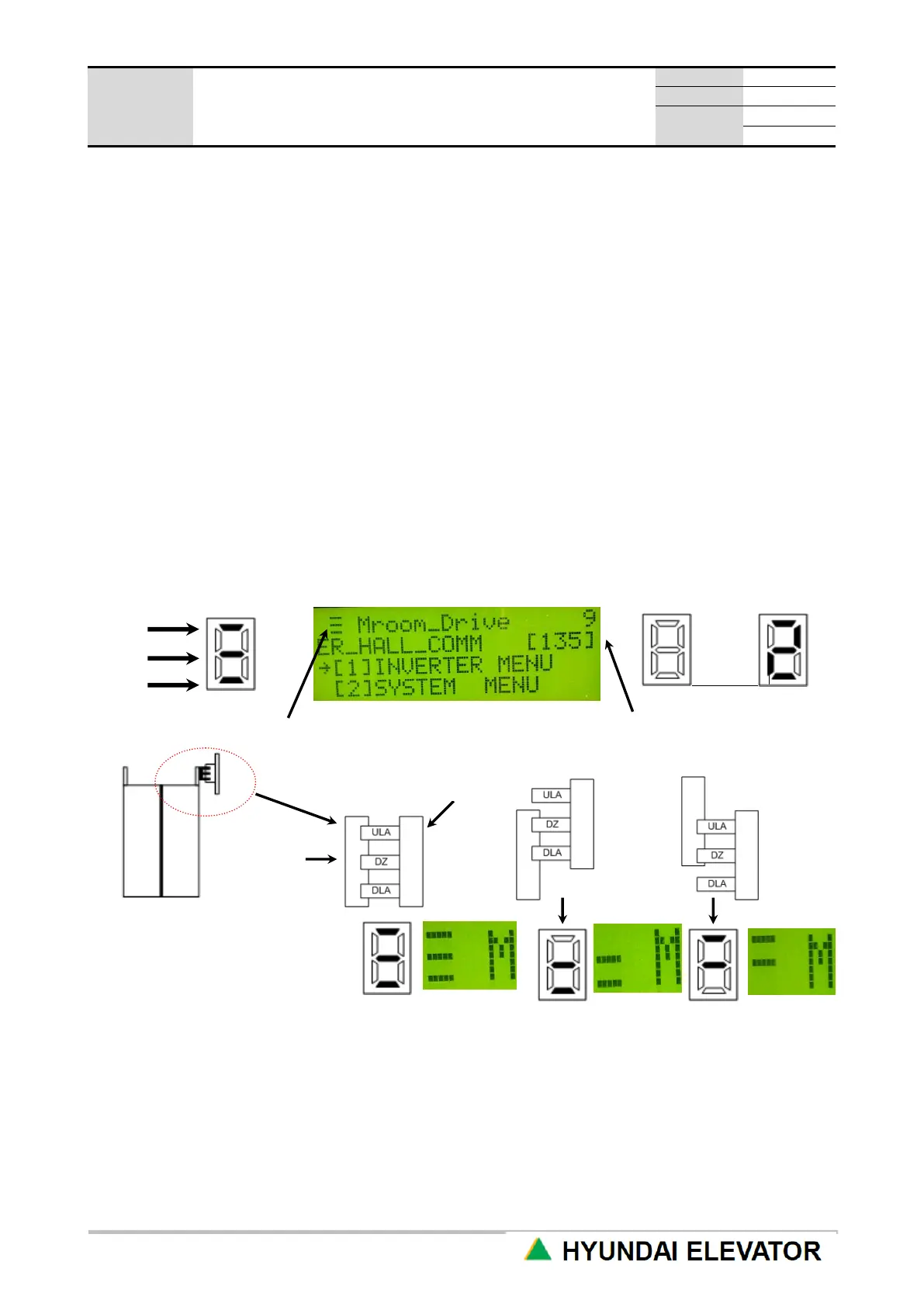

[Figure 7.1 Landing Sensor Information Display]
7.1.4 Final Limit Switch Operation Verification
Check the switch location and operation is correct
ULA
DZ
DLA
Landing sensor signal
Floor information (0~99)
Landing
sensor
signal
Shelter
plate
Correct
landing state
Over the floor
level
Under the
floor level
HHT display
Floor
Information
LCD sensor
