INSTALLATION MANUAL
FOR ELECTRICAL PARTS
2.3 Precautions for Installation
• CAR communication and hall communication are designed as CAN communication method, so you
must thoroughly perform the grounding work in all required parts to prevent malfunction.
• All connections have harnesses, so make sure to check the connector number during the insertion
of the connectors and insert correctly in the designated positions to prevent malfunction and parts
damage by contact defect, wrong insertion, etc.
<During the Installation Using WOS Engineering Method>
• Connect the jumper cable for installation
• Connect Remote controller JIG for installation
• Make sure to test E-STOP, UP/DOWN switch operation of the JIG before the work.
• Make sure to remove the JIG, When the installation work is not performed
The JIG for existing STVF5, STVF7, or other installation work cannot be used.
Do not touch the resistor box at the top of Control Panel to avoid electric shock by
work tools, etc.as in [Figure 2.2], Danger to injury!
Check a CAR junction box carefully embedded CTC board and CTX boards to
avoid board damage by water leakage. [Figure 2.3]
• Use the fixing bracket at the bottom of Control Panel when you want to fix and adjust the height of
Control Panel.

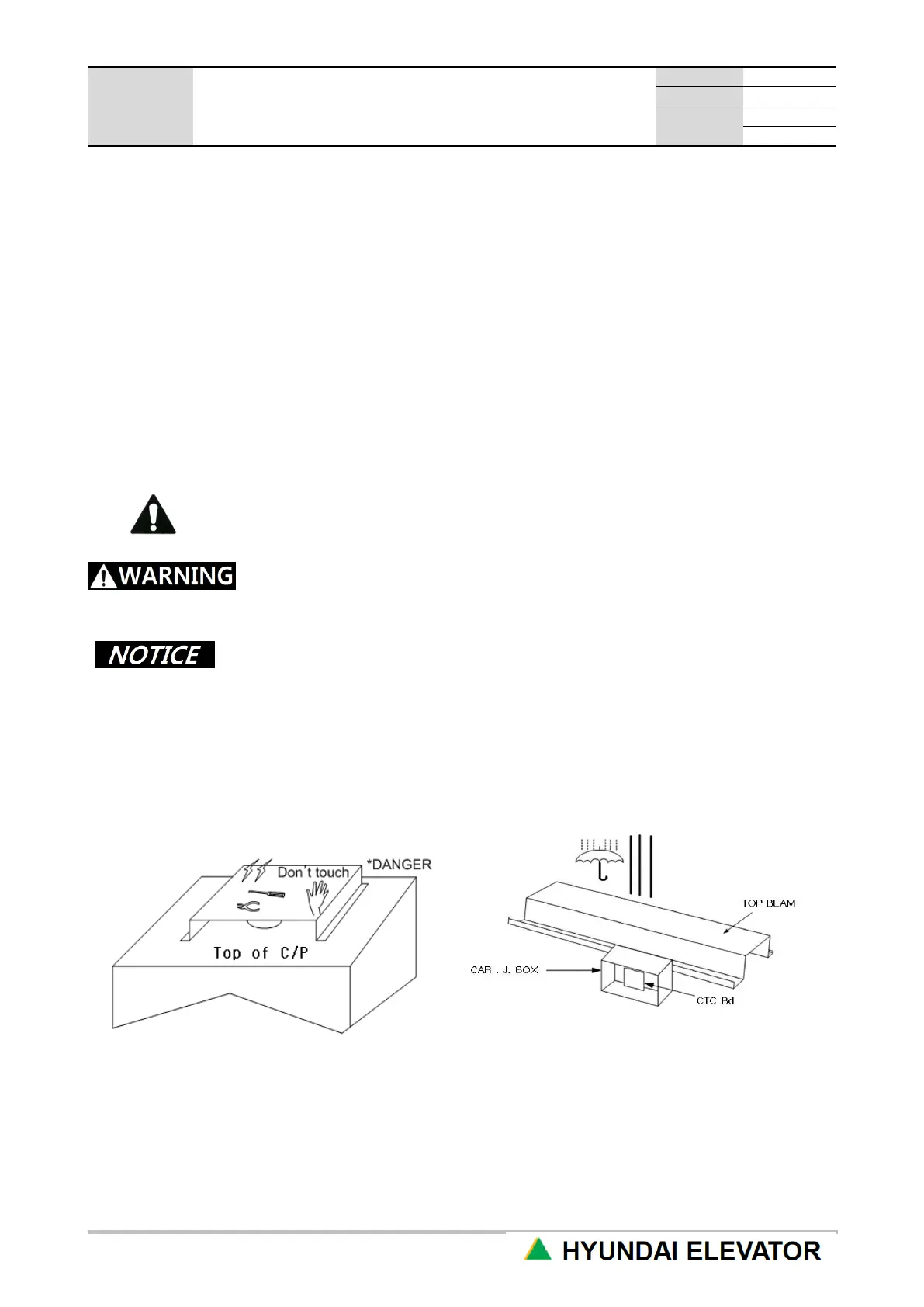

[Figure 2.2] [Figure 2.3]
To Next Page
