1. Introduction of WBVF System
WBVF system combines elevator control and motor drive control into One-Board, and applied 32bit ARM
CORE for the MAIN Board for fast data processing performance. It has RTOS (Real Time Operation
System) for real time control processing ability. It is based on high performance MCU processing speed
to achieve the optimal comfort such as MULTI-PATTERN, direct landing, etc. It is designed to use HHT
exclusive for WBVF for Elevator condition checking and data setting.
Category
Specification
Remark
Model
Passenger, Passenger /Freight
Speed
30m/min ~ 150m/min
Floors
30 floors (Max. 62 floors)
Applied motor
Induction / Synchronizer (Geared, Gearless)
Inverter
General type / Regenerative type
Group Control
4 Cars (Max. 8 Cars)
[Table 1.1 WBVF Applied Specification]
1.1 WBVF Motor Control Block Diagram

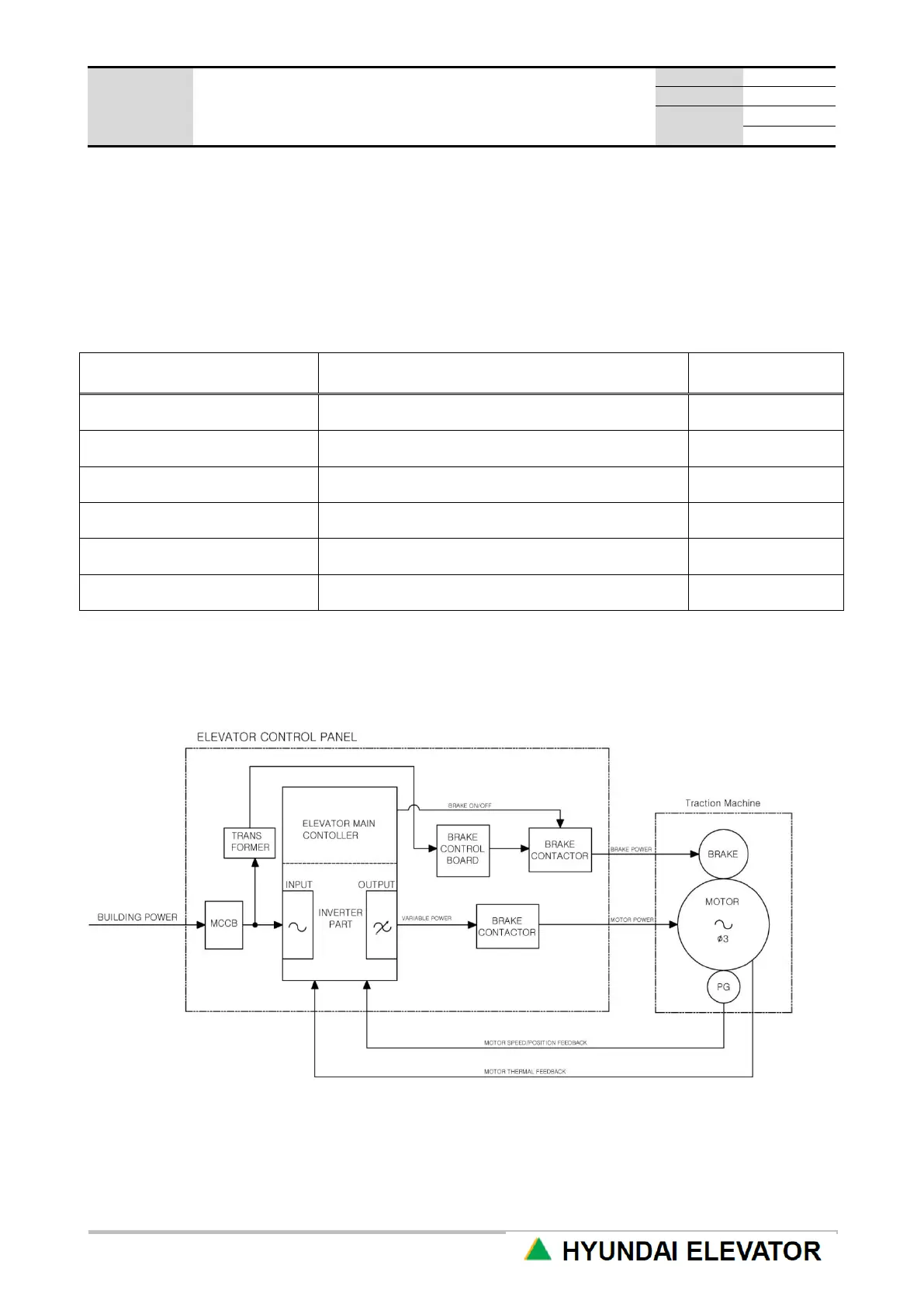

[Figure 1.1 Motor Control Block Diagram]
