INSTALLATION MANUAL
FOR ELECTRICAL PARTS

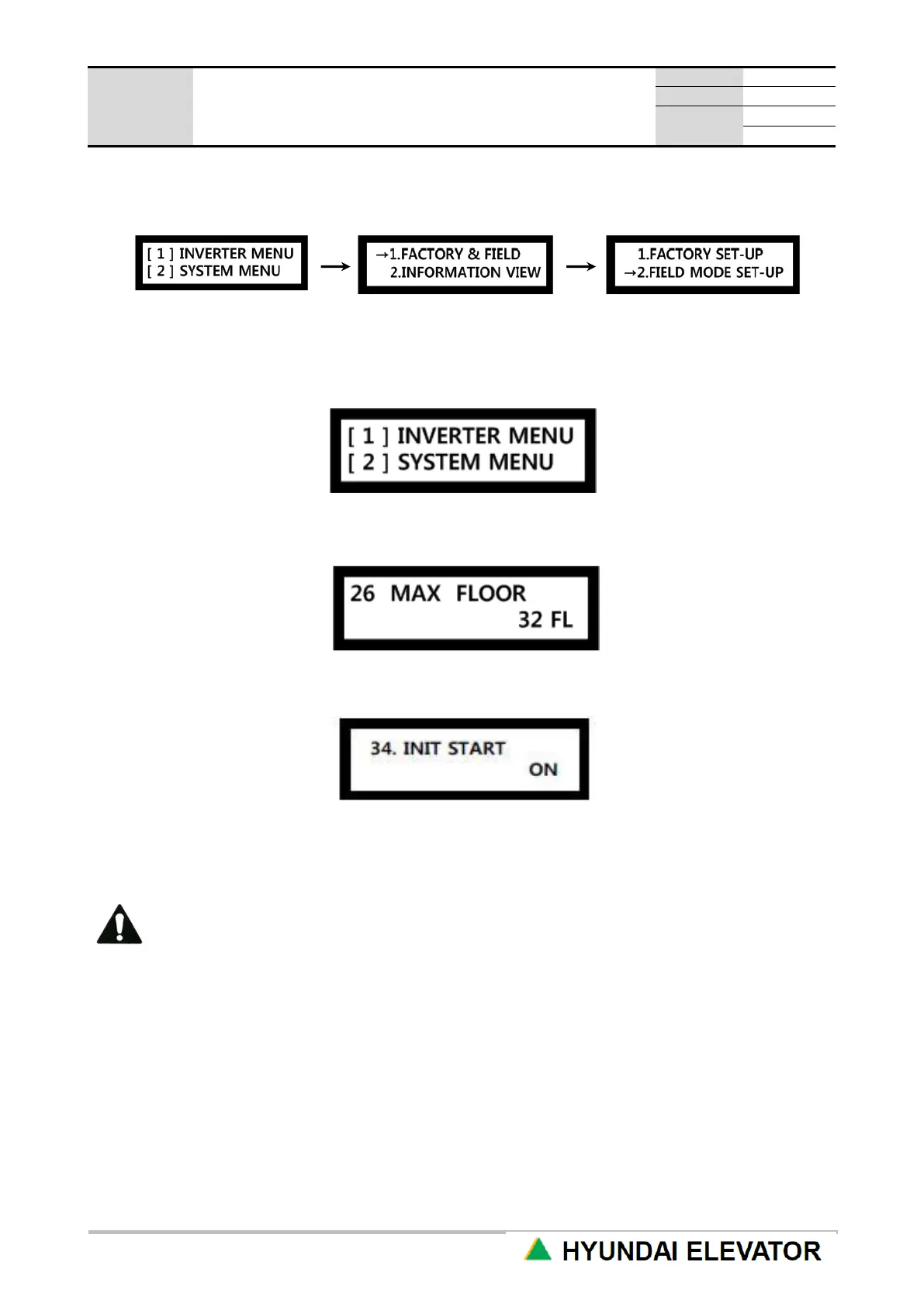

③ Use HHT menu to select the installation automatic operation mode.
From the following HHT initial menu, select [2] SYSTEM MENU.
From FIELD MODE SET-UP menu, select “AUTO DRIVE".
④ Use the main board HHT menu to input the site‟s maximum number of floors data (MAX FLOOR).
In the following HHT initial menu, select [1] INVERTER MENU.
Select 02 PROGRAM → 01 CONTROL → 26 MAX FLOOR menu, and input the site‟s maximum
number of floors.
⑤ Select 02 PROGRAM → 01 CONTROL → 34 INIT START menu, input "1" input, and when you
press ENT key, HHT operation mode is changed to “Initial_Drve". RUN button should be pressed.
⑥ When you operate the control panel RUN ONU switch (press RUN button then press UP button),
initial operation starts.
When the initial operation starts, keep operating RUN switch till the initial operation finished.
• When the initial operation starts, the floor number information and the landing sensor
input status of each floor are displayed on the HHT.
• If the highest floor checking signal (PLUL) is inputted, after the deceleration and correct
landing in the highest floor landing zone, it completes the initial operation. If the highest
floor checking signal (PLUL) is not inputted, deceleration is not done, and it causes
elevator accident. Therefore, for the initial operation, make sure to check the highest floor
checking signal (PLUL) location and the existence of the input.
• After completing the initial operation, if there is an error in the highest floor information,
the number of the landing VANEs, etc., the initial operation error “ER_INITIAL" occurs.
To Next Page
