Pre-11
(3) Installation
To prevent electric shock, be sure to connect the PE terminal of the SSEL controller and the protective
ground (grounding plate) of the control panel.
(4) Earth Leakage Breaker
Install an earth leakage breaker (of type B* (RCD) on the primary side of the SSEL controller.
* Note) Type A: AC or pulse can be detected/Type B: Both AC/DC can be detected.
(5) Noise filter
Install a noise filter in the AC power line. An appropriate noise filter to be installed varies depending on the
input voltage specification.
Supplier: Densei-Lambda
100-VAC input
Model: MC1220
200-VAC input
Model: MC1210

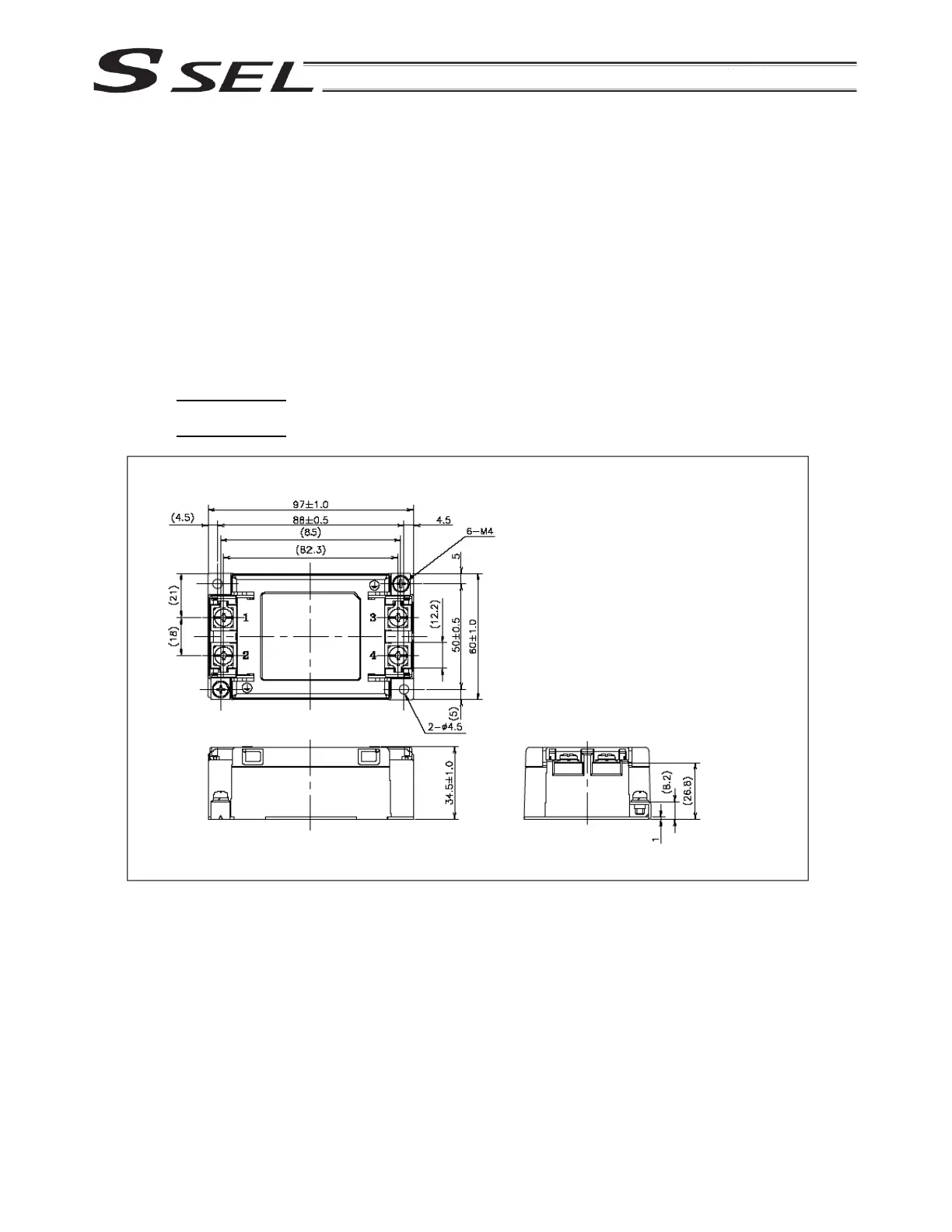

[Fig. 1] External View of Noise Filter
(Unit: mm)
Rated nameplate
To Next Page
