(6) Clamp Filter A
Install the following clamp filter along the AC motor power cable and encoder cable.
Supplier: TDK
Model: ZCAT3035-1330
Shape/Dimensions (mm)
A: 39  1
B: 34  1
C: 13  1
D: 30  1

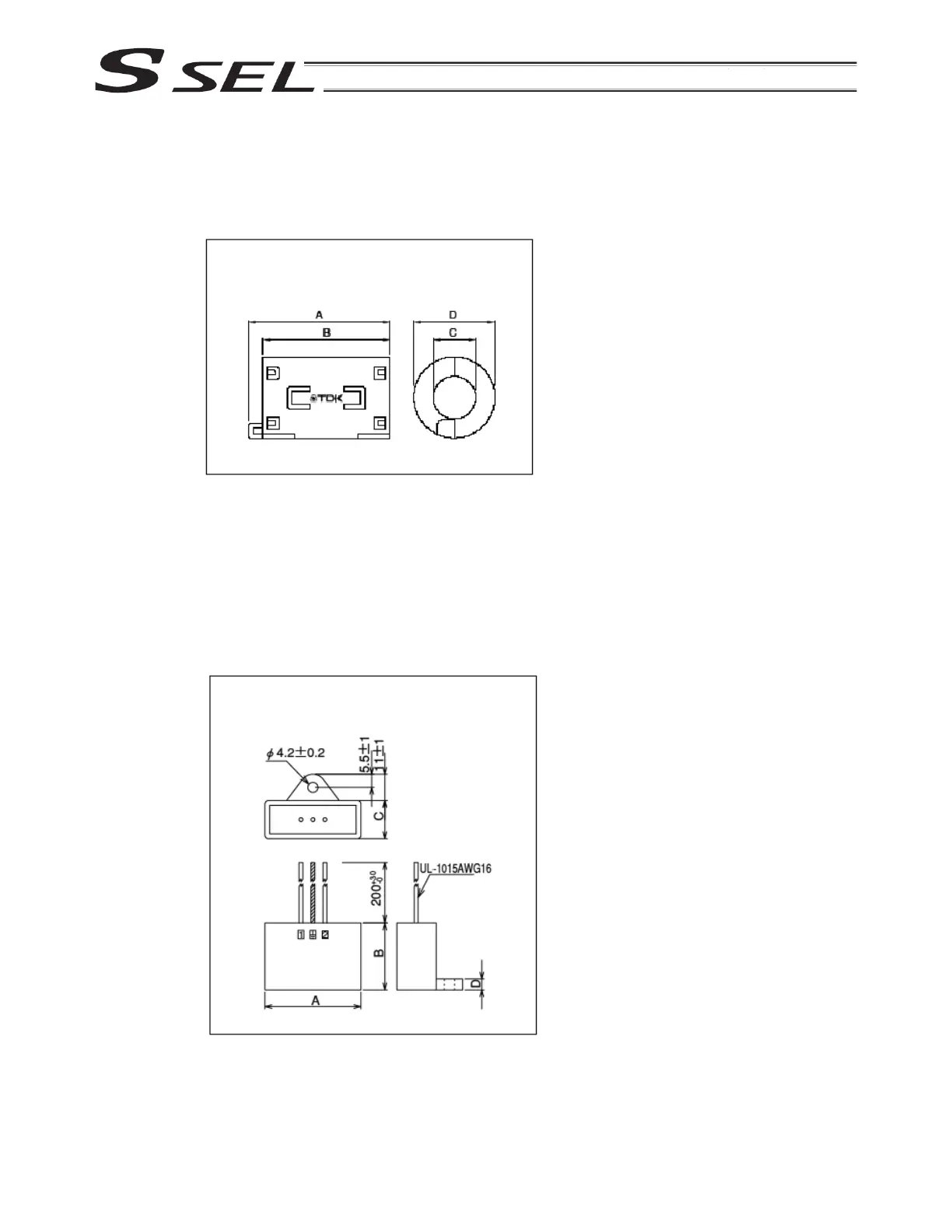

[Fig. 2] External View of Clamp Filter
(7) Surge Absorber
Install a surge absorber on the primary side of the noise filter to protect the equipment from surge noise that
may generate due to lightning.
Supplier: Okaya Electric Industries
Model: RAV-781BWZ-2A
[Fig. 3] External View of Surge Absorber
Shape/Dimensions
ZCAT Type
BWZ series
