Part 1 Installation Chapter 8 How to Perform An Absolute Encoder Reset
(Absolute Specification)
Part 1 Installation

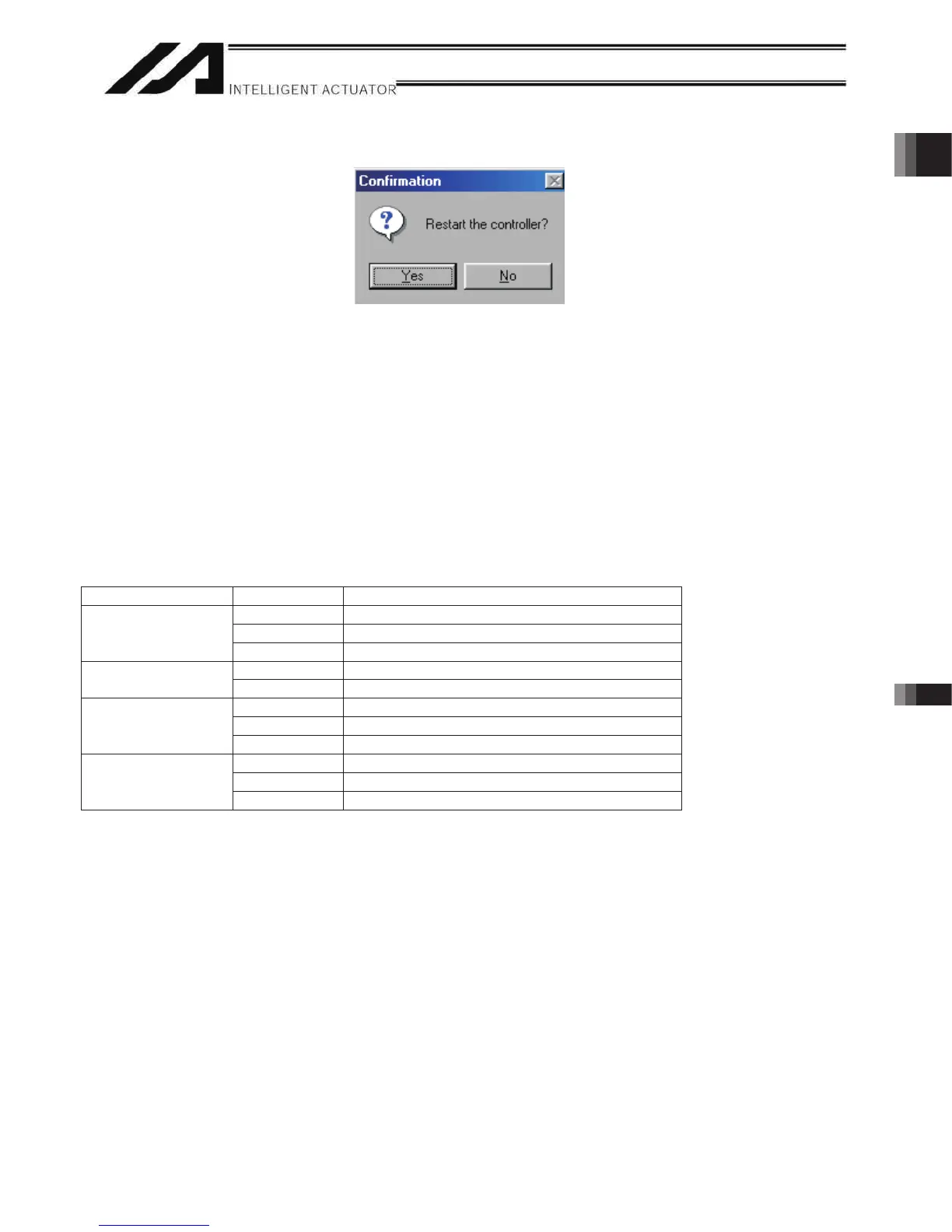

(15) When the [Confirmation] dialog box is displayed, click the [Yes] button and restart the controller.
(Note) Commencing the operation without first executing a software reset or reconnecting the power may generate
the following errors:
Error No. C70: ABS coordinate non-confirmation error
Error No. C6F: Home-return incomplete error
(16) If no other error is present, the controller’s 7-segment LED display will show “rdy.”
(17) This completes the absolute encoder reset.
To redo the absolute encoder reset, exit the XSEL PC software and repeat the procedure from the beginning.
(Caution) On certain models, the current value may not return to “0” mm after an absolute encoder reset.
However, this does not indicate any abnormality. Refer to the model list below for the coordinates to
take effect after an absolute encoder reset.
Model Lead Current position after absolute encoder reset
04
18
RCS2-SA7C (R)
361
5.0-6
RCS2-SS7C (R)
121
001
5.202
RCS2-SS8C (R)
503
04
08
RCS2-RA5C (R)
261
* On all other models, the current value will return to “0” after an absolute encoder reset.
